Metalcraft 142-2-19 Assembly Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

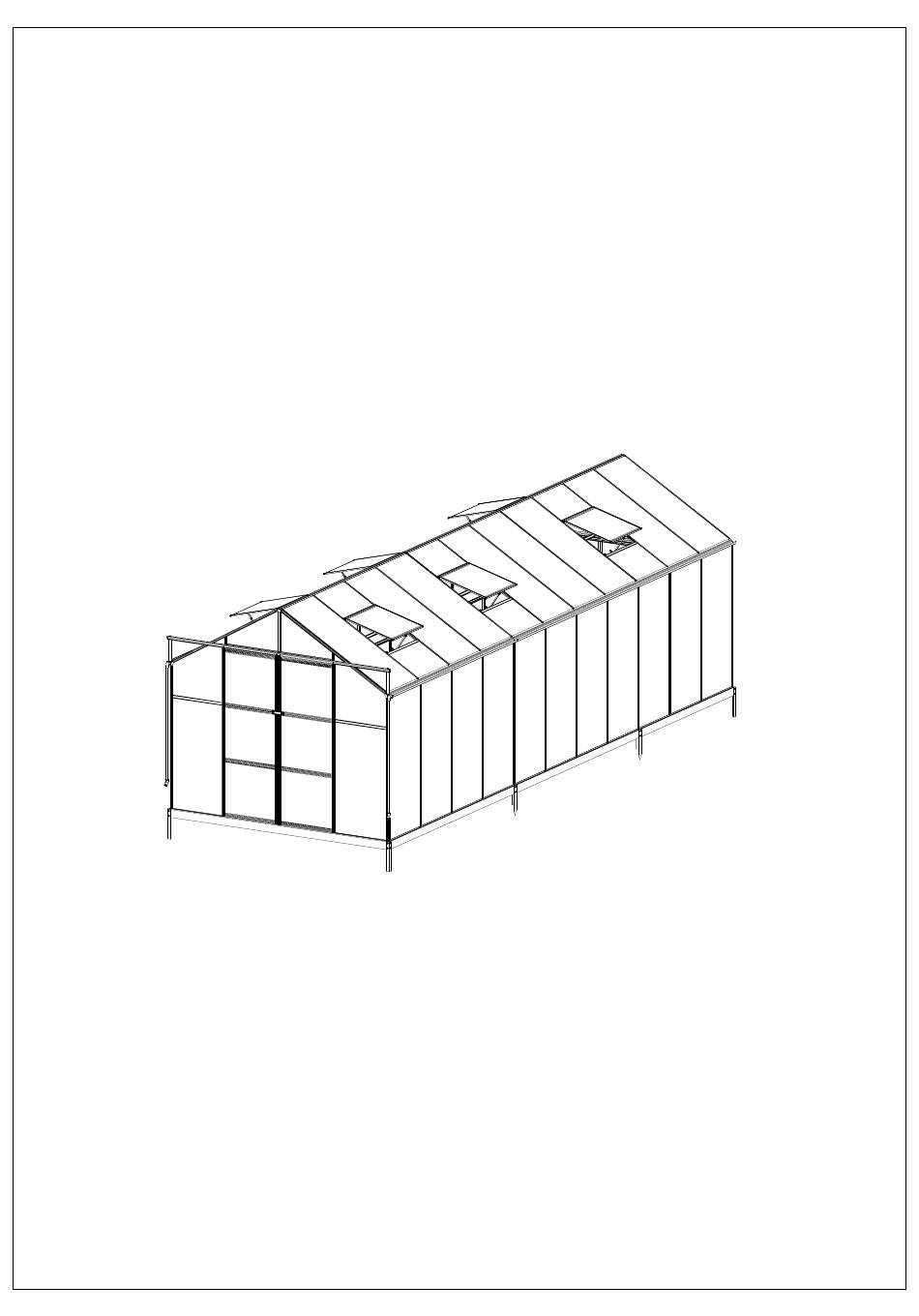

Assembly instruction
Model: 142-2-19 / 142-2-31
Please ready carefully before assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the 142-2-19 and is the answer not in the manual?

Questions and answers

Related Manuals for Metalcraft 142-2-19

Summary of Contents for Metalcraft 142-2-19

  • Page 1 Assembly instruction Model: 142-2-19 / 142-2-31 Please ready carefully before assembly...
  • Page 2 CONTENTS 1. Assembly Advice ..............Page 1 2. Product Features ..............Page 2 3. Parts List ................Page 3 4. Door Assembly ..............Page 4 - 5 5. Roof Vent Assembly ............Page 6 - 7 6. Base Assembly ..............Page 8 7. Framework & Glazing Assembly ........Page 9 - 22...
  • Page 3 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least two people. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.

  • Page 4: Functions And Features

    Functions and Features: 1. Base anchor brackets are included as standard with expanding bolts to ensure a secure fixing into concrete or paving. Alternatively, you can use the brackets to fix into a timber base with wood screws (not provided). Steel bar/Lawn land Expansion bolt in concrete...
  • Page 5 PART PART PART WindowsX6 L01A L01B J02R NO. QTY. Part L01C J02L L11A L01D J03R L12A L02A J03L L02B L02C L02D L02E L02F 6 windows are standard. If your order contains more L02G please go to page 7. L03A Door L03B W011 L04A...
  • Page 6 Part Part QTY. QTY. L18A L16A L16B L18A L16A Ø4X25 L16B Left Door L18A...

  • Page 7: Right Door

    Part Part QTY. QTY. L18A L18B L16B L18B L16B Ø4X25 L16B Right Door L18A...
  • Page 8 Part NO. QTY. Part NO. QTY. L11A Windows Assembly L12A Ø4X16D Step 1 Ø4X10 M4.2X16 Step 2 Step 3...
  • Page 9 L12A L11A L11A L12A L11A is factory fitted to L12A already Attention: 6 windows are standard. If your order contains more windows, the extra windows are packed separately in the wooden boxes with the glass. Instruction manual is included in that carton box too.
  • Page 10 PART About 100mm distance between two Z04 GMDJ-101 GMDJ-102 GMDJ-103 M6X12 FRONT BACK M4.2X16 142-2-19 / 142-2-31 Fix the base before assembly the greenhouse. This is the way to fix the base. DJ101 DJ103 DJ102 L06D L06D L06C L05D L05D...
  • Page 11 142-2-19 / 142-2-31 PART Attention: If glass is chosen, please seal it with rubber(J11) provided after the whole assembly is finished. Rubber is not provided if you choose polycarbonate sheet as glazing panel.
  • Page 12 PART L01A L01B L01B L01A L03A L03A L03A L08C L01A L03A L08D L03A L01B M4.2X16 M6X12 L03A L01A&B 1. Fix the glazing bars (2 x L01A, 2 x L01B and 4 x L03A) to the cills (L10, L08C & L08D) with S01 &...
  • Page 13 PART 1. Fix 2 x L07C & 4 x L07D eaves to L01A/L01B and L03A, using S01 & M01. L07C 2. Fix 2 x L23C & 4 x L23D to L01A/L01B and L03A, using S01 & M01. L07D L07C L23C L23D L07D M6X12...
  • Page 14 PART L02C L02G L02F L02D L02E L02E L02F L02G L02C L23A L02D L23D L05A M6X12 L02C&D&E&F&G Fix L02C & L02D to cill L10; L02E, L02F and L02G to cill L08D, using S01 & M01. L02C&D&E&F L02G Slide 2 * S01 into L02G bolt channel.
  • Page 15 PART L02A L02A M6X12 Fix L02A (16pcs) to L08C/L08D and L07C/L07D using S01 & M01. L02A L02A L07D Slide 2 bolts (S01) into each L02A bolt channel. One is to fix L23D, the other is to be used later for fixing L05B...
  • Page 16 PART L04A L04A M6X12 L04A L04A L04A S01X2 Fix bracings L04A (6pcs) as above, using S01 & M01. L04A L04A L04A L04A Slide the glazing panel Y6 into positions...
  • Page 17 PART L04B L13A M6X12 L04B L13A L02E L02C L02D L02F L13A L13A L04B Preload the bolts S01 & M01 Fix L13A to L02C & L02D to L02E & L02F before with S01 & M01. Slide 2*S01 into the channel of L04B S01X2 L04B Y5 Y13...
  • Page 18 PART L01C L01D L01D L01C M6X12 L01C L01D L01C&D L01C&D 1. Preload S01 & M01 on L01C and L01D before fixing L01C&D them to L01A/L01B. See figue 1 & 2. 2. Bolt L01C and L01D with plate W01, using S01 & M01 preloaded.
  • Page 19 PART L03B L23E L03B L03B M6X12 L03B Fix plates W01 (2pcs) to L03A & L03B using S01 & M01. L03B Fix glazing bars L03B (4pcs) L07D to the eaves and the ridge profiles using S01 & M01 L07C&D L03A&B L23E Fix plates W01 (2pcs) Fix L23E(12pcs) to L03A to the two L03B using...
  • Page 20 PART L06C L06C L06D L06D L02B L06D M6X12 Bolt the ridge L06C (1pc) & L06D (2pcs) to L01C, L01D and L03B, using S01 & M01. L06C&D L06D L02B L02B Fix glazing bars L02B (16pcs) to the eaves and the ridge L02B profiles with S01 &...
  • Page 21 PART L23C L23D L23C L05B L05B L23D M6X12 M4.2X16 Bolt L05B (24 pcs) to L02A & L02B using the S01 bolt placed in the bolt channel earlier. L02B L02A L05B L05B L23C&D L23D Bolt L23C/L23D to Fix W07 to L06C/L06D Bolt L23CL23D to L02B L01C/L01D &...
  • Page 22 Firstly, slide the PART glazing panel Y9 L04A into the channel of L02B/L03B L04A WINDOW WINDOW L04A WINDOW L04A WINDOW M6X12 L04A L04A L02B&L03B L04A S01X4 Slide 4 bolts (S01) into each L04A bolt channel. 2 to be fixed with W08, and another 2 to be fixed with L02B/L03B.
  • Page 23 PART L09C After the panels and windows are in position, L09D put some silicone sealant around to avoid leaking water. D00R-R D00R-L W011 M6X12 M6X20 L09C L09D L09D DOOR-L DOOR-R Slide 5 bolts (2*S01 and 3*S02) into L14 bolt L09C/L09D channel.
  • Page 24 PART L23F J02R J02L J03L J03R L23F J03L J03R J02L J02R M4.2X16 Ø4X16D Ø4X10 J03L/R L23F Fix L23F (2pcs), one end to L14 Fix the cover caps (J03L/R) Fix the cover caps J01 and the other end to L09C/L09D carefully with Z03. into the ridge profile through J02L/R, using the S01 preloaded and M01.

This manual is also suitable for:

142-2-31
