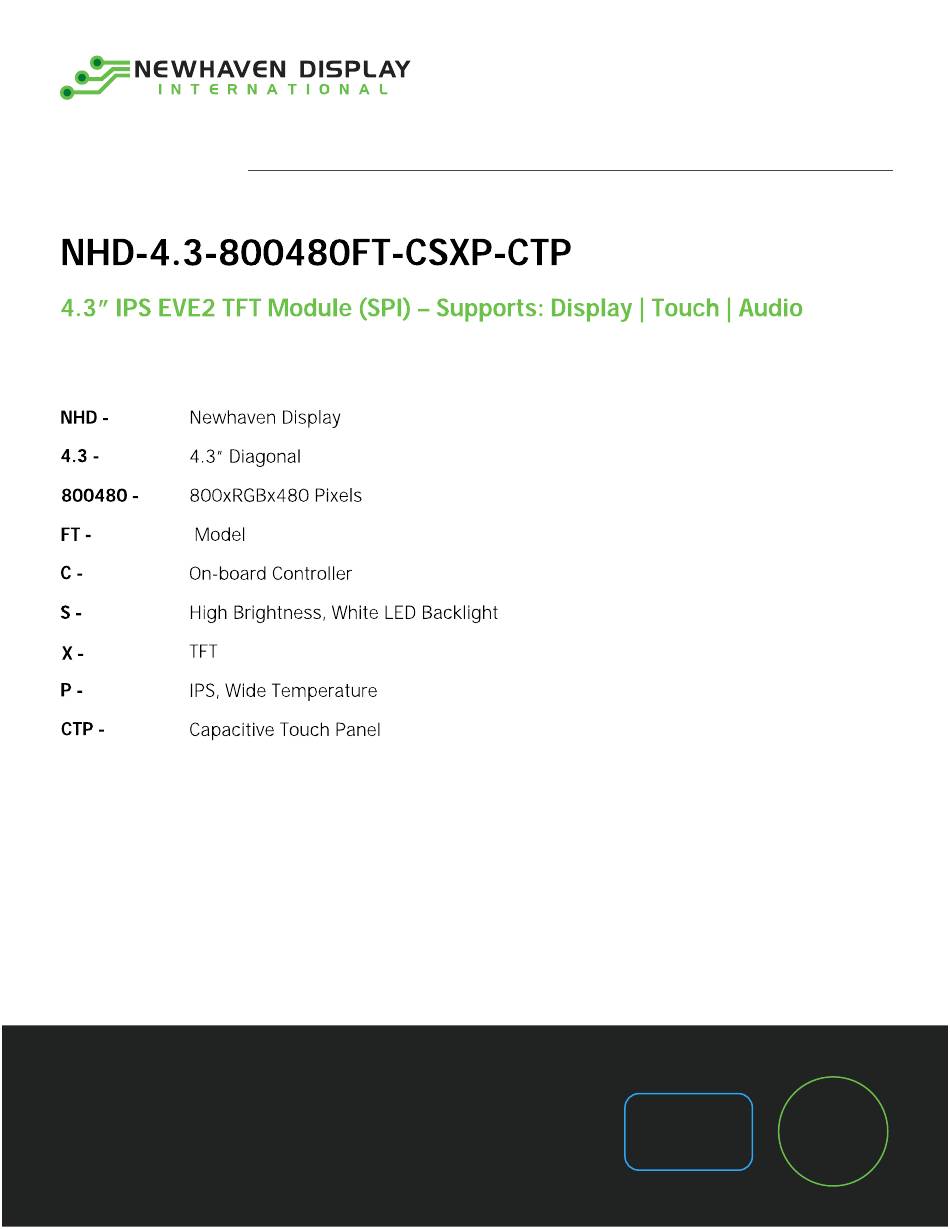

- Page 1 Product Specification Newhaven Display International, Inc. RoHS 2661 Galvin Court, Elgin, IL 60124 USA REACH Ph: 847.844.8795 | Fx: 847.844.8796 Compliant Compliant www.newhavendisplay.com...
-
Page 2: Table Of Contents
Table of Contents Document Revision History .......................... 3 Mechanical Drawing ............................ 4 Schematic ..............................5 Pin Description ............................6 Controller Information ..........................6 Display Information ............................. 6 Arduino Application ............................. 6 Electrical Characteristics ..........................7 Optical Characteristics ..........................7 Capacitive Touch Panel Material Characteristics ................... 7 Backlight Driver Configuration ........................ - Page 3 Additional Resources ➢ Support Forum: https://support.newhavendisplay.com/hc/en-us/community/topics ➢ GitHub: https://github.com/newhavendisplay ➢ Example Code: https://support.newhavendisplay.com/hc/en-us/categories/4409527834135-Example-Code/ ➢ Knowledge Center: https://www.newhavendisplay.com/knowledge_center.html ➢ Quality Center: https://www.newhavendisplay.com/quality_center.html ➢ Precautions for using LCDs/LCMs: https://www.newhavendisplay.com/specs/precautions.pdf ➢ Warranty / Terms & Conditions: https://www.newhavendisplay.com/terms.html...
-
Page 4: Document Revision History
Document Revision History Revision Date Description Changed By 11/26/2019 Initial Release 05/18/2020 Updated Static Electricity Test Condition 01/14/2022 FT5426 IC Version Update 08/26/2022 Updated Backlight PWM Frequency Range, Updated Schematic to show new LED driver IC and auxiliary components... -
Page 5: Mechanical Drawing
Take special care when handling this area of the display module to make sure these connec�ons are never strained nor creased. This drawing is solely the property of Newhaven Display International, Inc. The information it contains is not to be disclosed, reproduced or copied in... -
Page 6: Schematic
SGM3766YTN5G SCHEMATIC/PART NUMBER: REVISION: NHD-4.3C-FT813 Controller Board SIZE: DRAWN BY: CHECKED BY: C. Johnson C. Johnson SHEET: DRAWN DATE: CHECKED DATE: 1 of 1 08/26/2022 08/26/2022 Released under the Creative Commons Attribution Share-Alike 4.0 License http://creativecommons.org/licenses/by-sa/4.0... -
Page 7: Pin Description
Pin Description Pin No. Symbol External Connection Function Description Power Supply Input Voltage for TFT and FT81x (3.3V) Power Supply Ground SPI Clock (Input) MISO/IO1 SPI MISO (Output) / Quad-SPI mode: SPI data line 1 MOSI/IO0 SPI MOSI (Input) / Quad-SPI mode: SPI data line 0 SPI Chip Select (Input), Active LOW /INT Interrupt to host (Output), Active LOW... -
Page 8: Electrical Characteristics
Electrical Characteristics Item Symbol Condition Min. Typ. Max. Unit Operating Temperature Range Absolute Max ⁰C Storage Temperature Range Absolute Max ⁰C Supply Voltage Supply Current = 3.3V “H” Level Input “L” Level Input “H” Level Output -0.4 “L” Level Output Supply Voltage for LED Backlight Driver = 3.3V Supply Current for LED Backlight Driver... -
Page 9: Ft81X Block Diagram
FT81x Block Diagram FT81x with EVE (Embedded Video Engine) technology simplifies the system architecture for advanced Human Machine Interfaces (HMIs) by providing support for display, touch, and audio as well as an object oriented architecture approach that extends from display creation to the rendering of the graphics. Serial Host Interface By default the SPI slave operates in the SINGLE channel mode with MOSI as input from the master and MISO as output to the master. -
Page 10: Tft Timing Characteristics
TFT Timing Characteristics Shown below are the FT81x registers that control the TFT’s timing (clock and sync signals), along with the values recommended to use for this EVE2 TFT Module: Horizontal Timing Vertical Timing Clock Settings Register Value Register Value Register Value REG_HSIZE... -
Page 11: Touch-Screen Engine
Touch-Screen Engine The Capacitive Touch Screen Engine (CTSE) of the FT813 communicates with the external Capacitive Touch Panel Module (CTPM) through an I2C interface. The CTPM will assert its interrupt line when there is a touch detected. Upon detecting CTP_INT_N line active, the FT813 will read the touch data through I2C. Up to 5 touches can be reported and stored in FT813 registers. -
Page 12: Audio Filter And Amplifier Reference Circuit
Audio Filter and Amplifier Reference Circuit This is a reference schematic from FTDI, which can be used to successfully filter and amplify the audio signals coming from the NHD EVE2 TFT Module. -
Page 13: Additional Information/Resources
Additional Information/Resources FT81x Datasheet: FTDI/Bridgetek FT81x Embedded Video Engine (EVE2) https://support.newhavendisplay.com/hc/en-us/articles/6963170802839-FT81x Programmers Guide: FT81x Series Programmers Guide http://www.ftdichip.com/Support/Documents/ProgramGuides/FT81X_Series_Programmer_Guide.pdf NHD GitHub Page: NHD EVE2 TFT Module Example Projects https://github.com/NewhavenDisplay/EVE2-TFT-Modules EVE2 Software Examples: FT81x Example Projects http://www.ftdichip.com/Support/SoftwareExamples/FT800_Projects.htm FTDI/Bridgetek Utilities: Screen Designer http://www.ftdichip.com/Support/Utilities.htm#ESD3 Image Converters http://www.ftdichip.com/Support/Utilities.htm#EVEImageConverters Audio Converter... -
Page 14: Quality Information
Quality Information Test Item Content of Test Test Condition Note High Temperature storage Endurance test applying the high storage +80⁰C , 96hrs temperature for a long time. Low Temperature storage Endurance test applying the low storage -30⁰C , 96hrs temperature for a long time. High Temperature Endurance test applying the electric stress +70⁰C , 96hrs... - Page 15 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Newhaven Display NHD-4.3-800480FT-CSXP-CTP...
