ZBP 2000 Mobile Energy Storage Power Supply
User Operating Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZBP 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas Copco ZBP 2000

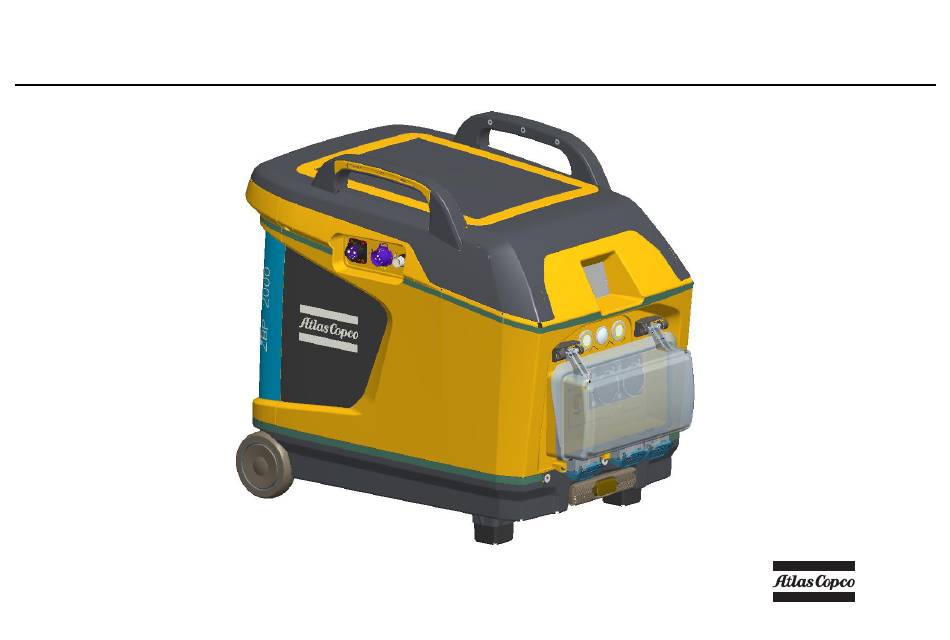

  • Page 1 ZBP 2000 Mobile Energy Storage Power Supply User Operating Manual...
  • Page 2 Please read this manual carefully before using the product and keep it properly. Product Introduction Display Screen Handle Parallel Port Main switch Grid Charging Port AC Output Switch Alarm Indicator Overload Protector AC/DC Output Socket Rubber Mat Drawbar Wheels...
  • Page 3 Product Introduction Air outlet USB Port Air inlet Solar Panel Input Output Socket...
  • Page 4: Product Introduction

    Product Introduction AC Output Abnormal Status Alarm Indicator Indication Area Indication Area Battery Remaining Main Switch AC Output Switch Time Indication Area Power Display Area AC Output Socket Overload Protector Output Switch Output TYPE-C Solar Output Panel Input...
  • Page 5 Accessories List Item Charging Cable Manual Picture Quantity 1 PC 1 PC...
  • Page 6 Safety precautions I. Safety Notes: 1. Do not use this product near heat sources, such as fire or electric ovens ! 2. Do not use use this product upright, it will cause the air tunnel towards the ground blocking the air inlet and outlet ! 3.
  • Page 7 Product Specification Parameters 1. General Parameters: 3. Output: Capacity 2KWh Output voltage/Frequency 110Vac/50Hz±1% ≈ 4h Charging time Rated current ≈37KG Overall weight Output socket Battery type Lithium iron phosphate Parallel port socket Dimension 570x367x478 mm Max qty of parallelled units 5 Pcs Protection rating IK09 / IP65...
  • Page 8: Overload Capacity

    Product Specification Parameters 5. Working Environment: 7. Battery Parameters: -20℃ ~ +45℃ Rated voltage 48Vdc Charging temperature (Ambient temperature) Operating Voltage 37.5-54.75Vdc -20℃ ~ +45℃ Storage temperature ≤ 3 h(25℃ ambient (Ambient temperature) Charging time temperature) ≥2000 cycles, Cycle lifespan Battery temperature capacity≥80% Discharging power ≤...
  • Page 9 Operations 1. Start Up Press the main switch button (Figure 1) on the panel (the button light is on), the machine turns on, displaying the startup screen (Figure 2), the rear fan self-check program starts, 15s later the screen enters the user interface (Figure 3), the alarm indicator (Figure 4) lights up in yellow, the machine starts up ! Figure 1 Figure 2...
  • Page 10 Operations 3. Solar Charging Open the transparent waterproof cover on the front of the machine (press the upper part of the 3 clasps in the picture to loose the buckle then open front cover)(Figure 12),insert the plug of the solar panel into the solar input port (Figure 13), at this time the solar indicator on the screen lights up (Figure 14),and the power display area shows the current solar charging power ! Figure 14 Solar panel...
  • Page 11 Operations 4. Parallel Operation Open the waterproof cover of the parallel socket on the side of the machine, insert one end of the parallel cable (optional accessory) into the parallel socket of the machine, and connect the other end into the parallel box (optional accessory) (Figure 15),then the parallel indicator icon on the screen lights up (Figure 16), and the power display area shows the output power (the average value of the total output power for each machine.
  • Page 12 Operations 5. AC output Open the transparent waterproof cover on the front of the machine, insert the plug into the AC output socket (Figure 17), the maximum output of a single socket is 16A (230V machine), 20A (110V machine), sort out the plug wire (the wire should be correctly go through the middle of the transparent cover and the buckle), close the transparent cover and the buckle as shown (Figure 18), the transparent waterproof cover can be opened if environment is dry.
  • Page 13: Overload Protection

    Operations 6. USB Output Open the transparent waterproof cover on the front of the machine,plug the phone charging cable into the USB-A socket or USB-C socket (according to the configuration of the phone),long press the DC ON/OFF switch for 2s to turn on the DC charging, the LED indicator lights up (Figure 21).
  • Page 14 Operations 8. WI-FI Mobile Control Turn on the machine, the screen enter the main interface, the machine generates WI-FI signal, the smartphone connects to the WI-FI name of this machine,the WI-FI indicator on the screen lights up (Figure 24),the smartphone automatically pops up the control interface (figure to be confirmed).It can realize the smartphone wirelessly control the machine on/off, AC output on/off and all the information displayed on the machine screen can be viewed simultaneously.
  • Page 15 Operations 9. Machine Abnormalities Operations Reasons for Abnormal status Solutions abnormality displayed on screen Long press the main switch of the machine, replace the Fan abnormality fan after shutdown, and restart the machine. Wait until the battery temperature drops to 45℃ or the Overtemperature temperature of 3 inverters drop to 85℃, 90℃, 110℃...
  • Page 16 Operations 10. Shut Down Long press main switch button on the front cover for 5S (Figure 25), the screen enters the shutdown interface (Figure 26), all the indicators are off. If the machine is not operated for a long time, it will automatically shut down after 1 hour of standby. When the machine stop for no reason, please long press the main switch for 15S and then release, the machine will shut down.
  • Page 17 Operations 10. Shut Down Long press main switch button on the front cover for 5S (Figure 25), the screen enters the shutdown interface (Figure 26), all the indicators are off. If the machine is not operated for a long time, it will automatically shut down after 1 hour of standby. When the machine stop for no reason, please long press the main switch for 15S and then release, the machine will shut down.
  • Page 18 For Both FCC & IC application: This device complies with Part 15 of the FCC Rules / Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 For Both FCC & IC application: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 20 For Both FCC & IC application: MPE Requirements To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. Les antennes installées doivent être situées de facon à...
