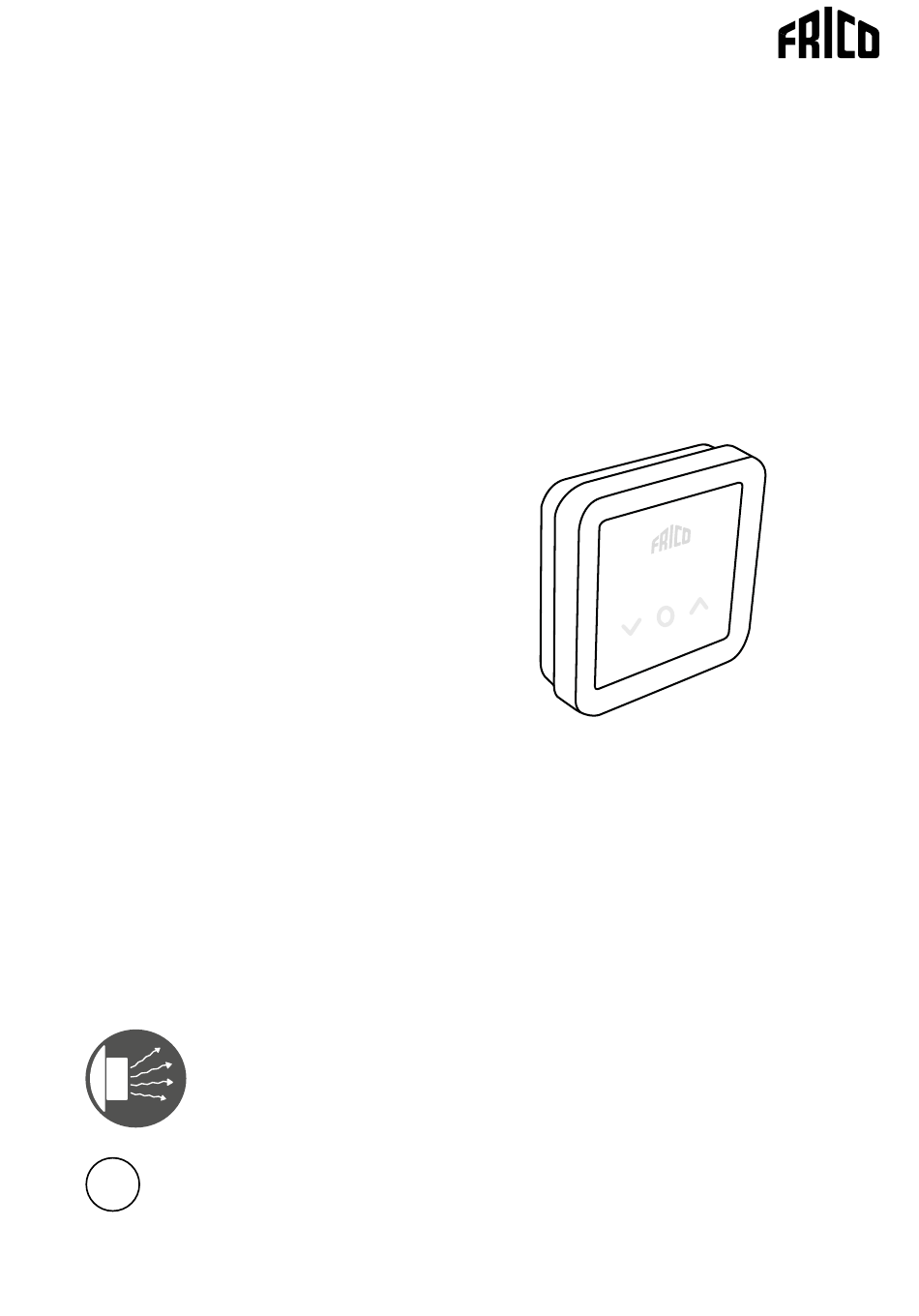

- Page 1 Quick Guide Control system FC for fan heaters FCDF - FC Direct, FCSF - FC Smart FCPF - FC Pro, FCBF - FC Building...
- Page 2 FC Frico Control FH - Quick guide FC Control system The fan heater must be supplemented with a FC control system. FC Control system helps to create many smart and energy saving features. In addition to our four packages, components can be added to expand and customize the system.
- Page 3 FC Frico Control FH - Quick guide FC Direct - FCDF Sensor FCRTX FCOTX Sensor Sensor PC Board G 1 2 G 1 2 inside fan A1 A2 B1 B2 D1 D2 heater Actuator BUS 1 BUS 2 E1 E2...
- Page 4 FC Frico Control FH - Quick guide FC Smart - FCSF Sensor FCRTX FCOTX Sensor Config PC Board input* G 1 2 inside fan A1 A2 B1 B2 D1 D2 heater Actuator BUS 1 BUS 2 E1 E2 Control Panel...
- Page 5 FC Frico Control FH - Quick guide FC Pro - FCPF Sensor FCRTX FCOTX Sensor Config PC Board input* G 1 2 inside fan A1 A2 B1 B2 D1 D2 heater Actuator BUS 1 BUS 2 E1 E2 Control Panel...
- Page 6 FC Frico Control FH - Quick guide FC Building - FCBA Sensor FCRTX FCOTX Sensor Sensor PC Board G 1 2 G 1 2 inside fan A1 A2 B1 B2 D1 D2 heater Actuator BUS 1 BUS 2 E1 E2...
- Page 7 FC Frico Control FH - Quick guide Termination at PC Board BUS 1 BUS 2 BUS 1 BUS 2 BUS 1 BUS 2 To reduce the risk of interference, the communication BUS should be terminated at each end, i.e. in the units that are located at the start and at the end of the BUS respectively.
-
Page 8: System Solution
FC Frico Control FH - Quick guide Start up 1. Check that all components and accessories are enclosed. 2. Assemble and connect system, consult wiring diagrams. 3. Power-up the system. 4. The system automatically identifies all components, even when they are added at a later stage. -
Page 9: Control Panel
The FC control is delivered with preset values. The preset set point temperature is 21 °C and The app FRICO CONTROL is available for both can be easily adjusted using the up/down iOS and Android. - Page 10 FC Frico Control FH - Quick guide Fan menu User menu Press twice to activate keypad and hidden Press to activate keypad. buttons. Press and hold for 2 seconds. Press and hold for 2 seconds. Home screen Home screen Browse between the menu options.
- Page 11 FC Frico Control FH - Quick guide User menu Menu options Functions Default Description settings For week program. Increase/decrease with up/down dAtE arrow. Confirm each step with OK. Set the following: - year - month - day - time (00:00) For week program.
-
Page 12: Week Program
FC Frico Control FH - Quick guide Week program Setting week programs The FC has nine preset weekly programs (P1- P9) and one customized (P0). Customized Weekly program is selected and activated in User Menu: program is possible via FC Smart and FC Pro through the mobile app. - Page 13 FC Frico Control FH - Quick guide Settings Settings are changed in User Menu: Press to activate keypad. Enter the number for the setting that will be Press and hold for 2 seconds. changed using up/down arrows, confirm each digit with OK.
-
Page 14: Reset Alarm
FC Frico Control FH - Quick guide Settings - Outdoor temperature sensor, requires FCOTX / FCTXRF / outdoor signal from FCBAP Functions Default settings Description Outdoor temperature 1 (enabled) 0 (disabled) / 1 (enabled) heat blocking If enabled, the heat is blocked when temperature exceeds the set point #376. -
Page 15: Troubleshooting
FC Frico Control FH - Quick guide Troubleshooting Error code Cause Action • Check the connections. Control panel communication error • If the alarm persists after resetting, contact Frico. Contact lost with one or several units • If the component is removed intentionally, the in the system alarm must be reset manually. - Page 16 When error codes are displayed, the system continues to operate with the components that are functioning. If all room temperature sensors, including the temperature sensor in the control panel, have lost contact, the system will run at 25% heat output. If the problems continue, please contact Frico for support.
