Summary of Contents for Frico PLS Competent
- Page 1 PLS Competent Quick guide PLSAC...
- Page 2 PLS Competent...
- Page 3 PLS Competent...
- Page 4 PLS Competent Wiring diagram - Advanced PLSB1/B2 SIRe B1/B2/B1EC...
- Page 5 PLS Competent Wiring diagram - Advanced...
- Page 6 PLS Competent UA1Y UA1Z Svenska Polski Norsk Русский English English Čeština Deutsch Français Slovenčina Italiano Türkçe Español Deutsch Nederlands Română Suomi Magyar Dansk...
- Page 7 PLS Competent Quick guide/Start up Operation without control unit 1. Check that all constituent parts are present (see section Constituent parts). 2. Mount and connect all units and components and where applicable accessories (e.g. actuator), see wiring diagram. When several units are connected...
-
Page 8: Constituent Parts
PLS Competent Constituent parts PLSAC PLSUA1 PLSC1X Type Description HxWxD [mm] PLSUA1 Control unit, with internal room sensor, wall unit cover 120x70x35 PC Board HUB Competent 202x139x50 PLSC1X Magnetic door contact CC603 Modular cable RJ12 (6/6) CC605 Modular cable RJ12 (6/6) - Page 9 PLS Competent Water control - valve kit VLSP SD230 BPV10 SD230 BPV10 SD230 TRVS TRVS SD230 Water control - valve system* Type Description Connection VKF15LF TAC15LF + AV15 DN15 VKF15NF TAC15NF + AV15 DN15 VKF20 TAC20 + AV20 DN20 VKF25...

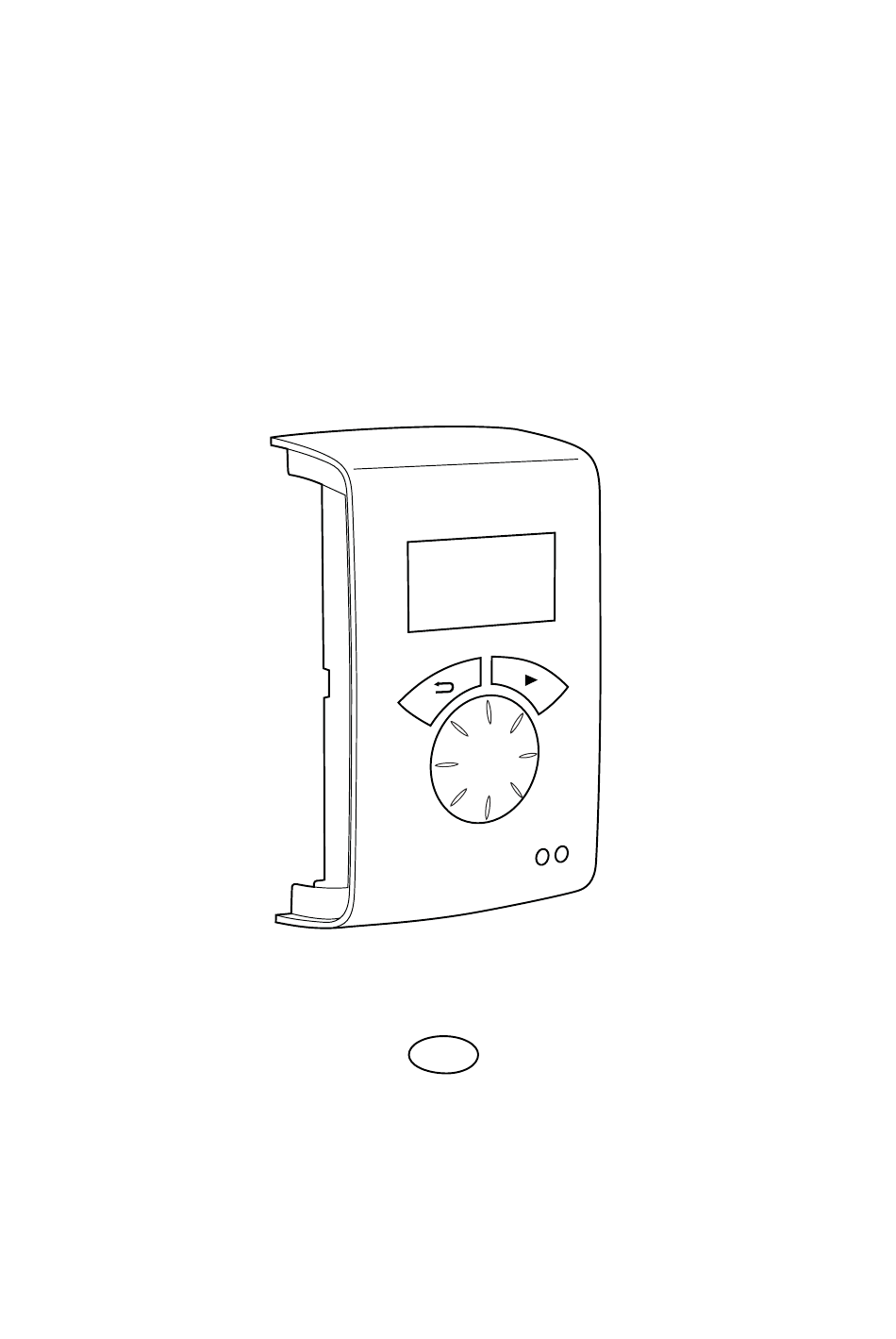

- Page 10 PLS Competent Control unit PLSUA1 Overview Air curtains °C DOOR Forward/ Confirm Back Alarm Red led Run signal Green led Fan speed step Heating step Week program Week program Night Week program Out of operation...
-
Page 11: Installer Menu
PLS Competent Main menu Current settings Fan control Current set values. Maximum fan speed and fan speed when the door is closed. Fan speed when the door is Temperature settings closed is only valid when using PLSAC. Day/night temperature. The night... - Page 12 PLS Competent Table - Alarms Error code Cause Action Check that nothing is obstructing the unit's air intake and exhaust. Thermal contact has deployed. One or more When the overheated motor has cooled the motors are overheated. thermal switch shuts again and the alarm can Motor be reset.
- Page 13 PLS Competent Table - Error codes Error code Cause Action Try to reset the alarm. Check connections, PLSB1/B2 (internal pc-board) modular cables and terminals, between all units do not communicate. and components. Systematically shift position of communication cables to identify a broken terminal or cables.
- Page 14 PLS Competent Table - Error codes (continued) Error code Action Cause Internal sensor Fault on or missing internal Try to reset the alarm. Check connections and Error temperature sensor,PLSIT, cable. False errors can occur in conjunction with connected to PLSB1/B2.
- Page 15 PLS Competent Connecting external control - including BMS functions 1516 ROOM COM 1 COM 2 PLSC1X 19 20 7 8 9 10 1112 15 161718 Terminal Functions RJ12 (6/6) PLS internal communication COM1 RJ12 (6/6) PLS internal communication COM2 RJ11 (4/4) Pin 1+2 and 3+4, PLSRTX (accessory)
- Page 16 Technical Support - tel. +46 313368600...
