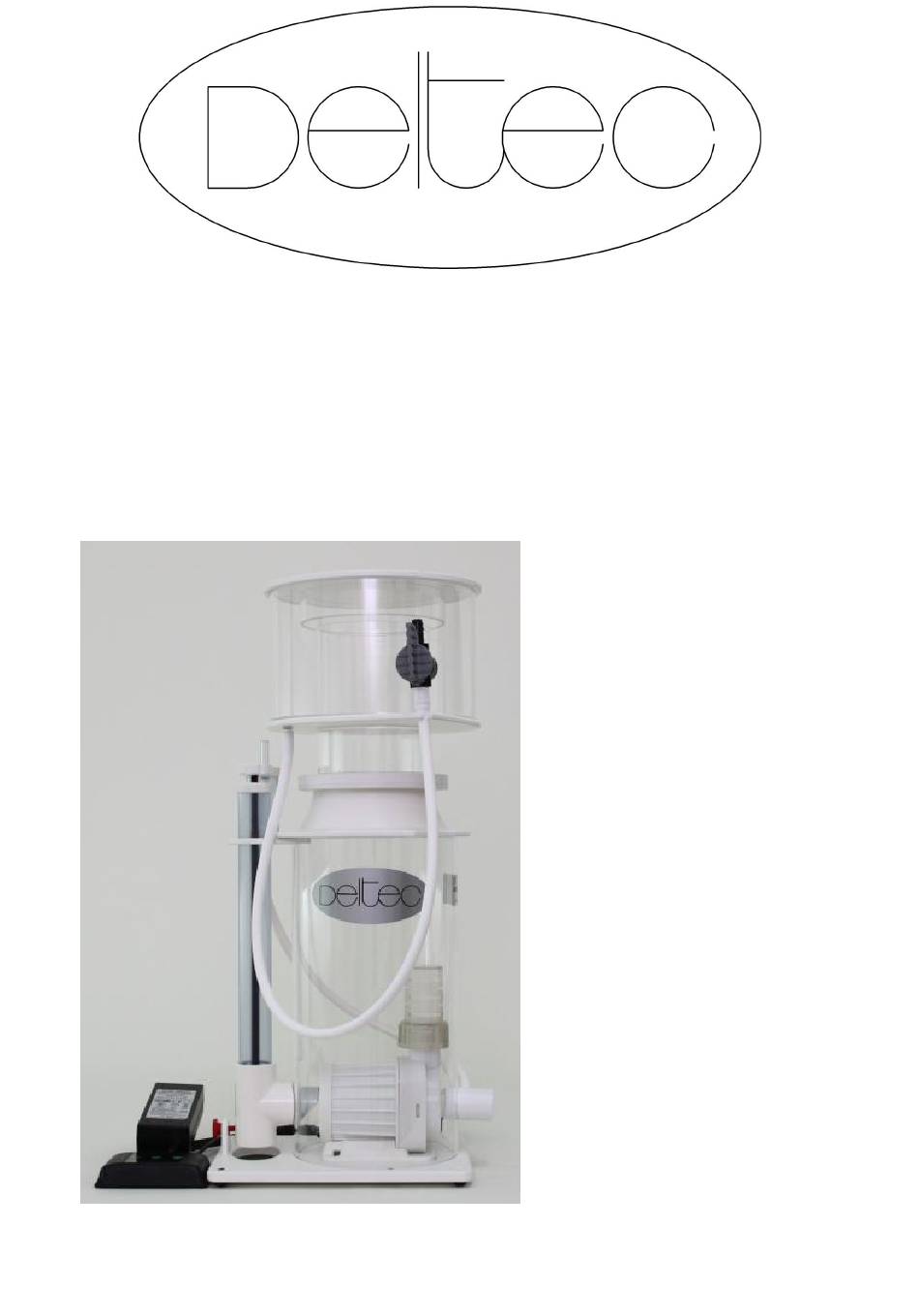

  • Page 1 ® SC 2561, SC 3071, SC 3071S Bedienungsanleitung Seite 2 Operating instruction Page 9 Istruzioni d’uso Pagina 15 Instructions d'emploi Page 22...
  • Page 2: Wichtige Sicherheitshinweise

    Wichtige Sicherheitshinweise Warnung: Zum Schutz vor Verletzungen sollten grundlegende Vorsichtsmaßnahmen und folgende Sicherheitshinweise beachtet werden. 1) Sicherheitshinweise Lesen und befolgen 2) Gefahr: Zur Vermeidung eines elektrischen Schlages sollten alle Aquarium Geräte mit Vorsicht gehandhabt werden. In keinem der unten aufgeführten Fälle sollte die Reparatur vom Kunden versucht werden.
  • Page 3: Einbau

    Wasserständen. Um jederzeit einen konstanten Wasserstand in der Filterwanne zu garantieren, wird empfohlen, ein Nachfüllsystem wie den Deltec Aquastat 1001 oder ähnliches zu verwenden. Eine andere Möglichkeit ist der Einbau einer Abschäumerkammer (Zeichnung b) in die Filterwanne, die einen höheren Wasserstandstand als die Filterwanne haben muss. Vom Aquairumüberlauf oder der Hauptpumpe kann diese Abschäumerkammer über einen Bypass...
  • Page 5 Inbetriebnahme Nach dem Einbau sollte der Abschäumer wie folgt in Betreib genommen werden: - Niveauregler (Zeichnung c) durch Drehen gegen den Uhrzeigersinn ganz öffnen. - Wasserzufuhr für die Abschäumerkammer einschalten (falls vorhanden). - Wasserstand in dem Bereich Oberkante Bajonett – Unterkante Schaumtopf einstellen (Zeichnung d).
  • Page 6: Technische Daten

    Zudem kann Ozon, bei zu hoher Dosierung, zu Schäden am Abschäumer führen. Die Ozon Dosierung ist so einzustellen, dass kein freies Ozon am Deckel des Abschäumers wahrzunehmen ist. Die Deltec Abschäumer können mit max. 50 mg/Stunde Ozon pro Pumpe betrieben werden. Dazu wird in den Luftschlauch oberhalb der der Abschäumerpumpe ein ozonfestes T-Stück (z.B.
  • Page 7: Fehlersuche

    Stators einrasten. Demontage der Pumpe: siehe Seite 29 Wartung Bei korrektem Einbau und Einstellung benötigen Deltec Abschäumer denkbar wenig Wartung. Durch Kalkwassermischer und Kalkreaktoren kann es jedoch zu Kalkablagerungen in der Pumpe kommen, die zu Funktionsstörungen führen können. Es wird empfohlen bei Störungen oder alle 6 Monate den Rotor auf Leichtgängigkeit und die Lufteinzugsdüse auf freien Durchgang hin zu prüfen.
  • Page 8 Ersatzteilliste SC 2561, 3070, 3071S Art. Nr. Bezeichnung Art. Nr. Bezeichnung 81260000 SC 2561 81260200 Bodenplatte 25091000 Pumpe cpl. 8-13+21 Niveauregler 81206100 Kontaktrohr 93419000 Kugelhahn 80253000 Schaumtopf 61760000 Silikonschlauch ws 7/10 80500140 O-Ring Schaumtopf 61700000 Silikonfuß 80254000 Schaumtopf Deckel 81160500 Schalldämpfer 81230900 Luftverteiler 29060000 Netzanschlussleitung EU 61758000 Silikonschlauch ws 5/8...
  • Page 9 WARNING To guard against injury, basic safety precautions should be observed, including the following. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself;...
  • Page 10: Installation

    Ideally, a water level top up system should be used such as the Deltec Aquastat 1001 or better still a separate skimmer compartment in the sump (diagram b). The water level in the skimmer compartment should be higher than in the rest of the sump.
  • Page 11 Starting the skimmer position the skimmer in the sump feed water into the skimmer compartment (if applicable) open the water level adjuster (diagram c) fully by turning it anti-clockwise start the skimmer pump close the water level adjuster until fine bubbles are visible between the bayonet and the bottom of the skimmer cup (diagram d) initially keep the foam level in the skimmer cup low to avoid over skimming and possible flooding of the cup...
  • Page 12 One air connection of the ozoniser should be connected via a suitable silicon hose to the protein skimmer pump. The air is automatically sucked in the ozoniser by the skimmer pump. Should the skimmer performance deteriorate please check the ozoniser for blockage. Safety information: The maximum ozone quantity of 50mg/hour per pump must not be exceeded.
  • Page 13: Technical Data

    Disassembly of the pump: see page 29 Maintenance The Deltec skimmer range should need very little adjustment and maintenance once set correctly however due to the high levels of calcium in marine aquariums it is common for deposits to build up on moving parts requiring periodical cleaning . It is recommended every 6 months, or when required, that the pumps are removed from the skimmer having first drained the body of Water.
  • Page 14 Spare part list SC 2561, 3071, 3071S Art. Nr. Bezeichnung Art. Nr. Bezeichnung 81260000 SC 2561 81260200 Bodenplatte 25091000 Pumpe cpl. 8-13+21 Niveauregler 81206100 Kontaktrohr 93419000 Kugelhahn 80253000 Schaumtopf 61760000 Silikonschlauch ws 7/10 80500140 O-Ring Schaumtopf 61700000 Silikonfuß 80254000 Schaumtopf Deckel 81160500 Schalldämpfer 81230900 Luftverteiler 29060000 Netzanschlussleitung EU...
  • Page 15: Norme Di Sicurezza

    NORME DI SICUREZZA AVVERTENZA: Per evitare incidenti si raccomanda di osservare le norme generali di sicurezza, tra cui le seguenti: 1) LEGGERE E SEGUIRE SCRUPOLOSAMENTE TUTTE LE NORME DI SICUREZZA. 2) PERICOLO – Considerato che l’uso di attrezzature per acquario avviene in presenza di acqua, agire sempre con particolare cautela per evitare scosse elettriche.
  • Page 16: Installazione

    Per garantire un livello costante nella sump, si consiglia l’uso di un sistema di rabbocco, come ad es. il Deltec Aquastat 1001. Un’alternativa è rappresentata dall’installazione di una camera di schiumazione (disegno b) nella sump, che abbia un livello d’acqua superiore a quello della sump stessa e che sia...
  • Page 17 -17-...
  • Page 18: Messa In Funzione

    Messa in funzione Dopo l’installazione procedere alla messa in funzione come segue: Posizionare lo schiumatoio nella sump. - Aprire completamente il regolatore di livello (disegno c) ruotandolo in senso antiorario. - Far entrare l’acqua nel scomparto dello schiumatoio (se presente). - Avviare la pompa dello schiumatoio.
  • Page 19: Dati Tecnici

    Il dosaggio dell’ozono si deve impostare in modo che non si percepisca la presenza di ozono libero sul coperchio dello schiumatoio. Gli schiumatoi Deltec si possono utilizzare con dosaggi di ozono compresi tra 20 e max. 50 mg/ora per pompa. A tale scopo viene inserito un raccordo a T resistente all’ozono nel tubo dell’aria sopra la pompa dello schiumatoio.
  • Page 20: Ricerca Errori

    Ricerca errori Inconveniente Causa Rimedio La pompa funzione, ma la quantità di La tubazione dell’aria è ostruita Effettuare pulizia aria è nulla o insufficiente L’ozonizzatore è bloccato Effettuare pulizia Il tubo dell’aria è schiacciato Modificare il percorso del tubo L’ugello che aspira aria è ostruito Effettuare pulizia Cambiare sale ed aumentare temporaneamente la quantità...
  • Page 21 Parti di ricambio SC 2561, 3071, 3071S -21-...
  • Page 22: Instructions De Sécurité Importantes

    Instructions de sécurité importantes Avertissement : Pour protéger contre quelconques blessures, il faut respecter les mesures de prudence et les instructions de sécurité suivantes : Lire et respecter les instructions de sécurité. Danger : Pour éviter une électrocution, il faut manipuler tous les appareils de l'aquarium avec prudence.
  • Page 23 Pour garantir à tout moment un niveau d'eau constant dans le bac du filtre, il est recommandé d'utiliser un système de remplissage tel que le Deltec Aquastat 1001 ou similaire. L'insertion d'une chambre d'écumage (Dessin b) dans le bac du filtre chambre qui doit avoir un niveau d'eau plus élevé...
  • Page 24 -24-...
  • Page 25: Mise En Service

    Mise en service Après l'insertion, l'écumeur devrait être mis en service de la manière suivante : - Ouvrir intégralement le régulateur de niveau (Dessin c) en tournant dans le sens inverse des aiguilles d'une montre. - Brancher l'alimentation en eau (si elle existe). - Régler le niveau d'eau dans la zone du bord supérieure de la baïonnette - bord inférieur du pot de mousse (Dessin d).
  • Page 26: Caractéristiques Techniques

    Le dosage de l’ozone doit être réglé de sorte qu’aucun ozone libre ne soit perceptible sur le couvercle de l’écumeur. Les écumeurs Deltec peuvent être exploités avec 50 mg/heure max. d’ozone par pompe. Pour ce, une pièce en T résistante à l’ozone sera placée dans le tuyau d’air au-dessus de la pompe de l’écumeur.
  • Page 27: Recherche Des Défauts

    Recherche des défauts Symptôme Cause Mesure à prendre La conduite d'amenée d'air vers la nettoyer La pompe marche pompe est bouchée mais il n'y a pas L'appareil à ozone est encrassé nettoyer d'air ou très peu Le tuyau d'air est plié Modifier la conduite du tuyau d'air La buse d'aspiration d'air est bouchée nettoyer...
  • Page 28 Accessoires et pièces détachées SC 2561,3071,3071S -28-...
  • Page 29 Deltec GmbH Steller Straße 75...
  • Page 30 D-27755 Delmenhorst Deutschland / Germany www.deltec-aquaristic.com Deltec GmbH 10/2014...
