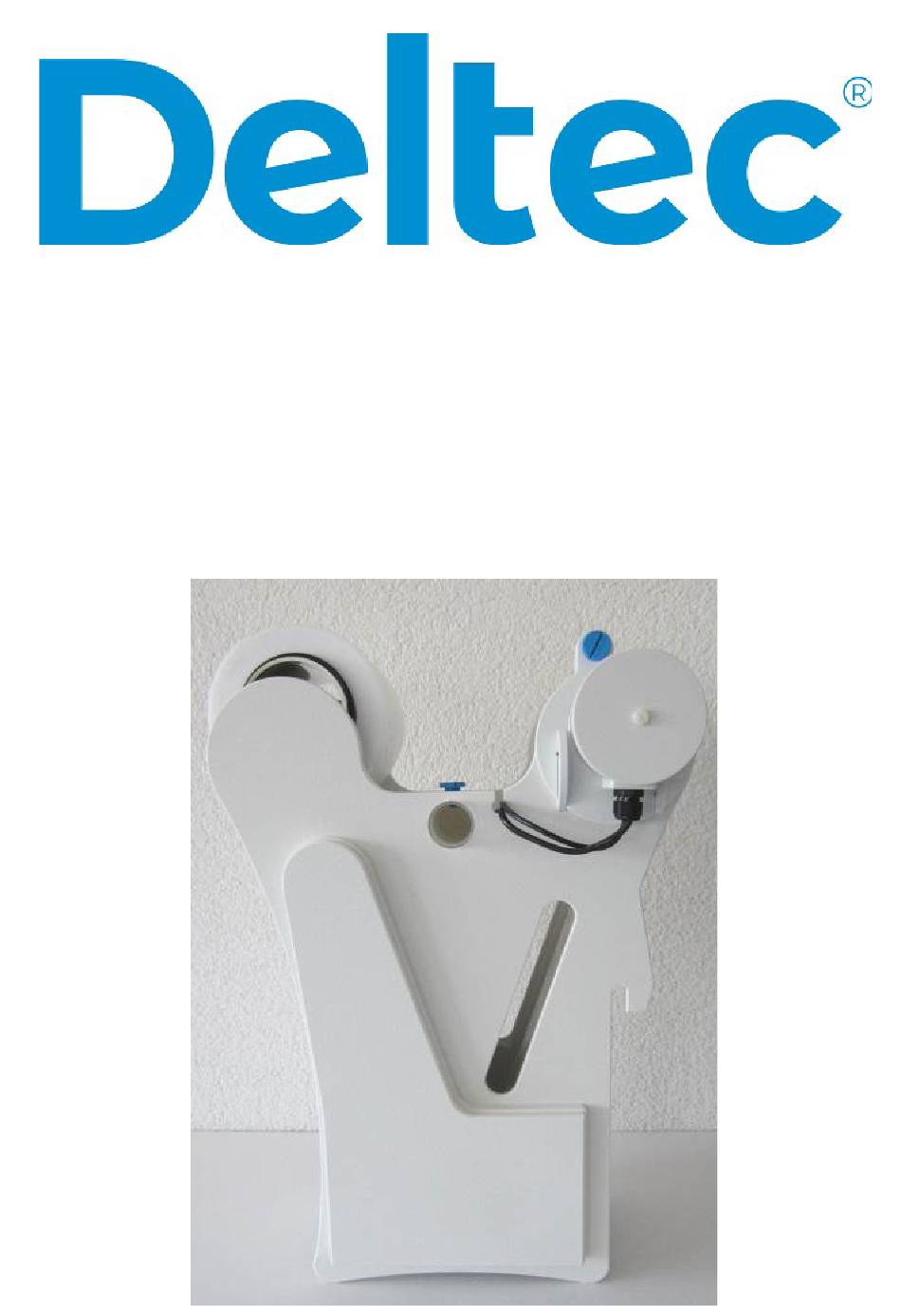

- Page 1 Fleece Filter VF 5000, VF 8000 Operating instruction - 1 -...
- Page 2 IMPORTNT SAFETY INSTRUCTIONS WARNING To guard against injury, basic safety precautions should be observed, including the following. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself;...
- Page 3 Fleece Filter VF 5000, VF 8000 1. Intended use The fleece filters VF 5000 and VF 8000 are intended for use in external filter sumps and serve to clean the water from the aquarium. Fleece filters of the VF series can be operated in fresh or marine water.
-
Page 4: Technical Data
5. Technical data VF 5000 VF 8000 Dimension mm 340 x 215 x 500 340 x 275 x 500 Water flow max. litre 5000 8000 Water inlet connection mm Water level sump mm 170-220 170-220 Roll width mm 6. Fault finding... - Page 5 8. Different types of water connection 9. Roll Installation - 5 -...
- Page 6 Take a new fleece roll and fix the roll with O-rings on the tube Remove the screw, then remove the water inlet diffuser - 6 -...
- Page 7 Remove the fleece holder and then insert the fleece roll Make sure the roll is fully insert, then thread the fleece between the strut and the housing - 7 -...
- Page 8 Shaped fleece together and fit into take-up tube Wrap fleece in 3-4 layers and connect the take-up tube with the motor - 8 -...
- Page 9 Insert the take-up roll in the housing and fix the motor with the screw Press the fleece down with the fleece holder - 9 -...
- Page 10 Fit the handle into the holder, then fit the water inlet diffuser The fleece filter is now ready for use - 10 -...
- Page 11 10. Removing the dirty roll Remove the screw and lift out the roll Disconnect motor and take-up tube, then press tube to one side out. - 11 -...
- Page 12 Deltec GmbH Steller Straße 75 D-27755 Delmenhorst Deutschland / Germany www.deltec-aquaristic.com Deltec GmbH 04/2021 - 12 -...
- Page 13 According to EC Machinery Directive 2006/42/EC, Annex We hereby declare that the following machine Product: Fleece filter Types: Deltec VF 5000 and Deltec VF 8000 Year of manufacture: from 2021 Serial number: 2000 ff complies with the basic health and safety requirements of the following EC directives due to its...
