WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

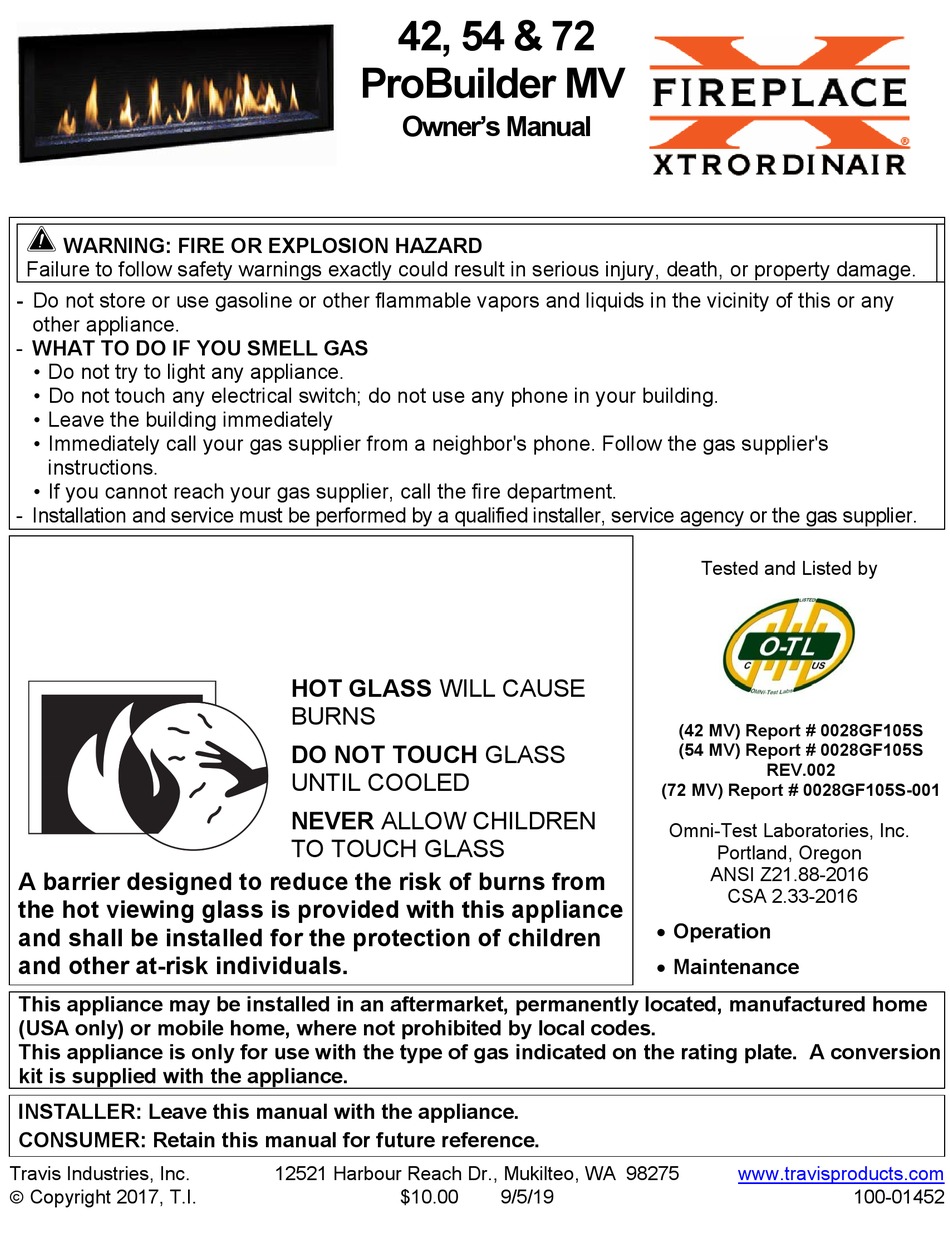

Travis Industries, Inc.
Copyright 2017, T.I.

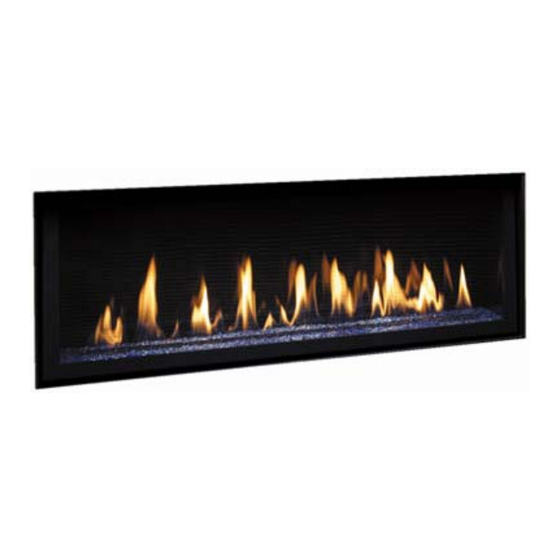

42, 54 & 72
ProBuilder MV
Owner's Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
(42 MV) Report # 0028GF105S
(54 MV) Report # 0028GF105S
(72 MV) Report # 0028GF105S-001
Omni-Test Laboratories, Inc.
Operation
Maintenance
9/5/19
Tested and Listed by
REV.002
Portland, Oregon
ANSI Z21.88-2016
CSA 2.33-2016
www.travisproducts.com
100-01452
Advertisement
Table of Contents
Related Manuals for FireplaceXtrordinair ProBuilder MV 42
Summary of Contents for FireplaceXtrordinair ProBuilder MV 42
- Page 1 42, 54 & 72 ProBuilder MV Owner’s Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Introduction
Table of Contents Introduction We welcome you as a new owner of a ProBuilder gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Important Information No other ProBuilder gas fireplace has the same serial Register your warranty online at:... -
Page 3: Table Of Contents
Introduction Table of Contents Introduction ........... 2 Power Outages ..........9 Important Information ........2 Crushed Glass Installation ......13 Installation Warnings ........2 Maintaining Your Heater's Appearance ..14 Table of Contents .......... 3 Cleaning The Glass ........... 14 Cleaning the Fireplace ........ - Page 4 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
- Page 5 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.
-
Page 6: Before You Begin
Operation Before You Begin Read this entire manual before you use your new fireplace (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Location of Controls There is a door on the lower portion of the screen assembly to provide access to the manual controls on the fireplace. -
Page 7: Starting The Pilot
Operation Starting the Pilot Remove the glass frame before starting the pilot. The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF". -
Page 8: Starting The Heater For The First Time
Operation Starting the Heater for the First Time Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal. -
Page 9: Normal Operating Odors
Operation Adjusting the Blower Speed (Optional) The optional blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed. - Page 10 Maintenance Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
- Page 11 Maintenance Remove the glass frame following the directions below. Open the latches holding the glass frame in place (start with the bottom) - follow the directions shown to the right. Pliers may be used Top of Firebox Latch Glass Lift the glass frame up and pull it forward to remove.
- Page 12 Maintenance The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 3/16/18 - 1452 PB Lin MV Operation...
-
Page 13: Crushed Glass Installation
Maintenance Crushed Glass Installation Do not allow the crushed glass to block the air slots or to become too thick (maximum 1 layer deep on the burner). Failure to properly install glass may lead to sooting and improper burning. If converting to LP (propane), convert the appliance prior to placing the crushed glass. Install the crushed glass on the glass tray following the directions below. -
Page 14: Maintaining Your Heater's Appearance
Maintenance Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface. -
Page 15: Yearly Service Procedure
Maintenance Yearly Service Procedure • Failure to inspect and maintain the heater may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician. Check the pilot flame. It should touch approximately 3/8" of the top of the flame sensor. If it does not, contact your dealer for service. -
Page 16: Troubleshooting Table
Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: A gas shut off valve is turned off Check all gas shut off valves Pilot Will Not Light The gas control knob isn't turned to "PILOT" See "Starting the Pilot Light" Step C The valve control knob isn't pushed in See "Starting the Pilot Light"... -
Page 17: Replacement Parts List
Maintenance Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. GLASS w/FRAME (42 ProBuilder) 250-04491 GLASS w/FRAME (54 ProBuilder) -
Page 18: Wiring Diagram
Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Optional Blower Wiring © Travis Industries 3/16/18 - 1452 PB Lin MV Operation... -
Page 19: Safety Label
Safety Label 42 ProBuilder Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 3/16/18 - 1452 PB Lin MV Operation... - Page 20 Safety Label 54 ProBuilder Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 3/16/18 - 1452 PB Lin MV Operation...
- Page 21 Safety Label 72 ProBuilder Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 3/16/18 - 1452 PB Lin MV Operation...
-
Page 22: Conditions & Exclusions
Index Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com, or complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. - Page 23 Limited 7 Year Warranty © Travis Industries 3/16/18 - 1452 PB Lin MV Operation...
-
Page 24: Index
Index Index Before You Begin ..........6 Maintaining Your Heater's Appearance ... 14 Crushed Glass Installation ....... 13 Normal Operating Odors ........9 Features ............. 3 Power Outages ..........9 Glass Frame Removal and Installation .... 10 Replacement Parts List ........17 Heating Specifications ........
