3 Product description
Information Meaning
on the identi-
fication plate
Condensing Efficiency of the boiler in
technology accordance with directive
92/42/EWG
Type: Xx3(x) Approved flue gas connec-
tions
PMS Maximum water pressure in
heating mode
PMW Maximum water pressure in
hot water handling mode
V/Hz Electric connection
W Max. electrical power con-
sumption
IP Level of protection
Heating mode
Hot water generation
Pn Nominal heat output range
in heating mode
Pnc Nominal heat output range
in heating mode (condensing
technology)
P Nominal heat output range
in hot water handling mode
Qn Nominal heating load range
in heating mode
Qnw Nominal heating load range
in hot water handling mode
T Max. flow temperature
max.
NOx NOx class for the product
Code (DSN) Specific product code
GC no. Gas council number
8

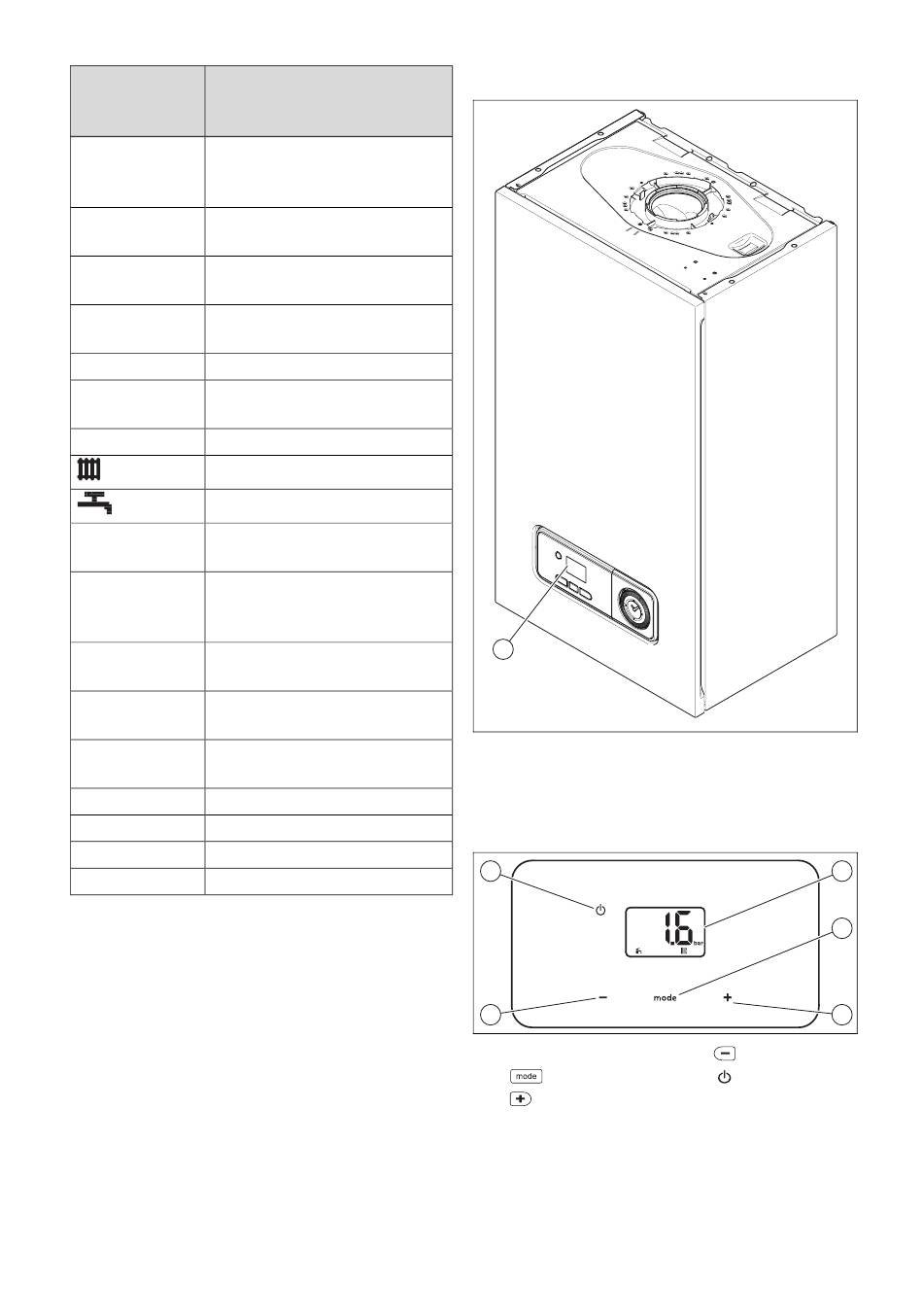

3.4 Product design

1
1 Control elements
3.5 Overview of the operator
control elements
5
4
1 Display
2
button
3
button
Operating instructions Betacom 4 0020238423_01
1
2
3
4
button
5
button
