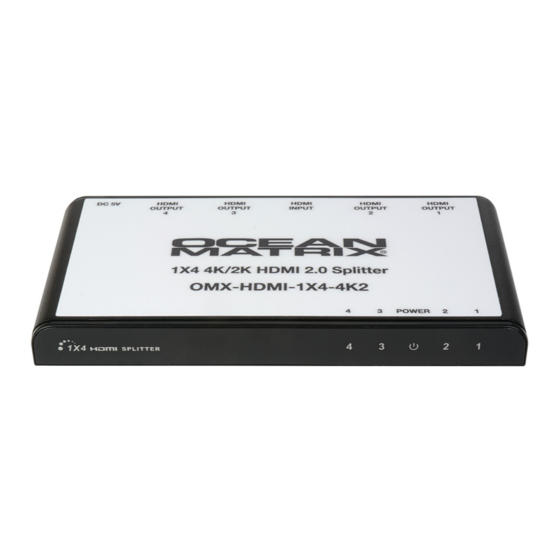

Ocean Matrix OMX-HDMI-1X4-4K2 Installation & Specifications

Splitter-Distribution Amplifier Routes One HDMI Signal to Four HDMI Displays

Installation Requirements

1. Source: HDMI video source
2. Display: Display with HDMI port
3. Cable: HDMI cable able to support 4Kx2K

Specifications

Input/Output 1 HDMI Input, 4 HDMI Outputs
DVI1.0, HDMI1.4, HDMI2.0
Compatibility
HDCP1.4, HDCP2.2
Frequency Range 25MHz-600MHz
12 Bit Full HD
Video Form 3D Video
4Kx2K@ 30/60HZ UHD
TMDS Signal 0.5-1.5Vp-p(TMDS)
DDC Signal 5Vp-p(TTL)
Standard
Audio DSD (Direct Stream Digital)
HD(HBR)
480i/480p/756i/756p/720p/1080i/1080p/
HDMI Resolution
4Kx2K@ 24/25/30/60Hz
Power Supply 5VDC/2A
Power Consumption 8W
Dimensions (LxWxH) 6.2x3.15x0.67in
Weight 6.9oz
INSTALLATION & SPECIFICATIONS
OMX-HDMI-1X4-4K2
HDMI 4 HDMI 1
HDMI 3 HDMI 2
Power
LED Indicators
Ocean Matrix
812 Kings Highway • Saugerties, NY 12477
www.oceanmatrix.com

Installation

1. Connect the HMDI video source output port to the
splitter input port
2. Connect the splitter output port to the HDMI display
3. Set the display input to right HDMI channel
4. Connect the power supply and turn the power on
OMX-HDMI-1X4-4K2
HDMI Output HDMI Input
Ports Port
Display 1 Display 2
Video Source
Features

Distributes 1 HDMI source to 4 HDMI displays
simultaneously
 Supports HDMI 3D and 4K x 2K@60Hz when both
the input and output devices support 4K x 2K
 Supports 3D output when both HDMI source and
HDMI displays support 3D
 Support bandwidth up to 18Gbps
 HDMI2.0 compliant
 HDCP2.0 compliant
 Audio - Supports Standard, Direct Stream Digital,
and HD/high bit-rate audio
Includes—5VDC/2A Power Supply
Power
HDMI Output
Input
Ports
Power
Adapter
Display 3 Display 4
Rev1a
