- Page 1 OMX-04SISI0001 1x8 12G/6G/3G/HD/SD-SDI Distribution Amplifier w/ Re-Clocking...

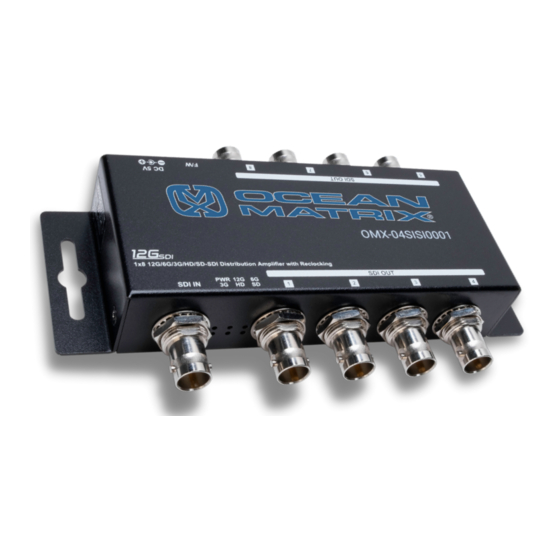

- Page 2 The Ocean Matrix OMX-04SISI0001 is a 1x8 12G/6G/3G/HD/SD-SDI Distribution Amplifier with built-in re-clocking. The unit receives one SDI input, duplicates it, and distributes it to up to eight SDI outputs for real-time multi-viewing. The OMX-04SISI0001 also features cable equalization, signal retiming, LED indication of signal lock and video rate, as well as the passing of ancillary data and embedded audio.
- Page 3 Unit Dimensions: OMX-04SISI0001 Item Includes: 1 x 5V Power Adapter 1 x 75 ohm BNC Connector 2 x Mounting Screws...
- Page 4 Operation Controls and Functions:...
- Page 5 Connection Diagram Connect a camera or other devices equipped with 12G/6G/3G/HD/SD-SDI outputs to OMX-04SISI0001's 12G/6G/3G/HD/SD-SDI input Connect devices equipped with 12G/6G/3G/HD/SD-SDI inputes (e.g. monitors or video processors) to OMX-04SISI0001's 12G/6G/3G/HD/SD-SDI outputs. Plug power adapter cable into 5V DC power jack OMX-04SISI0001...
- Page 6 PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
