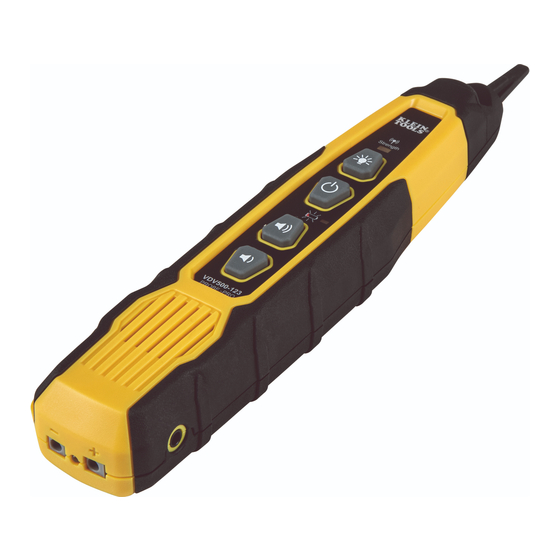

Klein Tools Probe-Pro VDV500-123 Instruction Manual

Klein Tools Probe-Pro VDV500-123 Instruction Manual

Tracing probe
Hide thumbs Also See for Probe-Pro VDV500-123:

Advertisement

Quick Links

Find Quality Products Online at:
ENGLISH
INSTRUCTION MANUAL
Probe-Pro
Tracing Probe
• TRACE INDIVIDUAL
OR PAIRED WIRES*
• EASY-TO-
UNDERSTAND
STATUS LEDs
• REPLACEABLE
PROBE TIP
* When used with
VDV500-063 Toner-Pro
ESPAÑOL
pág. 9
FRANÇAIS
p. 17
GlobalTestSupply
www.
VDV500-123
1
.com
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Probe-Pro VDV500-123 and is the answer not in the manual?

Questions and answers

Summary of Contents for Klein Tools Probe-Pro VDV500-123

  • Page 1 ENGLISH VDV500-123 INSTRUCTION MANUAL Probe-Pro Tracing Probe • TRACE INDIVIDUAL OR PAIRED WIRES* • EASY-TO- UNDERSTAND STATUS LEDs • REPLACEABLE PROBE TIP * When used with VDV500-063 Toner-Pro ESPAÑOL pág. 9 FRANÇAIS p. 17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 ENGLISH GENERAL SPECIFICATIONS The Klein Tools VDV500-123 Probe-Pro is a professional-series tone tracer, featuring an inductive probe with speaker for amplification, and LED light for use in dark spaces. It also features a headphone jack for use in extreme noise environments.
  • Page 3 FEATURE DETAILS P11 P12 SYMBOLS ON TESTER Warning or Caution Always wear approved eye protection Do NOT use on energized circuits Read instructions Conformité Européenne - Conforms with European Economic Area directives UKCA: UK Conformity Assessment This symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal...
  • Page 4 ENGLISH WARNINGS To ensure safe operations and service of the instrument, follow these instructions. Failure to observe these warnings can result in fire, electric shock, severe injury or death. The Probe-Pro is designed for use on extra-low voltage cabling • systems (less than 60 volts) for testing when NOT energized.
  • Page 5 OPERATING INSTRUCTIONS VERIFYING TONED PAIRS (FIG. 2) 1. Connect tone generator (VDV500-063 Toner-Pro recommended, sold seperately) to the cable to be traced, following the tone generator's instructions. 2. On the other end of the cable, remove approximately 2 mm (3/32") of the outer jacket of each of the wires believed to be the toned pair.
  • Page 6 ENGLISH OPERATING INSTRUCTIONS USING THE PROBE'S WORKLIGHT The Probe-Pro has a worklight to aid in illuminating dark or low-light work areas. Press the Worklight On/Off button to turn the light on and off. MAINTENANCE BATTERY REPLACEMENT When the Battery Status Indicator blinks, the batteries must be replaced.
