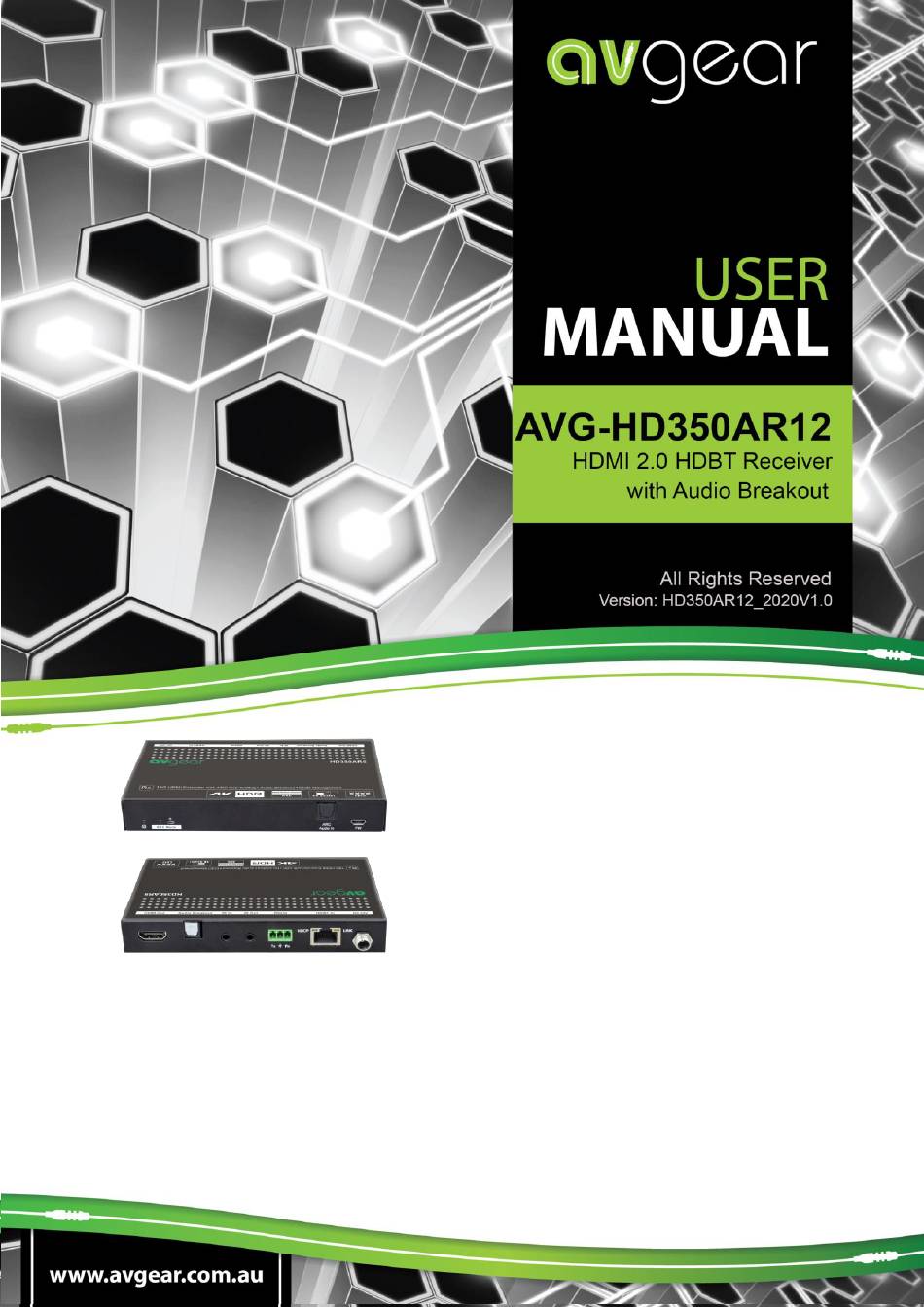

AVGear AVG-HD350AR12 User Manual

Hdmi 2.0 hdbt receiver with audio breakout
Hide thumbs

Advertisement

Quick Links

Download this manual
HD350AR12
This product is a HDMI 2.0 receiver, which is
designed to receive 4K video from a transmitter at
distance up to 131 feet (40 meters) and 1080P video
at distances up to 230 feet (70 meters) over a single
CATx cable. It supports audio de-embedded and
ARC. It also supports bidirectional 12V IR and RS232
pass-through to control source or display device
remotely.
Features
▪
Supports HDMI 2.0 and the HDMI video
resolution up to 4K@60Hz 4:4:4 HDR.
▪
Extends 4K signals to distances up to 131 feet
(40 meters) and 1080P signals to distances up
to 230 feet (70 meters) over a single CATx
cable.
▪
Supports video resolution up-scaling, the 1080P
input can be automatically upgraded to 4K
output.
▪
SPDIF out on receiver for source audio de-
embedding.
▪
18Gbps high bandwidth.
▪
Bidirectional 12V IR, RS232 and 24V PoC.
▪
Supports ARC.
▪
Supports CEC pass-through.
▪
Provides LEDs to indicate the current operating
status.
▪
Firmware upgrade by Micro-USB port.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVG-HD350AR12 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD350AR12

Summary of Contents for AVGear AVG-HD350AR12

  • Page 1 HD350AR12 Features ▪ Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR. ▪ Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 230 feet (70 meters) over a single CATx cable.
  • Page 2 HD350AR12 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at August 2019. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 HD350AR12 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    HD350AR12 TABLE OF CONTENTS Introduction ......................1 Introduction to the HD350AR12 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the HD350AR12 ..............3 ARC Mode ......................... 4 System Connection ....................5 Specifications ......................6...

  • Page 5: Introduction

    HD350AR12 1. Introduction 1.1. Introduction to the HD350AR12 This HD350AR12 is a HDMI 2.0 receiver, which is designed to receive 4K video from a transmitter at distance up to 131 feet (40 meters) and 1080P video at distances up to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedded and ARC.

  • Page 6: What's In The Box

    HD350AR12 2. What’s in the Box ▪ 1x HD350AR12 Receiver ▪ 2x Mounting Ears with 4 Screws ▪ 4x Plastic Cushions ▪ 1x 3-pin Terminal Block ▪ 1x User Manual Note: Please confirm if the products and the accessories are all included, if not please contact your dealer.

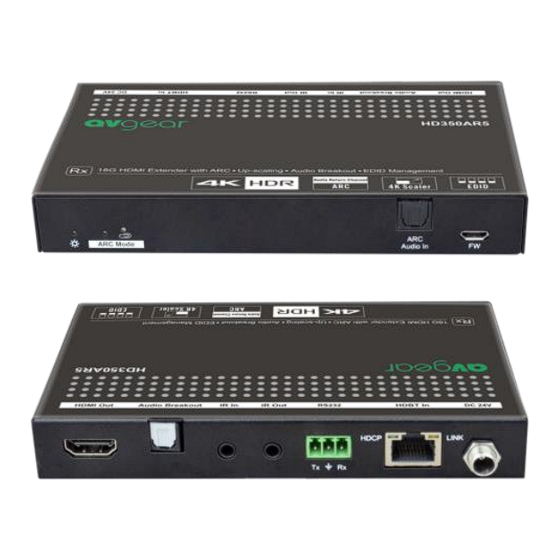

  • Page 7: Product Appearance Of The Hd350Ar12

    HD350AR12 3. Product Appearance of the HD350AR12 Power LED: The LED illuminates green when power is applied ARC Mode: Press the button with paper clip or other sharp tool to enable the ARC mode, and then the left LED illuminates blue. Press it again to exit the ARC mode and the LED is off.

  • Page 8: Arc Mode

    HD350AR12 4. ARC Mode The front panel of receiver provides a buttons to enable or disable ARC mode, as below figure shows: Press the button with paper clip or other sharp tool to enable the ARC mode, and then the left LED illuminates blue. Press it again to exit the ARC mode and the LED is off.

  • Page 9: System Connection

    HD350AR12 5. System Connection The following diagram illustrates the typical input and output connections of the extender: 1) The ARC mode of receiver is ON, and the display device (e.g. HDTV) supports ARC. The TV audio is transmitted from the TV back to the receiver via HDMI cable, and then it will be output by the ARC Audio Out port of transmitter.
  • Page 10 HD350AR12 2) The ARC mode of receiver is ON, but the display device (e.g. HDTV) doesn’t support ARC. The TV audio is transmitted from the TV back to the receiver via the audio cable, and then it will be output by the ARC Audio Out port of transmitter.
  • Page 11 HD350AR12 3) The ARC mode of receiver is OFF. The TV audio can’t be back to the ARC Audio Out port of transmitter. The Audio Breakout port of receiver is connected to speaker or amplifier for HDMI source audio de-embedding. HDMI: Audio: RS232:...

  • Page 12: Specifications

    HD350AR12 6. Specifications Video Input (1) HDBT Input Connector (1) RJ45 Input Resolution Up to 4Kx2K@60Hz 4:2:0 Output (1) HDMI Output Connector (1) Type-A female HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDR10 Audio Input (1) ARC Audio In Input Connector (1) Toslink Connector Output...
  • Page 13 HD350AR12 Pass-through Bidirectional PoC Supported 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, HDMI 2.0 Cable Length 1080P ≤ 20m Transmission Standard HDBaseT 1080P@60Hz ≤ 230 feet (70 meters), Transmission Distance 4K@60Hz ≤ 131 feet (40 meters) Operation Temperature -5~ +55℃ Storage Temperature -25 ~ +70℃...
