AVGear AVG-HD300SR-A User Manual

Ultra-thin hdbt 2.0 hdbaset receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVG-HD300SR-A

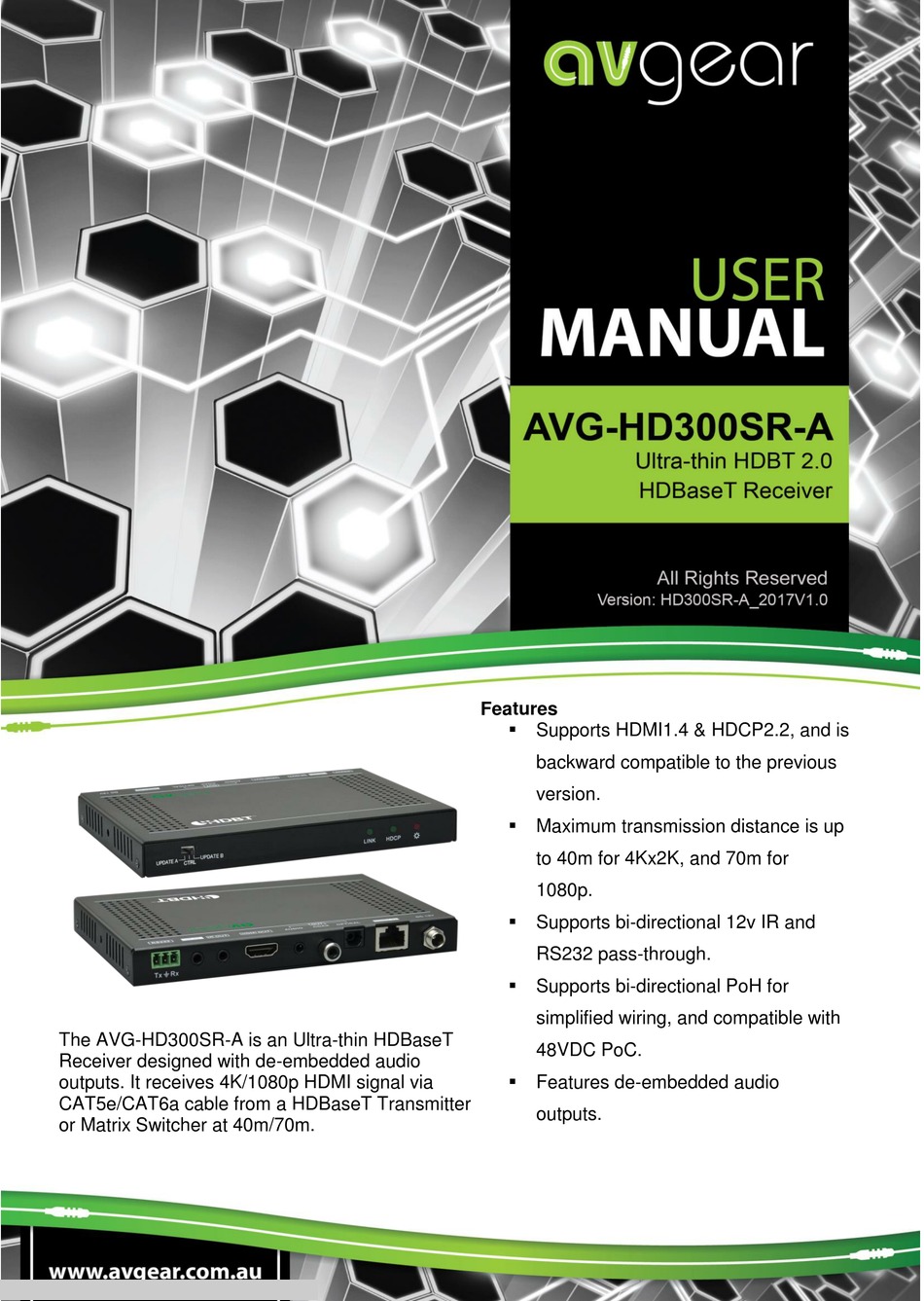

The AVG-HD300SR-A is an Ultra-thin HDBaseT
Receiver designed with de-embedded audio
outputs. It receives 4K/1080p HDMI signal via
CAT5e/CAT6a cable from a HDBaseT Transmitter
or Matrix Switcher at 40m/70m.
Features
 Supports HDMI1.4 & HDCP2.2, and is
backward compatible to the previous
version.
 Maximum transmission distance is up
to 40m for 4Kx2K, and 70m for
1080p.
 Supports bi-directional 12v IR and
RS232 pass-through.
 Supports bi-directional PoH for
simplified wiring, and compatible with
48VDC PoC.
 Features de-embedded audio
outputs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD300SR-A and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD300SR-A

Summary of Contents for AVGear AVG-HD300SR-A

  • Page 1  Supports bi-directional 12v IR and RS232 pass-through.  Supports bi-directional PoH for simplified wiring, and compatible with The AVG-HD300SR-A is an Ultra-thin HDBaseT 48VDC PoC. Receiver designed with de-embedded audio  Features de-embedded audio outputs. It receives 4K/1080p HDMI signal via CAT5e/CAT6a cable from a HDBaseT Transmitter outputs.
  • Page 2 AVG-HD300SR-A PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at September 2017. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD300SR-A SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    Introduction ......................1 Introduction to the AVG-HD300SR-A ............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD300SR-A ............3 Front Panel ....................3.1 Rear Panel ....................3.2 System Connection ....................4 System Applications ..................4.1 Usage Precautions ..................

  • Page 5: Introduction

    1. Introduction 1.1. Introduction to the AVG-HD300SR-A The AVG-HD300SR-A is an Ultra-thin HDBaseT Receiver designed with de-embedded audio outputs. It receives 4K/1080p HDMI signal via CAT5e/CAT6a cable from HDBaseT Transmitter or Matrix Switcher at 40m/70m. It supports unidirectional PoH, the receiver can be powered by HDBaseT Transmitter or Matrix Switcher.

  • Page 6: Product Appearance Of The Avg-Hd300Sr-A

    AVG-HD300SR-A 3. Product Appearance of the AVG-HD300SR-A 3.1. Front Panel UPDATE A UPDATE B LINK HDCP CTRL Name Description CTRL: RS232 pass-through control mode; UPDATE A: Update Valens IC program, connect a PC to the RS232 port, and then double-click the update file RS232 MODE ①...

  • Page 7: Rear Panel

    AVG-HD300SR-A 3.2. Rear Panel RS232 IR IN IR OUT HDMI OUT AUDIO COAX OPTICAL HDBT IN DC 12V Name Description If one is connected with control device (e.g. PC), then the ① RS232 connector transmitter or matrix should be connected with the third- party device that needs to be controlled.

  • Page 8: System Connection

    AVG-HD300SR-A 4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD300SR-A ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.

  • Page 9: Connection Procedure

    AVG-HD300SR-A 4.4. Connection Procedure Step 1. Connect a HDMI source (such as Blu-ray DVD) to HDMI IN port of the transmitter with a HDMI cable. Step 2. Connect the HDBT OUT port of the transmitter to HDBT IN port of the receiver through a straight-thru CAT5e/CAT6a cable.

  • Page 10: Specifications

    AVG-HD300SR-A 5. Specification Video Video Input (1) HDBT IN Video Input Connector (1) RJ45 Video Output (1) HDMI OUT Video Output (1) HDMI type A Connector Audio (1) AUDIO OUT; (1) COAX OUT; (1) OPTICAL Audio Output (1) 3.5mm stereo audio socket; (1) Coaxial audio Audio Output connector;...

  • Page 11: Panel Drawing

    AVG-HD300SR-A 6. Panel Drawing 152 mm UPDATE B UPDATE A LINK HDCP CTRL...

  • Page 12: Troubleshooting & Maintenance

    AVG-HD300SR-A 7. Troubleshooting & Maintenance No image on the display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the Source/Transmitter and the Receiver/Display are properly connected and are working. Test the HDMI cables directly from a source to the display and ensure correct operation.
