AVGear AVG-HD300SR User Manual

Ultra-thin hdbt 2.0 hdbaset receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

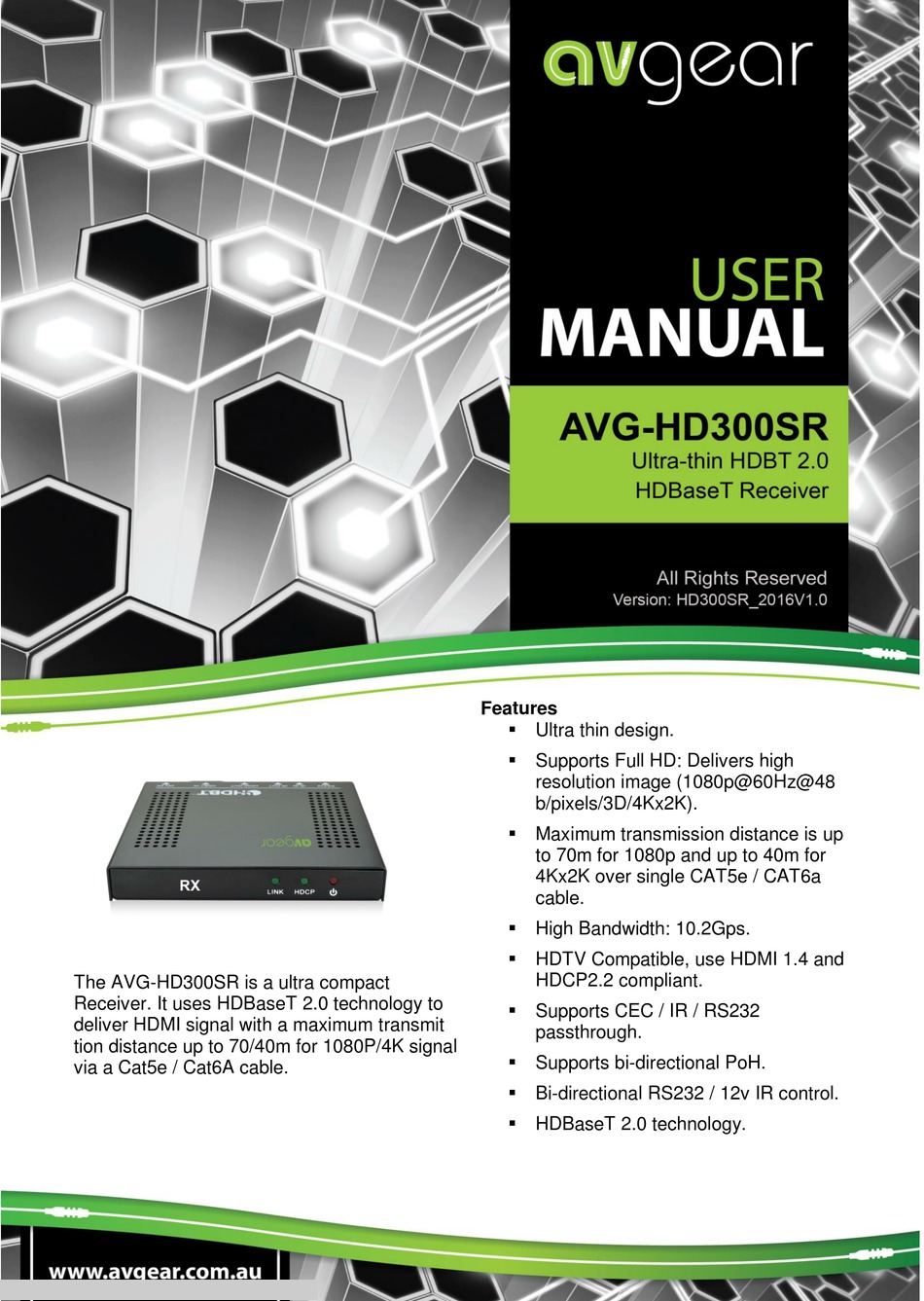

AVG-HD300SR

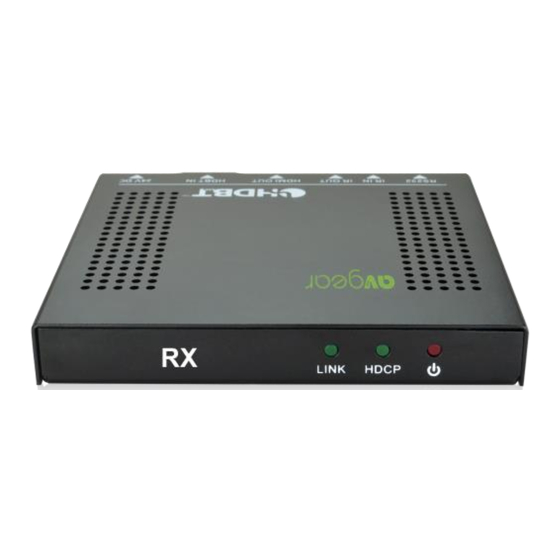

The AVG-HD300SR is a ultra compact
Receiver. It uses HDBaseT 2.0 technology to
deliver HDMI signal with a maximum transmit
tion distance up to 70/40m for 1080P/4K signal
via a Cat5e / Cat6A cable.
Features
 Ultra thin design.
 Supports Full HD: Delivers high
resolution image (1080p@60Hz@48
b/pixels/3D/4Kx2K).
 Maximum transmission distance is up
to 70m for 1080p and up to 40m for
4Kx2K over single CAT5e / CAT6a
cable.
 High Bandwidth: 10.2Gps.
 HDTV Compatible, use HDMI 1.4 and
HDCP2.2 compliant.
 Supports CEC / IR / RS232
passthrough.
 Supports bi-directional PoH.
 Bi-directional RS232 / 12v IR control.
 HDBaseT 2.0 technology.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD300SR and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD300SR

Summary of Contents for AVGear AVG-HD300SR

  • Page 1  High Bandwidth: 10.2Gps.  HDTV Compatible, use HDMI 1.4 and HDCP2.2 compliant. The AVG-HD300SR is a ultra compact Receiver. It uses HDBaseT 2.0 technology to  Supports CEC / IR / RS232 deliver HDMI signal with a maximum transmit passthrough.
  • Page 2 AVG-HD300SR PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at December 2016. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD300SR SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    AVG-HD300SR TABLE OF CONTENTS Introduction ......................Introduction to the AVG-HD300SR ..............1.1 Features ......................1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD300SR ................................3.1 Receiver System Connection ......................................4.1 System Applications Usage Guidelines..................4.2 Connection Diagram ..................4.3 Connection Procedure .................4.4...

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to the AVG-HD300SR The AVG-HD300SR is a mini-size HDBT Receiver. HDBT 2.0 technology is used to transmit a high resolution 1080p / 4K signal to the receiver up to 70 / 40m via a Cat5e / Cat6A cable.

  • Page 6: What's In The Box

    AVG-HD300SR 2. What’s in the Box  1 x AVG-HD300SR (Receiver)  2 x Mounting Brackets  4 x Screws  4 x Rubber Feet  1 x RS232 cables  1 x User Manual Note: Please confirm if the product and the accessories are all included, if not, please...

  • Page 7: Product Appearance Of The Avg-Hd300Sr

    AVG-HD300SR 3. Product Appearance of the AVG-HD300SR 3.1. Receiver LINK HDCP Name Description HDBT Link Status indicator.  OFF: No Link ① LINK  GREEN: Link Successful  Blinking GREEN: Link Error HDCP compliant indicator  OFF: No HDMI traffic (no picture output) ②...

  • Page 8: System Connection

    AVG-HD300SR 4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD300SR ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.

  • Page 9: Connection Procedure

    Step 4. Connect a DC24V power adaptor to the power port of the transmitter or the receiver as the other will be powered via the PoH. Note: If you are connecting the AVG-HD300SR to a HDBT matrix that supports PoC, you will not require the DC24V power supply at the receiver.

  • Page 10: Specifications

    AVG-HD300SR 5. Specifications Model Receiver Spec Input 1 x IR IN 1 x RS232 Signal 1 x HDBT IN 1 x 3.5mm mini jack 1 x 3p captive screw connector Connector 1 x RJ-45 Digital audio, transmit through HDMI audio...

  • Page 11: Supported Resolutions

    AVG-HD300SR 5.1 Supported Resolutions Aspect Ratio Resolution Refresh Rate 4096x2160 30Hz 4Kx 2K 3840x2160 24/25/30Hz 1920x1080 60Hz 1600x900 60Hz 16:9 1366x768 60Hz 1280x720 60Hz 1024x576 60Hz 1920x1200 60Hz 1680x1050 60Hz 16:10 1360x768 60Hz 1280x800 60Hz 1600x1200 60/65/70/75/85Hz 1280x1024 60/75/85/96Hz 1024x768...

  • Page 12: Panel Drawing

    AVG-HD300SR 6. Panel Drawing LINK HDCP 115 mm Receiver...

  • Page 13: Troubleshooting & Maintenance

    AVG-HD300SR 7. Troubleshooting & Maintenance No image on the display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the Source/Transmitter and the Receiver/Display are properly connected and are working. Test the HDMI cables directly from a source to the display and ensure correct operation.
