Instruction Manual: 1900944
Machine P/N: 1000944#, 1001944US

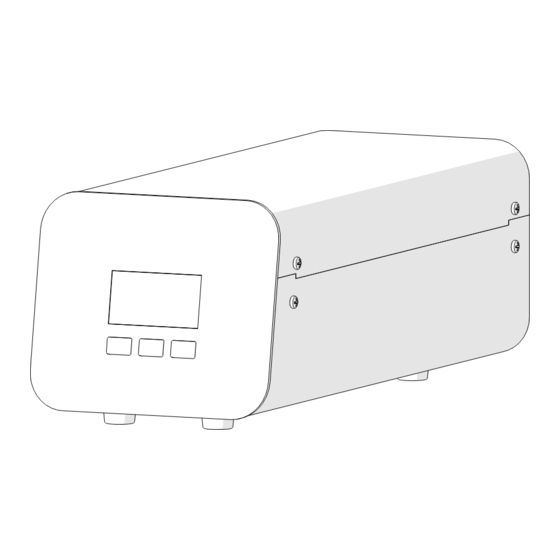

POUR'D
Control Box
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POUR'D 1000944 and is the answer not in the manual?

Questions and answers

Related Manuals for Marco POUR'D 1000944

Summary of Contents for Marco POUR'D 1000944

  • Page 1 Instruction Manual: 1900944 POUR’D Machine P/N: 1000944#, 1001944US Control Box...

  • Page 2: Table Of Contents

    Contents 1.Box Contents......................3 2.Connections......................4 3. Introduction/Safety.....................6 4.Installation......................8 -POUR’D 3 Button font with Boiler..............8 -POUR’D 3 Button font with Chiller............11 -POUR’D 3 Button font with Boiler & Chiller..........14 -POUR’D 3 Button diluted concentrate.............17 -POUR’D 3 Button (Multiple source)............20 5.Engineering Setup & Calibration.................23 6.Changing Buttons....................24 7.Cleaning......................25 8.Font Operation....................26...

  • Page 3: Box Contents

    Box Contents Item Part Number Quantity Control Box 1000944 / 1000944EU / 1001944US IEC Power Cable 1501489 / 1501488 / 1501506 QCD Connector for BIB (US) 2100045 Scholle BIB Connector (US) 2100044 Hose Water Inlet 9/16”-24 UNEF (US) 1800693 Valve Elbow 3/4” to 1/4” Pushfit Elbow 1400829 Soft Tubing for BIB connector (1m) 1800521...

  • Page 4: Connections

    Connections This equipment must be installed with adequate backflow protection to comply with all applicable federal, state and local codes. Connect to Connect to font IEC Power boiler or another control box cable or chiller (if applicable) Beverage In Concentrate/Syrup Inlet pressure 0.0-0.01 Mpa (0-1.45psi) Ambient temperature...
  • Page 5 Connections...

  • Page 6: Introduction/Safety

    Introduction The information provided in this manual is intended to assist in the installation and maintenance of the POUR’D Control Box. Please read the instructions carefully to prevent accidents and ensure an efficient installation. This manual is not a substitute for any safety instructions or technical data affixed to the machine or its packaging.
  • Page 7 CAUTION SANITISATION Before sanitising the equipment, carefully read the instructions given by the sanitisation product manufacturer and put on all the necessary personal protective equipment (gloves, masks, etc.). Ensure that the premises are well ventilated. The sanitisation operations should only be carried out by specialised technical assistance personnel.

  • Page 8: Installation

    Installation POUR’D 3 BUTTON FONT WITH BOILER DILUTED CONCENTRATE WITH HOT OR AMBIENT WATER & CONCENTRATE SHOT 3 button connections (1000942 3b concentrate) Connecting Hoses For use with boiler Never place beverage source above control box (1800521) to avoid concentrate spilling on machine Plumbed...
  • Page 9 Installation Short Tube Water (1/4”) Din connector Long Tube to font Beverage (1/4”) Hot water from boiler 8mm tube IEC Power cable Uk/ EU/ US plug depending on Region Vent to boiler Beverage tube control box to font (1800372) Link cable from Pour’d box to Water Tube Boiler...
  • Page 10 Installation Control box setup 1-Press3 buttons, short hold Factory preset Descale weeks: Mode: UC MIX BOTH Filter Litres: DEFAULT Temp Units: °C Set Pin: Next Next 2-Set up each button Factory preset Factory preset Mode: UC SINGLE Mode: SINGLE° Temp Units: °C Temp Units: 85°...

  • Page 11: Pour'd 3 Button Font With Chiller

    Installation POUR’D 3 BUTTON FONT WITH CHILLER DILUTED CONCENTRATE WITH COLD, SPARKLING OR AMBIENT WATER & CONCENTRATE SHOT 3 button connections (1000942 3b concentrate) Connecting Hoses For use with chiller Cold/Sparkling water (1800372) Din connector to font Power Cable Beverage tube control box to font (1800372) (1400829/1400836)
  • Page 12 Installation Short Tube Water (1/4”) Din connector Long Tube to font Beverage (1/4”) IEC Power cable Uk/ EU/ US plug depending on Region Beverage tube control box to font (1800372) Link cable from Pour’d box to Water Tube Chiller (1800372) Power connector Chiller (1800637)
  • Page 13 Installation Control box setup 1-Press3 buttons, 2-Navigate up to 3-Select YES to long hold Chiller Present confirm presensce Calibrate Hot water Calibrate Hot water Factory preset Descale weeks: RTD speed RTD speed Mode: UC MIX BOTH Filter Litres: DEFAULT Set Pin: Temp Units: °C Chiller present...

  • Page 14: Pour'd 3 Button Font With Boiler & Chiller

    Installation POUR’D 3 BUTTON FONT WITH BOILER & CHILLER DILUTED CONCENTRATE WITH HOT, COLD, SPARKLING OR AMBIENT WATER & CONCENTRATE SHOT 3 button connections (1000942 3b concentrate) Beverage tube control box to font Din connector (1800372) to font Hot water from boiler 8mm tube Water Tube...
  • Page 15 Installation Short Tube Water (1/4”) Din connector Long Tube to font Beverage (1/4”) Hot water from boiler 8mm tube IEC Power cable Uk/ EU/ US plug depending on Region Vent to boiler Beverage tube control box to font (1800372) Link cable from Pour’d box to Water Tube Chiller...
  • Page 16 Installation Control box setup 1-Press3 buttons, 2-Navigate up to 3-Select YES to long hold Chiller Present confirm presensce Calibrate Hot water Calibrate Hot water Descale weeks: Factory preset RTD speed RTD speed Mode: UC MIX BOTH Filter Litres: DEFAULT Temp Units: °C Set Pin: Chiller present...

  • Page 17: Pour'd 3 Button Diluted Concentrate

    Installation POUR’D DILUTED CONCENTRATE (3B, 3 volumes or ratios) Soft tubing to Beverage source Mains 1800521) water (2100043) Never place beverage source above control box to avoid concentrate spilling on machine...
  • Page 18 Installation Short Tube Water (1/4”) Din connector Long Tube to font Beverage (1/4”) IEC Power cable Uk/ EU/ US plug depending on Region Beverage tube control box to font (1800372) Water Tube (1800372) Mains Water (1800637) (1400829/1400836) Soft tubing to (1400773) Beverage source 1800521)
  • Page 19 Installation Control box setup for diluted concentrate 1-Press3 buttons, short hold Factory preset Descale weeks: Mode: UC MIX BOTH Filter Litres: DEFAULT Set Pin: Temp Units: °C Next Next 2-Set up each button Factory preset Factory preset Mode: UC SINGLE Mode: SINGLE°...

  • Page 20: Pour'd 3 Button (Multiple Source)

    Installation POUR’D MULTIPLE SOURCE READY TO DRINK 3 button connections (1000942 3b concentrate) Soft tubing to Beverage source 1800521) (2100043)
  • Page 21 Installation Beverage 1 Long Tube (1/4”) Beverage 2 Din connector 8mm tube to font (reduced to 1/4”) Beverage tube (1400839) control box to font (1800372) Link from Control Box 1 Boiler/Chiller to Control Box 2 Font connection Control Box 2 Control Box 1 IEC Power cable Uk/ EU/ US plug...
  • Page 22 Installation Control box setup 1-Press3 buttons, short hold 2-Set up each button Factory preset Descale weeks: Mode: UC MIX BOTH Filter Litres: DEFAULT Temp Units: °C Set Pin: Next Next Control box n1 Directly in line with font must be set to PRIMARY MODE % CONCENTRATE Factory preset...

  • Page 23: Engineering Setup & Calibration

    Engineering Setup & Calibration 1- Long hold until Spanner appears Factory preset Descale weeks: Mode: UC MI Filter Litres: Temp Units: Set Pin: Next Next Calibrate conc pump Calibrate Cold water Calibrate Hot water Factory preset Factory preset Mode: Mode: UC SINGLE SINGLE°...

  • Page 24: Changing Buttons

    Changing Buttons Programmable buttons Program and change buttons accordingly...

  • Page 25: Cleaning

    Cleaning CLEANING PROCEDURE inlet MUST BE DONE DAILY Clean 1.Disconnect tubing from beverage output to be weighed source. Mains water 2.Put tubing into a bucket of cleaning solution. We recommend Urnex Rinza Start cleaning? Milk System cleaner for alternative milk and beverages or Urnex Cafiza 2 for coffee based beverages.

  • Page 26: Font Operation

    Font Operation 1. Push & Hold 2. Push & Release RISK OF SCALDING If using a boiler, turn off before cleaning to prevent accidental triggering of a dispense. Beware of accidentally operating the control box especially when cleaning around the push buttons. Do not use abrasive cloths or creams, as this will spoil the finish of the control box.
  • Page 27 Marco Beverage Systems Limited. 63d Heather Road, Sandyford Industrial Estate, Dublin 18 t: +353 (0)1 295 2674 f: +353 (0)1 295 3715 e: sales@marco.ie www.marcobeveragesystems.com...
