Everex WT-23 User Manual

Everex Communications, Inc
WT-23 User's Manual:

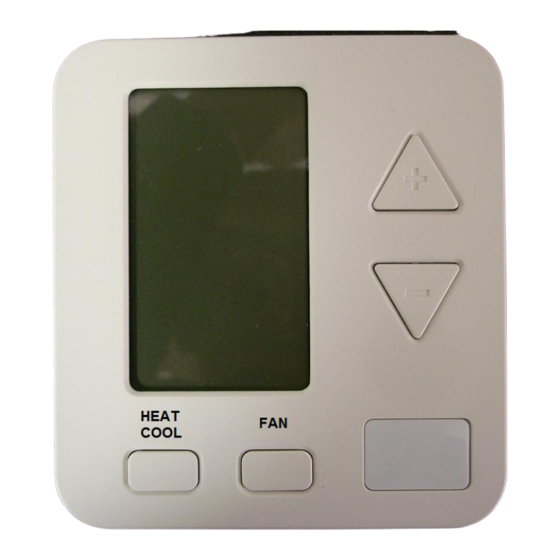

WT-23 is a thermostat with a wireless radio which controls the setting of
an Air Conditioning/Heating (AC/Heating) unit based on user's inputs. The
thermostat consists of a LCD display which shows the current setting to the user,
an occupancy sensor which detects the state of occupancy and 4 buttons for
user's setting. The unit can be powered by 2 AA batteries or from a low voltage
external power source.

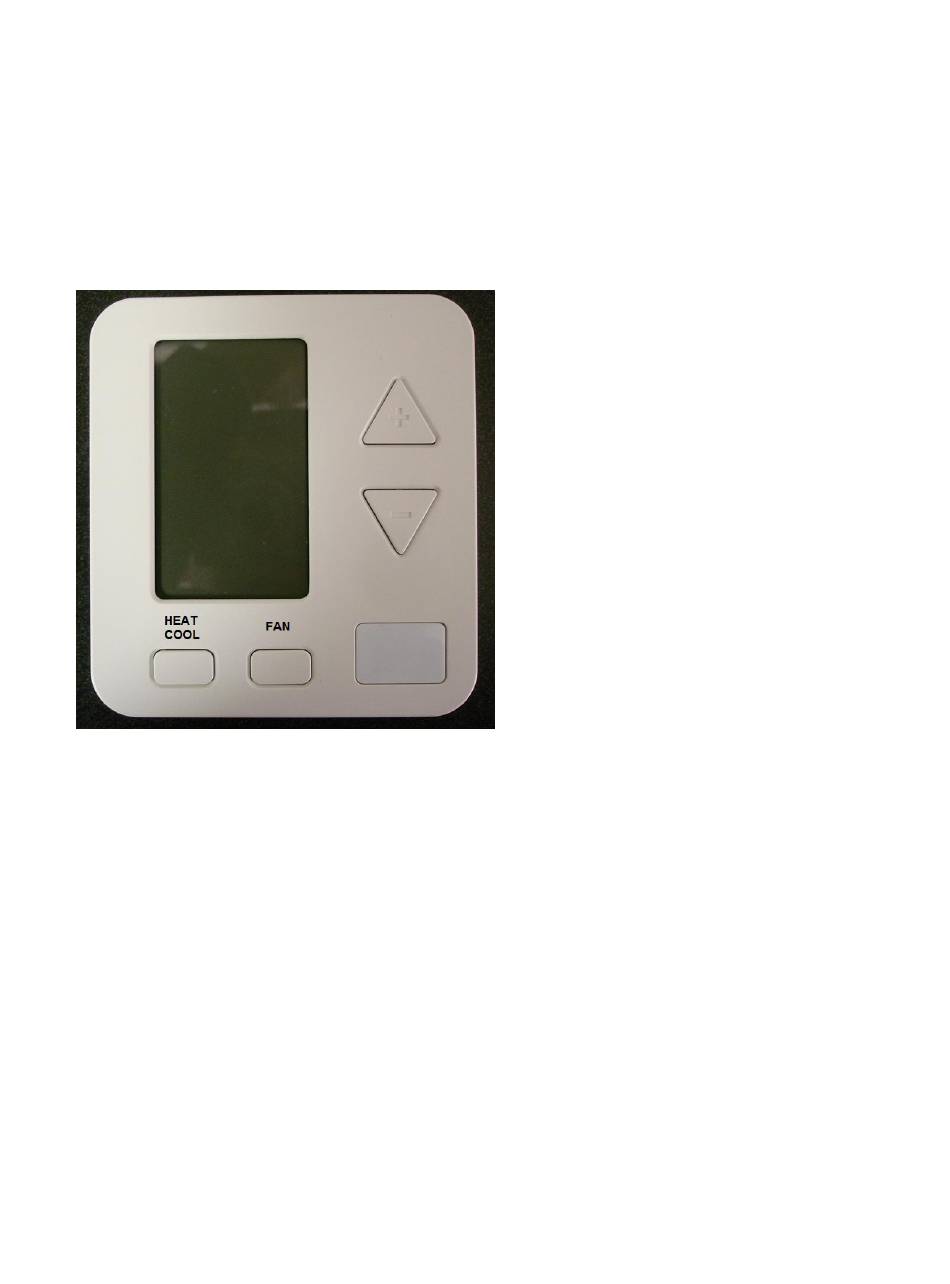

There are 4 buttons on the unit, namely HEAT COOL, FAN, Up Arrow and
Down Arrow. The following are the functions of these buttons.
HEAT COOL – To select OFF, HEAT or COOL mode.
FAN – To change the fan speed to HIGH speed or LOW speed setting or OFF.
UP Arrow/DOWN Arrow – To increase (Up) or decrease (Down) temperature
setting.
The LCD displays the current setting of the thermostat. If the user
changes the setting of the AC/Heating unit, the WT-23 will also update the LCD
display to match the setting of the AC/Heating unit.

Installation

Pull the plastic cover from the base plate. Mount the base plate onto the
wall where there is a good circulation of air. Install 2 AA alkaline batteries to the
battery holders or connect the external power source wiring to the screw
terminal. Press the SETUP button to bind WT-23 radio to a host device. Once
they are bound, install the plastic cover back onto the base plate.
