WT-11 User's Manual:
WT-11 is a thermostat with a wireless radio which controls the setting of
an Air Conditioning/Heating (AC/Heating) unit based on user's inputs on a
keypad. There is a LCD on the unit to display the current setting to the user.
WT-11 operates on 2 AAA alkaline batteries and they can last up to 2 years
under normal operation.
There are 6 buttons on the unit, namely Off, Cool, Heat, Up Arrow, Down
Arrow, Fan. The following are the explanation of these buttons.
OFF – To turn WT-11 and AC/Heating unit off.
COOL – To turn on the cooling function on the AC/Heating unit.
HEAT– To turn on the heating function on the AC/Heating unit.
Up Arrow/Down Arrow – To increase (Up) or decrease (Down) temperature
setting on the AC/Heating unit.
FAN – To change the speed of the fan to high speed or low speed setting.
The LCD displays the current setting of the thermostat. If the user change
the setting of the AC/Heating unit, the WT-11 will update the LCD display to
match the setting of the AC/Heating unit.

Installation

Pull the plastic cover from the base plate. Mount the base plate onto the
wall where there is a good circulation of air. Install 2 AAA alkaline batteries to
the battery clips on the PCB. Press the push button to bind WT-11 radio to a
host device. Once they are bound, install the plastic cover back onto the base
plate.

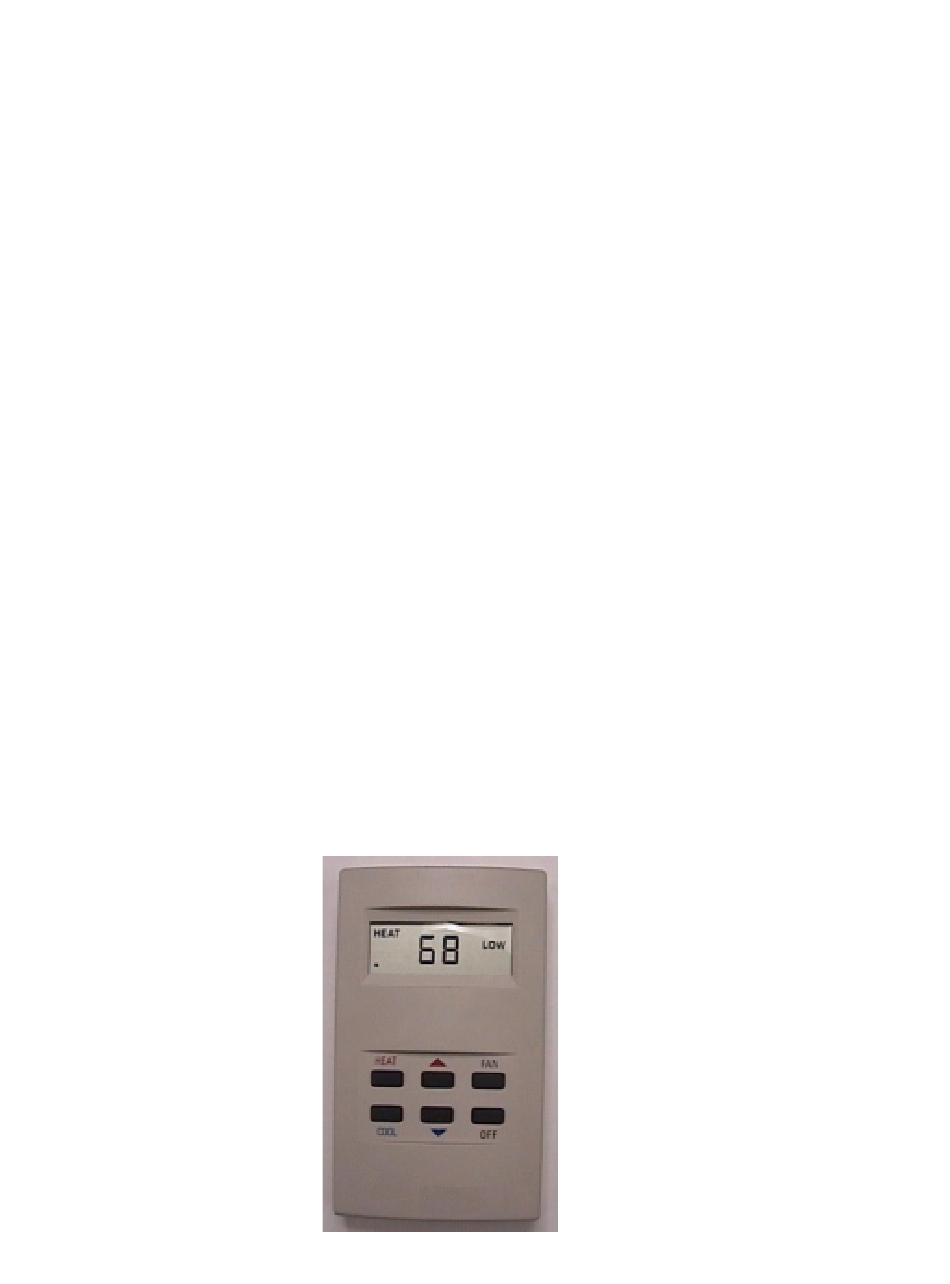

WT-11
