WT-42 User's Manual:
WT-42 is a wired thermostat, with optional remote management capability,
which controls the setting of a Heating/Air Conditioning/Ventilation Heating
(HVAC) unit based on user's inputs. The thermostat consists of a LCD display
which shows the current setting to the user, an occupancy sensor which detects
the state of occupancy and 4 buttons for user's setting. The unit is powered from
a 24VAC Class 2 transformer.

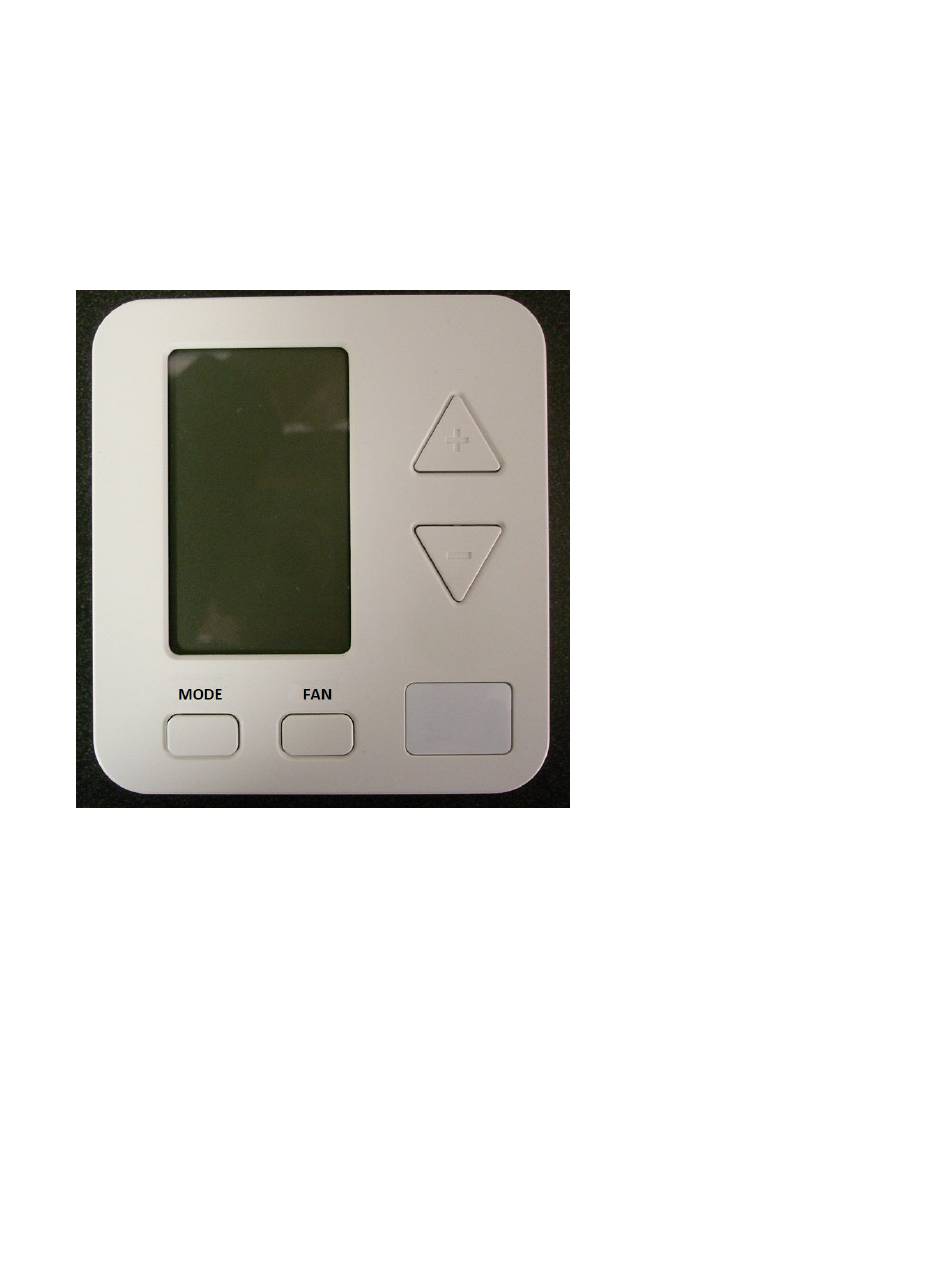

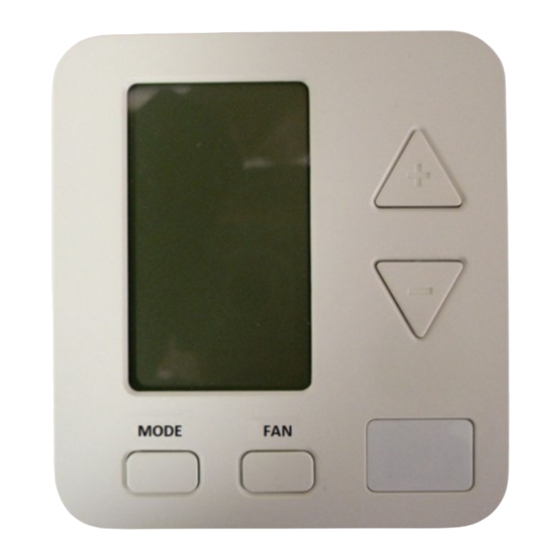

There are 4 buttons on the unit, namely MODE, FAN, Up Arrow and Down
Arrow. The following are the functions of these buttons.
MODE – To select OFF, HEAT or COOL mode.
FAN – To change the fan speed to HIGH speed or LOW speed setting or AUTO.
UP Arrow/DOWN Arrow – To increase (Up) or decrease (Down) temperature
setting.

Installation

Switch off the power to the 24VAC transformer. Pull the plastic front cover
from the base plate. Mount the base plate onto the wall, about 5 feet from the
ground, where the thermostat has good circulation of air, and is not in direct
sunlight or near any heat source. Route the wirings from the wall through the
base plate opening and connect them to the screw terminal on the back side of
the thermostat as shown in the following figures, depending on your HVAC
configuration. Switch on the power to the transformer. If there is a remote
