Xtreme Lumens
Xtreme Lumens
Rechargeable - Multi-Function
Rechargeable - Multi-Function
High
Medium
Low
Strobe
800
800
Lumens
Lumens
• 2 Hours run-time
• 2 Hours run-time
• Momentary or constant-on with 3 brightness levels & strobe
• Momentary or constant-on with 3 brightness levels & strobe
• Beam distance rated at 205 meters
• Beam distance rated at 205 meters
• Aircraft-grade 6061-T6 aluminum housing
• Aircraft-grade 6061-T6 aluminum housing
• Powered by Lithium-ion rechargeable battery
• Powered by Lithium-ion rechargeable battery
™
™
™
Tactical Flashlight
Tactical Flashlight

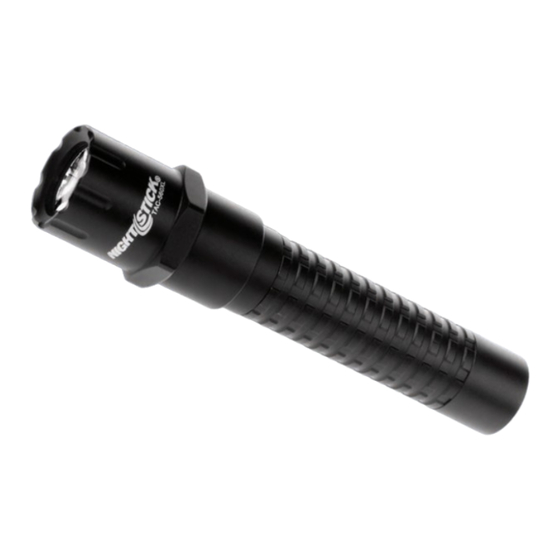

This compact rechargeable multi-function metal Xtreme
Lumens™ tactical ashlight uses a CREE® LED rated at 800
lumens that works in conjunction with a high-e ciency
deep parabolic re ector to create a usable beam rated at
205 meters. The tail-cap switch provides momentary or
constant-on functionality, a set of user-selectable high,
medium or low-brightness settings as well as a disorienting
strobe. The housing and tail-cap are made from aircraft-
grade 6061-T6 aluminum and have a Type III hard anodized
nish. Power comes from a rechargeable Lithium-ion
battery and includes the ability to run from a pair of CR-123
batteries (batteries not included) thanks to the CR-123
Battery Carrier (included)..
560XL
560XL
TAC
TAC
Advertisement
Table of Contents
Related Manuals for NightStick Xtreme Lumens TAC-560XL
Summary of Contents for NightStick Xtreme Lumens TAC-560XL
- Page 1 ™ Xtreme Lumens Xtreme Lumens Tactical Flashlight Tactical Flashlight ™ ™ Rechargeable - Multi-Function Rechargeable - Multi-Function This compact rechargeable multi-function metal Xtreme Lumens™ tactical ashlight uses a CREE® LED rated at 800 lumens that works in conjunction with a high-e ciency deep parabolic re ector to create a usable beam rated at 205 meters.
-
Page 2: Specifications
560XL 560XL High-efficiency deep parabolic reflector Xtreme Lumens Xtreme Lumens Tactical Flashlight Tactical Flashlight ™ ™ Rechargeable - Multi-Function Rechargeable - Multi-Function Large textured tail-switch FEATURES SPECIFICATIONS § Lumens: high-800, medium-350, low-140, strobe-600 § Super-bright Xtreme Lumens™ design §Run-time: high-2.0 hrs, medium-3.75 hrs, low-8.75 hrs, strobe-3.25 hrs §... -
Page 3: Product Data
PRODUCT DATA TAC-560XL Xtreme Lumens Metal Multi-Function Tactical Flashlight - Rechargeable ™ MARKET APPLICATIONS Law enforcement, re & rescue, industrial, security, hardware/tool, automotive, hunting/recreation. This compact rechargeable multi-function metal Xtreme Lumens™ tactical ashlight uses a CREE® LED rated at 800 DESCRIPTION lumens that works in conjunction with a high-e ciency deep parabolic re ector to create a usable beam rated at 205 meters. -
Page 4: Initial Use
The maximum charge time required is approximately 4 hours. DAILY USE Use only the supplied Nightstick charger, battery and AC or DC adapter. For best performance, charge the TAC when the fl ashlight beam starts to Instruction Manual dim. -
Page 5: Record Your Warranty Information
BAYCO PRODUCTS LIMITED LIFETIME WARRANTY WARRANTY Bayco Products, Inc. warrants this product to be free from defects in workmanship and materials for the original purchaser’s lifetime. The Limited Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and included accessories are warranted for a period of two years with proof of purchase. - Page 6 BAYCO PRODUCTS LIMITED LIFETIME WARRANTY WARRANTY Bayco Products, Inc. warrants this product to be free from defects in workmanship and materials for the original purchaser’s lifetime. The Limited Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and included accessories are warranted for a period of two years with proof of purchase.
- Page 7 Nightstick Product Battery Replacement Information Nightstick Nightstick Replacing AA, AAA Battery Product Part Battery Type & Replacing CR-123 Rechargeable Rechargeable Intrinsically Safe Certification How to Open Battery Compartment Tool Required or AAAA Alkaline Carrier Number Quantity w/ Rechargeable Upgrade Replacement Alkaline Battery Requirements** w/ Rechargeable Required Option Battery No, will damage FDL-300R Unscrew Tail Cap None 2 - CR-123 product No, will damage FDL-300R-K01 Unscrew Tail Cap None 2 - CR-123 product NiCad or NiMH MT-100 Unscrew Tail Cap...
- Page 8 Nightstick Nightstick Replacing AA, AAA Battery Product Part Battery Type & Replacing CR-123 Rechargeable Rechargeable Intrinsically Safe Certification How to Open Battery Compartment Tool Required or AAAA Alkaline Carrier Number Quantity w/ Rechargeable Upgrade Replacement Alkaline Battery Requirements** w/ Rechargeable Required Option Battery NiCad or NiMH NSP-1170 Slide Battery Cover toward base of light None 4 - AA Only* NiCad or NiMH NSP-1172 Slide Battery Cover toward base of light None 4 - AA Only* NiCad or NiMH NSP-1174 Slide Battery Cover toward base of light None...
- Page 9 Nightstick Nightstick Replacing AA, AAA Battery Product Part Battery Type & Replacing CR-123 Rechargeable Rechargeable Intrinsically Safe Certification How to Open Battery Compartment Tool Required or AAAA Alkaline Carrier Number Quantity w/ Rechargeable Upgrade Replacement Alkaline Battery Requirements** w/ Rechargeable Required Option Battery NiCad or NiMH NSP-1636 Unscrew Cap at base of light None 3 - AAA AAA Carrier Only* Unscrew Bezel and slide Reflector/LED NiCad or NiMH NSP-2422B None 3 - AA Module out Only* Unscrew Bezel and slide Reflector/LED NiCad or NiMH...
- Page 10 Nightstick Nightstick Replacing AA, AAA Battery Product Part Battery Type & Replacing CR-123 Rechargeable Rechargeable Intrinsically Safe Certification How to Open Battery Compartment Tool Required or AAAA Alkaline Carrier Number Quantity w/ Rechargeable Upgrade Replacement Alkaline Battery Requirements** w/ Rechargeable Required Option Battery No, will damage TAC-300Y Unscrew Tail Cap None 2 - CR-123 product No, will damage TAC-302B Unscrew Tail Cap None 2 - CR-123 product No, will damage TAC-302B-K01 Unscrew Tail Cap None...
- Page 11 Nightstick Nightstick Replacing AA, AAA Battery Product Part Battery Type & Replacing CR-123 Rechargeable Rechargeable Intrinsically Safe Certification How to Open Battery Compartment Tool Required or AAAA Alkaline Carrier Number Quantity w/ Rechargeable Upgrade Replacement Alkaline Battery Requirements** w/ Rechargeable Required Option Battery Loosen Bezel Screw, unscrew Bezel and Invalidates IS Duracell PC1500, Energizer EN91 or XPP-5420GX Phillips Screwdriver 3 - AA slide Reflector/LED Module out Certification Energizer L91 Loosen Bezel Screw, unscrew Bezel and Invalidates IS Duracell PC1500, Energizer EN91 or XPP-5422B Phillips Screwdriver 3 - AA slide Reflector/LED Module out...
- Page 12 Accept no compromises, choose only quality tactical gear.
