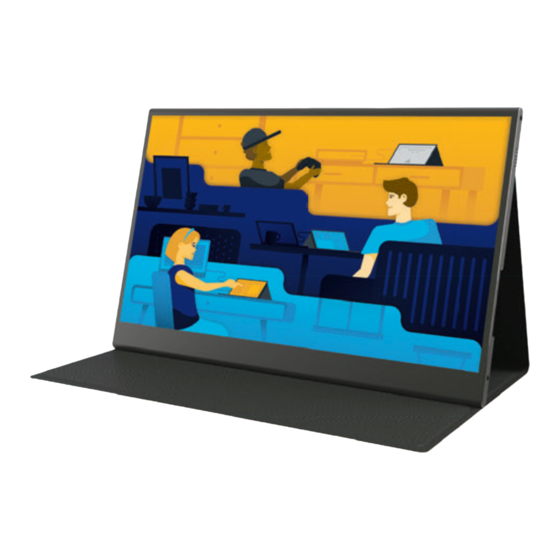

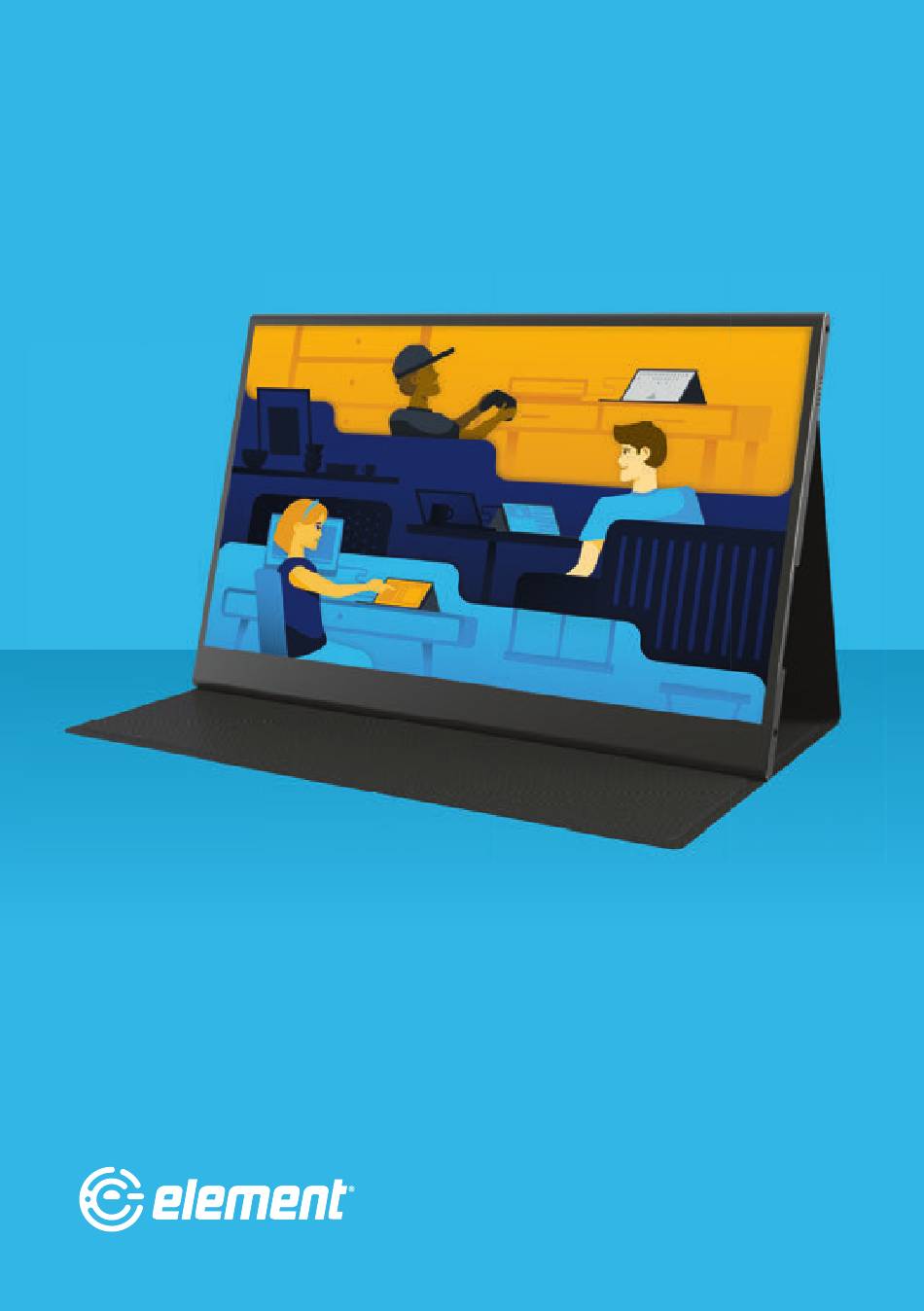

- Page 1 15.6" PORTABLE MONITOR EM2PTAD15BS USER MANUAL...
- Page 2 2 year warranty pre-registering and special off ers product updates with product your product. from Element. and notifi cations. registration* WE’RE HERE TO HELP Find resources and get help for product setup, connecting devices, technical issues, downloading manuals and more! We’re available 24 hours a day, 7 days a week...
-
Page 3: Table Of Contents
TABLE OF CONTENTS What’s in the box ����������������������������������������������������� 4 Getting started ��������������������������������������������������������� 4 How to use the folio case ������������������������������������������ 5 Common connectivity options ��������������������������������� 6 Device compatibility ��������������������������������������������������7 On-screen display (OSD) ������������������������������������������� 8 Troubleshooting ������������������������������������������������������� 9 Specifications �������������������������������������������������������� 10 FCC statement &... -
Page 4: What's In The Box
WHAT’S IN THE BOX USB-C to Mini HDMI to USB power USB to USB-C 15�6" Portable Monitor USB-C cable HDMI cable adapter power cable GETTING STARTED Screen – Monitor display. Power/on-screen display (OSD) button – Press to power the monitor on or press and hold Folio case /stand –... -
Page 5: How To Use The Folio Case
HOW TO USE THE FOLIO CASE The folio case provides protection and can be used to support the monitor as a stand. Its integrated design is built-in to the monitor and should not be removed. Step 1: Align the folio case with the opening at the top and the screen facing forward. -
Page 6: Common Connectivity Options
COMMON CONNECTIVITY OPTIONS Connect to USB-C Devices USB-C to USB-C Cable • For compatible USB-C devices with DP Alt Mode. • Power adapter (included) may be required to power the monitor if source device does not have adequate power supply. •... -
Page 7: Device Compatibility
DEVICE COMPATIBILITY USB Power Connection Touchscreen Device Supply Type Function Required? Windows devices USB-C to USB-C with USB-C cable (DP Alt Mode) Yes – Limited Mac computer USB-C to USB-C functionality, with with USB-C (DP cable 1-point touch Alt Mode) recognition. -
Page 8: On-Screen Display (Osd)
ON SCREEN DISPLAY (OSD) Brightness Adjusts the brightness of the display Contrast Adjusts the contrast of the display Luminance Black Level Adjusts the brightness of the darkest parts of the display Setup Picture Mode Adjusts the picture settings for different uses Toggles HDR on/off for greater color contrast Color Temp Adjusts the color temperature mode... -
Page 9: Troubleshooting
TROUBLESHOOTING Possible Reason Solution Problem The start-up Use the included power supply Insufficient screen is flashing or ensure your power source is power supply on and off outputting at least 15W Ensure your host device can receive The touchscreen Incompatible touch data via USB-C. -
Page 10: Specifications
SPECIFICATIONS Screen Size 15.6" diagonally Panel Type Touchscreen 10-point touch for compatible devices Native Resolution 1920 x 1080 Refresh Rate 60 Hz Response Time 3 ms (with overdrive function on) Brightness 270 cd/m2 Contrast Ratio 1000:1 Aspect Ratio 16:9 Display Colors 16.7 million Speakers Stereo, 1W x 2... -
Page 11: Fcc Statement & Disclosures
FCC statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Warranty
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by Element TV Company, LP (“Element”) to the original purchaser of the Product (the “Original Customer” or “you”) against defects in material and workmanship (“Warranty”) as follows:... - Page 13 United States and Canada. All replaced parts and Products, and Products on which a refund is made, become the property of Element. The addition of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty.
-
Page 14: Safety Instructions
PLEASE DIRECT ALL CORRESPONDENCE TO: • Keep these instructions – The safety Element TV Company, LP Customer Service and operating instructions should be retained for future reference. customerservice@elementelectronics.com •... - Page 15 As a consumer, are responsible for ensuring that this product is disposed of properly. Element offers environmentally responsible options to recycle your unwanted consumer electronics device. More information can be found by visiting: www.elementelectronics.com/sustainability...
- Page 16 Bring it home� Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. ©2023, Element Brand Holding, LLC, All Rights Reserved.
