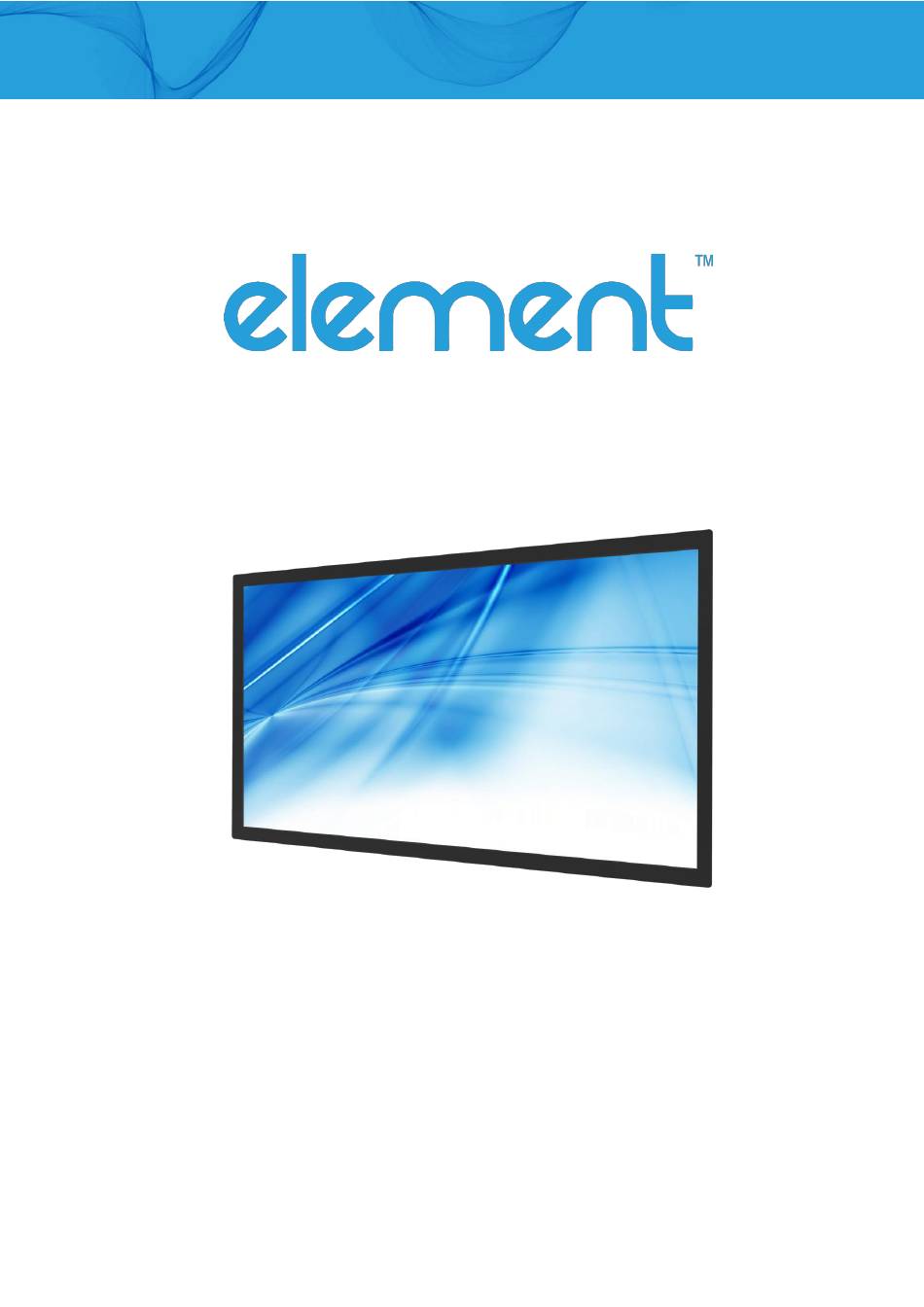

- Page 1 User Manual M43-FHD User Manual M43-FHD User Manual P a g e...
- Page 2 Element. The information in this document is subject to change without notice. Element makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
- Page 3 The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. M43-FHD User Manual P a g e...
- Page 4 2014/35/EU sur les limites de basse tension Avertissement : Ceci est un produit de classe A. Dans un environnement résidentiel ce produit peut causer des parasites radio auquel cas l’utilisateur peut être tenu de prendre les mesures nécessaires. M43-FHD User Manual P a g e...
- Page 5 Do not use abrasive cleaners, waxes or solvents for your cleaning. ▪ Do not operate the product under the following conditions: Extremely hot, cold or humid environment. Areas susceptible to excessive dust and dirt. Near any appliance generating a strong magnetic field. M43-FHD User Manual P a g e...
- Page 6 ▪ Ne jamais utiliser l’appareil dans les conditions suivantes : – des conditions environnementales extrêmes (chaud, froid ou humidité) – des endroits remplis de poussières et de saletés. – à proximité d’appareils produisant un fort champ magnétique. M43-FHD User Manual P a g e...
-
Page 7: Table Of Contents
2.3.2 Timing Table Chart ......................22 2.3.3 EDID Data ......................... 22 2.4 Dimension ..........................23 2.4.1 Front View ........................23 2.4.2 Side View .......................... 23 2.4.3 Rear View ......................... 24 Appendix ............................25 M43-FHD User Manual P a g e... -
Page 8: Chapter 1

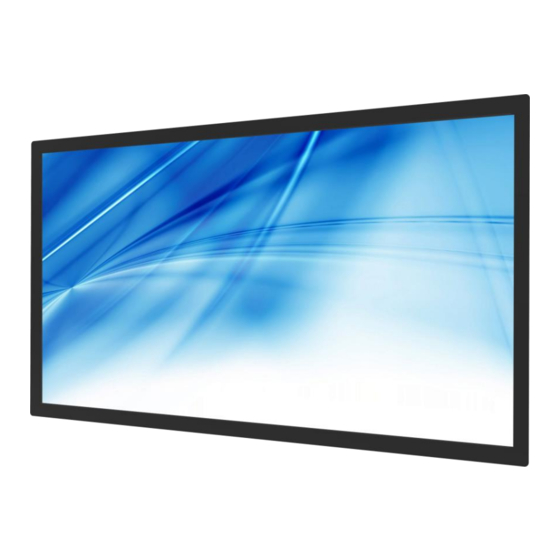

Product Introduction 1.1 Overview Element M43-HFD series not only supports portrait and landscape two ways suitable for all solutions, but also provides dynamic touch sensitivity technology supports up to 6mm thickness glass. M43-HFD series is designed for retail, KIOSK, digital signage etc. -
Page 9: Specifications
Operating Humidity 20% ~ 80% RH, non-condensing Mounting VESA 400 mm x 400 mm Dimension (W x H x D) 571.42mm x 82.3mm x 983.18mm Net Weight 19.5 kg Gross Weight 25.0 kg M43-FHD User Manual P a g e... -
Page 10: Block Diagram
1.4 Block Diagram This section describes the electrical requirements of the monitor. The block diagram in figure 1 illustrates the various electrical sub-systems. M43-FHD User Manual 10 | P a g e... -
Page 11: Interface Connectors
1.8 0.05 meters, and PC99 compliant. 1.5.2 Video Signal Connector The video signal input via D-type 15-pin female connector. Connector Pin Assignment: Signal GREEN BLUE RED_RTN GREEN_RTN BLUE_RTN M43-FHD User Manual 11 | P a g e... - Page 12 The video signal input via DVI female connector. Connector Pin Assignment: Signal Signal TMDS Data 2- TMDS 3+ TMDS Data 2+ +5V DDC Power TMDS Data 2/4 Shield Gnd (+5, Analog V/H Sync) M43-FHD User Manual 12 | P a g e...
- Page 13 ML_Lane 2(p) Data2 + Signal ground AUX_CH(n) AUX - Signal for ML_Lane 1(n) Data1 - Auxiliary Channel Signal ground Hot Plug ML_Lane 1(p) Data1 + DP_PWR Return ML_Lane 0(n) Data0 - DP_PWR M43-FHD User Manual 13 | P a g e...
-
Page 14: Signal Connector
1.5.3 Signal Connector USB Connector Signal RJ11 Connector (Remote Key) Signal MENU DOWN SELECT POWER M43-FHD User Manual 14 | P a g e... - Page 15 Line-in Connector Signal LEFT RIGHT LEFT RIGHT M43-FHD User Manual 15 | P a g e...
-
Page 16: Package Overview
Tma = 40 degree C minimum, and the altitude of operation = 5000m minimum. If it purchasing the power source, please contact to Element for further information. needs further assistance with purchasing the power source, please contact to Element for further information. -
Page 17: Chapter 2
The VESA mount is located on the back of this unit. Warning! Please select the Element original screws! The distance between the back cover surface and the bottom of the screw hole is 6~7mm. Please use M6/8mm screw nut diameter with proper length to mount your monitor. -
Page 18: Install The Vesa Screw
The specification of the screw nut is M6 x 8mm, the length of nut is 43mm Step 2: Fasten four M6 screws into the screw nut The specification of the screw is M6 x 30mm M43-FHD User Manual 18 | P a g e... -
Page 19: About General Mounting Information
The following two mounting orientations are supported: Landscape and portrait mode. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. 2.2.1 Landscape Top side 2.2.2 Portrait Top side M43-FHD User Manual 19 | P a g e... -
Page 20: On-Screen Display
Choose the adjustment items by pressing the “SELECT” button. Adjust the value of the adjustment items by pressing the “Up” or “Down” button The OSD menu will automatically close, if you have left it idle for a pre-set time M43-FHD User Manual 20 | P a g e... -
Page 21: Osd Function Description
User (9300K, 6500K, 5500K, 7500K, User) Volume Audio volume adjustment. Mute Audio On/Off control. Input select function. (NO SDM-L: VGA, DVI,HDMI, DP) Input select Auto (Have SDM-L: VGA,DVI,HDMI, DP, SDM-L DP) M43-FHD User Manual 21 | P a g e... -
Page 22: Timing Table Chart
The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. This configuration shall contain the 128-byte EDID for VGA/DVI, 256-byte EDID for HDMI/DP file as specified by VESA EDID Standard. M43-FHD User Manual 22 | P a g e... -
Page 23: Dimension
2.4 Dimension 2.4.1 Front View 2.4.2 Side View M43-FHD User Manual 23 | P a g e... -
Page 24: Rear View
2.4.3 Rear View M43-FHD User Manual 24 | P a g e... -
Page 25: Appendix
Note 2：〝○〞indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 3：The〝−〞indicates that the restricted substance corresponds to the exemption. M43-FHD User Manual 25 | P a g e...
