CSI Controls CSION 4X Installation Instructions page 2

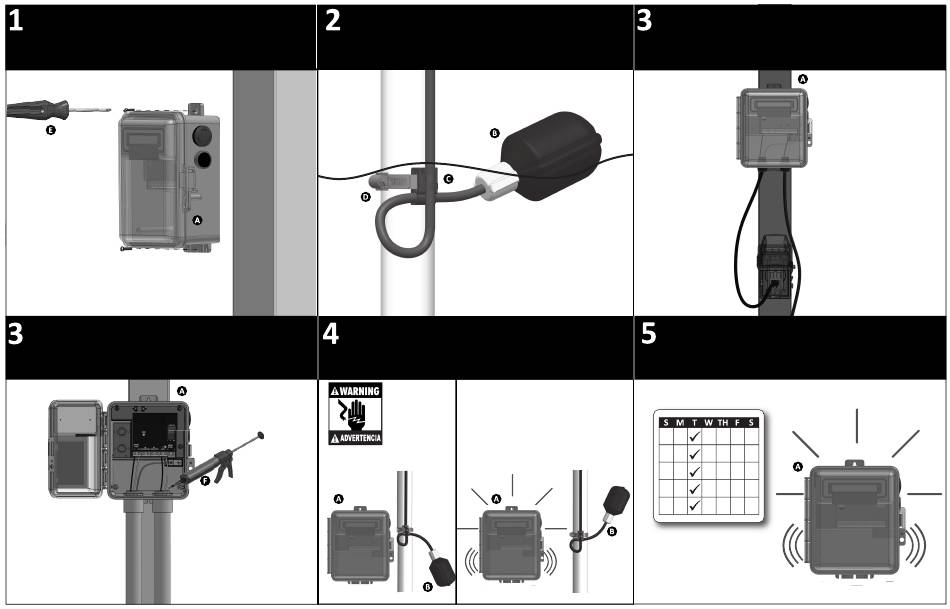

Mount the alarm enclosure using existing upper and lower mounting tabs.
Installation with conduit installed:
b
Bring fl oat switch and power cable through conduit and wire to 10 position
terminal block. Connect ground wire to ground termination post.
NOTE: Seal conduit to prevent moisture or gas from entering enclosure.
Install fl oat switch at desired activation level.
Activation Level
Nivel de activación
Restore power and check alarm operation after installation (high level
application shown).
Alarm Off (High Level) Alarm On (High Level)
Alarma desactivada (nivel alto) Alarma activada (nivel alto)
a Installation with standard pre-wired power cord and pre-
wired fl oat switch:
Plug the 120 VAC power cord into a 120 VAC receptacle on a separate branch
circuit from the pump circuit to ensure proper notifi cation.
Test alarm weekly to insure proper operation.
