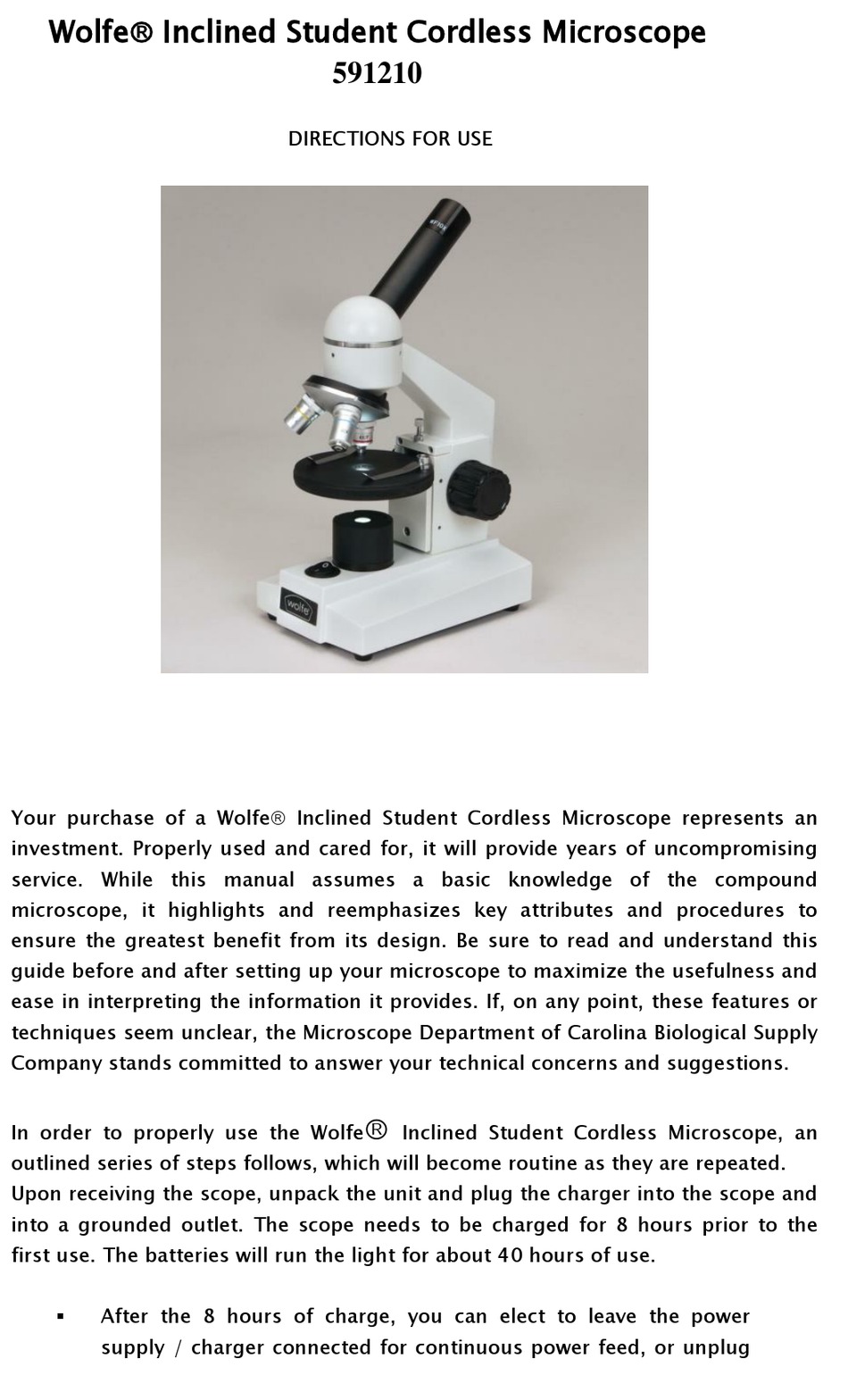

Wolfe Inclined Student Cordless Microscope
Your purchase of a Wolfe Inclined Student Cordless Microscope represents an
investment. Properly used and cared for, it will provide years of uncompromising
service. While this manual assumes a basic knowledge of the compound
microscope, it highlights and reemphasizes key attributes and procedures to
ensure the greatest benefit from its design. Be sure to read and understand this
guide before and after setting up your microscope to maximize the usefulness and
ease in interpreting the information it provides. If, on any point, these features or
techniques seem unclear, the Microscope Department of Carolina Biological Supply
Company stands committed to answer your technical concerns and suggestions.
In order to properly use the Wolfe
outlined series of steps follows, which will become routine as they are repeated.
Upon receiving the scope, unpack the unit and plug the charger into the scope and
into a grounded outlet. The scope needs to be charged for 8 hours prior to the
first use. The batteries will run the light for about 40 hours of use.
After the 8 hours of charge, you can elect to leave the power
▪
supply / charger connected for continuous power feed, or unplug
591210
DIRECTIONS FOR USE
Inclined Student Cordless Microscope, an
Advertisement
Table of Contents
Related Manuals for Wolfe TT52LED
Summary of Contents for Wolfe TT52LED
- Page 1 Wolfe Inclined Student Cordless Microscope 591210 DIRECTIONS FOR USE Your purchase of a Wolfe Inclined Student Cordless Microscope represents an investment. Properly used and cared for, it will provide years of uncompromising service. While this manual assumes a basic knowledge of the compound microscope, it highlights and reemphasizes key attributes and procedures to ensure the greatest benefit from its design.
- Page 2 from the wall outlet and the scope and operate the scope as a cordless unit. To operate the lamp, locate the ON/OFF Switch.( Light on switch ▪ on the front of the scope, “ I “ is on , “O” is off ) Rotate the moveable stage so that it is centered about the light.
- Page 3 MONOCULAR SWIVEL HEAD Your microscope is equipped with an angled, rotating head. The inclined angle will promote user comfort when viewing slides for extended periods. The head is designed to swivel through 360 degrees, allowing observation from any position, relative to the microscope stand. NOSEPIECE AND ACHROMATIC OBJECTIVES The objectives are installed in a revolving, ball bearing nosepiece.
- Page 4 BUILT-IN LED ILLUMINATOR The Wolfe Inclined Student Cordless Microscope 591210 has a built-in LED illuminator. AS A PRECAUTION, GROUNDED ELECTRICAL SERVICE SHOULD BE PROVIDED WHEN CHARGING OR USING THE MICROSCOPE. To change the bulb, first, disconnect the microscope from the electrical supply and use the included Allen Wrench to loosen the Allen screw on the lamp housing.
- Page 5 CAROLINA BIOLOGICAL SUPPLY COMPANY 2700 York Road Burlington, NC 27215...
