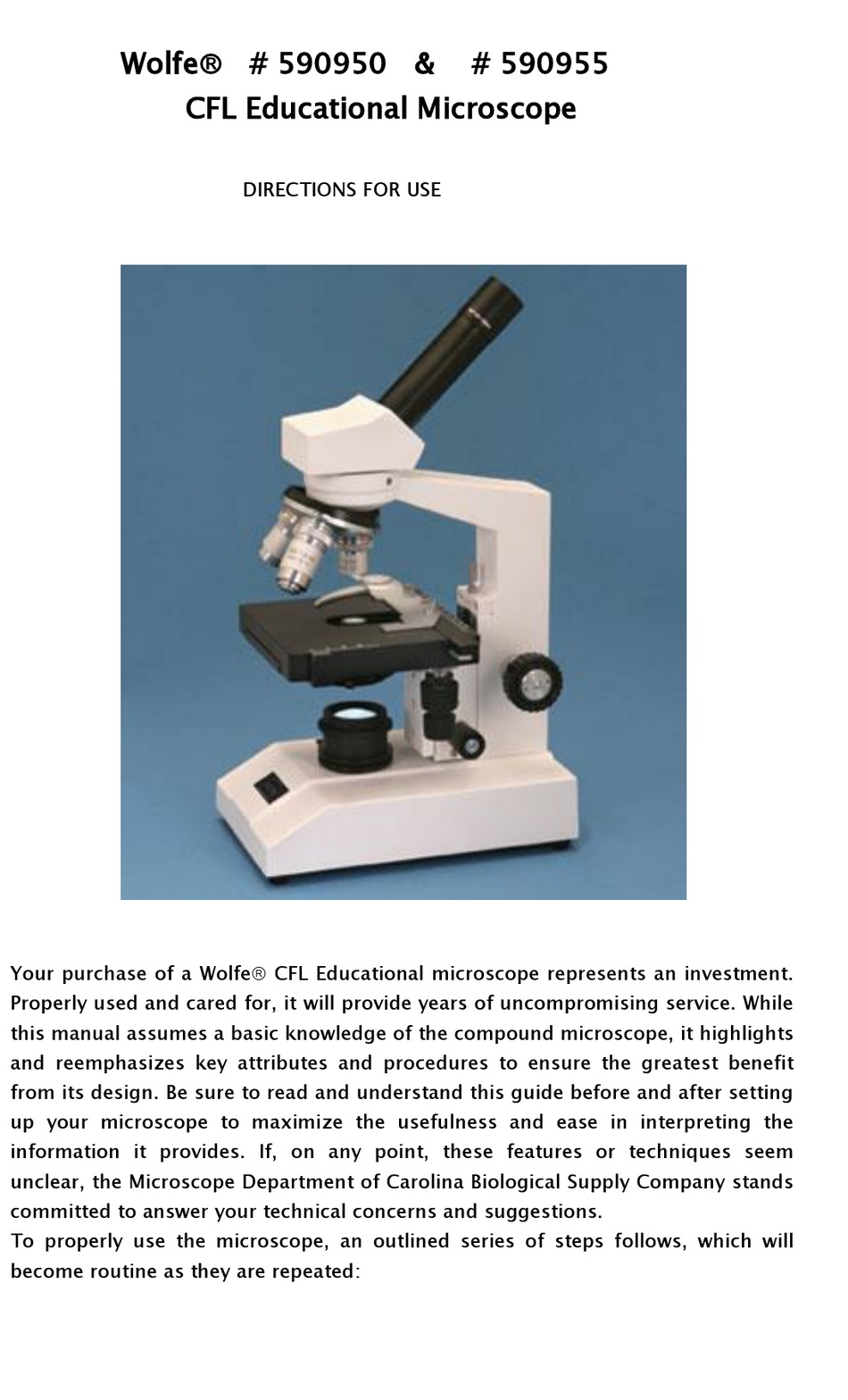

Wolfe # 590950 &
# 590955

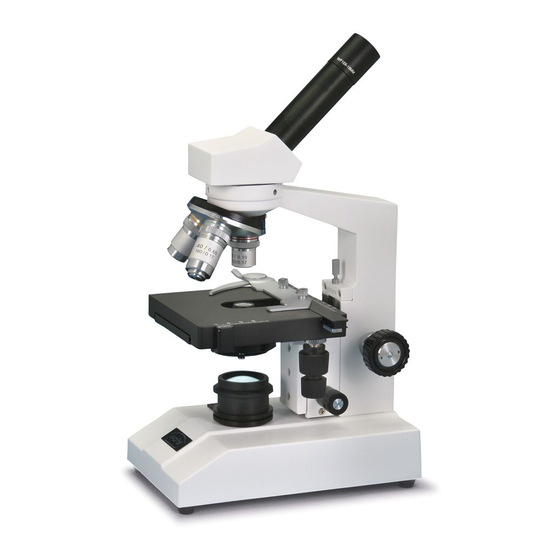

CFL Educational Microscope
DIRECTIONS FOR USE
Your purchase of a Wolfe CFL Educational microscope represents an investment.
Properly used and cared for, it will provide years of uncompromising service. While
this manual assumes a basic knowledge of the compound microscope, it highlights
and reemphasizes key attributes and procedures to ensure the greatest benefit
from its design. Be sure to read and understand this guide before and after setting
up your microscope to maximize the usefulness and ease in interpreting the
information it provides. If, on any point, these features or techniques seem
unclear, the Microscope Department of Carolina Biological Supply Company stands
committed to answer your technical concerns and suggestions.
To properly use the microscope, an outlined series of steps follows, which will
become routine as they are repeated:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wolfe 590950
Summary of Contents for Wolfe 590950
- Page 1 CFL Educational Microscope DIRECTIONS FOR USE Your purchase of a Wolfe CFL Educational microscope represents an investment. Properly used and cared for, it will provide years of uncompromising service. While this manual assumes a basic knowledge of the compound microscope, it highlights and reemphasizes key attributes and procedures to ensure the greatest benefit from its design.
- Page 2 The use of a surge protector will also help in preventing any possible power surges that could cause damage to the electronics in the microscope. On models 590950 you will have mounted spring-loaded stage clips for holding the specimen.
- Page 3 THESE AGENTS MAY DAMAGE LENS ELEMENTS THAT HAVE BEEN CEMENTED IN PLACE. PREDRILLED SPECIMEN STAGE: The stage of your microscope is equipped with spring-loaded stage clips on the 590950. Raise the clips by pressing down on the widest rear portion of the clip. MECHANICAL STAGE The 590955 features a mechanical stage with specimen holder.
- Page 4 Now properly set, it should not be possible to move the stage upward past this point using the course-focus adjustment. FOCUS CONTROL (stage type): The Wolfe CFL Series microscope utilizes a fixed body tube. Focus is achieved through use of separate course and fine-focus adjustment knobs located on the lower half of the microscope arm and block, below the stage.
- Page 5 Parts Identification on the 590950...
- Page 6 Parts Identification on the 590955...
- Page 7 The Wolfe CFL Educational and CFL Teaching microscopes are packed in form- fitted Styrofoam cartons in two halves held together by a cardboard sleeve. Because this packaging is specifically designed for your microscope, it should be preserved for long-term storage of the instrument and, should the need arise, as a shipping/packing carton.
