Model

Product Description

Colour Programme

Hinge Finish

Spare Parts

Cleaning Instructions

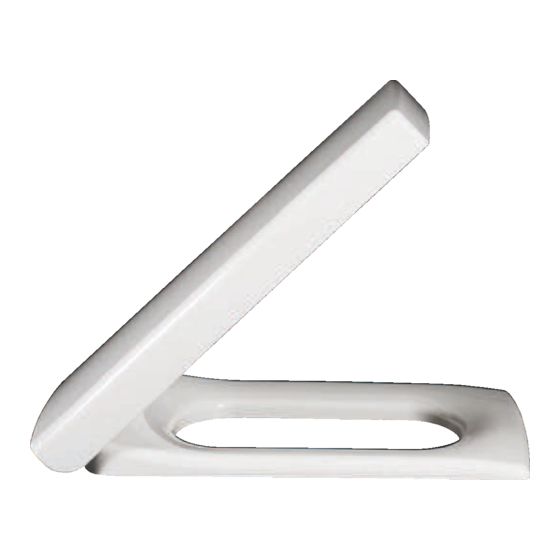

Toilet seat La Belle
9M12 S1 La Belle toilet seat with Soft Closing and Quick Release,
incl. 9222 24 61 fixed hinge with Quick Release
9M32 S1 La Belle toilet seat with Soft Closing and Quick Release,
incl. 9220 55 61 universal toggle hinge with Quick Release
La Belle toilet seat in Wrap Over design made of colour ingrained
duroplast with fixed hinge in stainless steel and plastic
– incl. fixed hinge with Quick Release in stainless steel and plastic
– centre distance: 180 mm
– load of ring seat: 240 kg
– 10 year guarantee
R1 White (Alpin)
R2 Star White
61 Stainless steel
A) 9222 24 61 Fixed hinge
B) 9220 55 61 Universal toggle hinge with Quick Release
C) 9218 96 00 Spare part for universal toggle hinge
D) 9222 05 00 Spare part cover caps for universal toggle
hinge
E) 9222 29 00 Buffers for seat and cover
F) 9220 23 00 Soft Closing packet
Use a mild soap solution. Seat and hinge should not be left
damp, but be dried with a soft cloth. When using abrasive, cor-
rosive or chlorine based cleaners for the bowl, avoid contact with
seat and hinge as it may lead to damages or flash rust. Therefore,
when cleaning the bowl, make sure that seat and cover are in an
upright position until all the cleaner has been flushed away
180
463
300
218
371
A
B
C
D
F
E
