Villeroy & Boch Omnia architectura Compact 9M66 S2 Manual

Omnia architectura Compact SC/QR

Model

Product Description

Colour Programme

Hinge Finish

Spare Parts

Cleaning Instructions

1

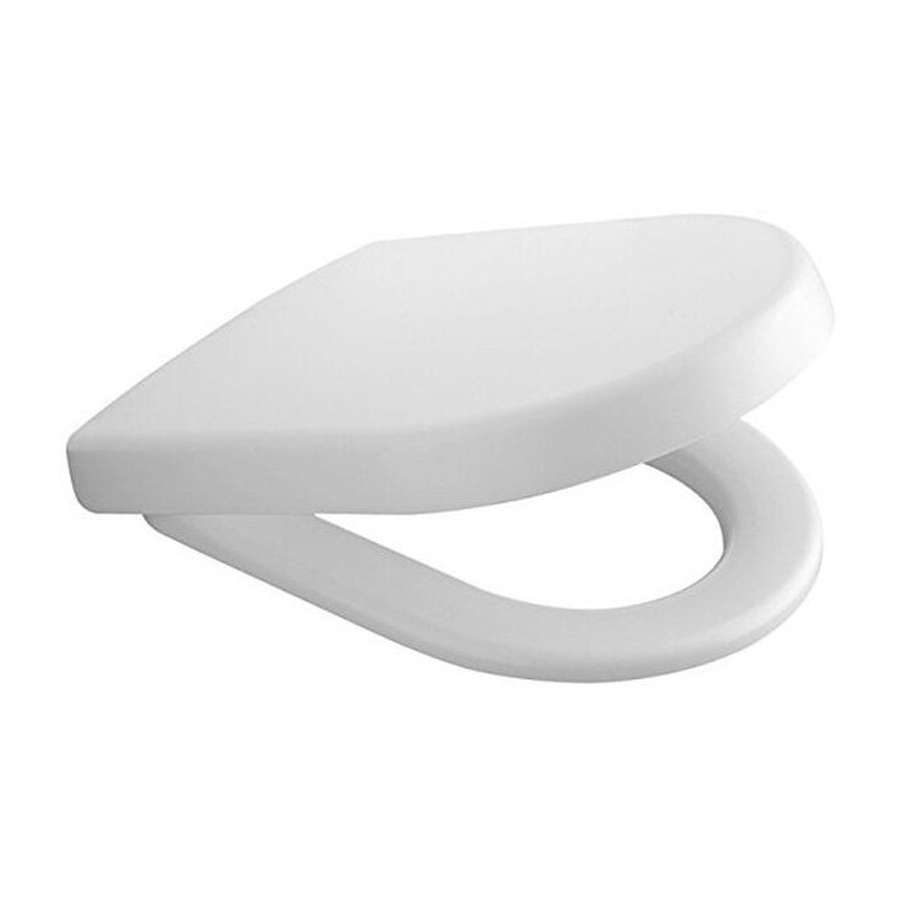

9M66 S2 Omnia architectura Compact toilet seat with Soft
Closing and Quick Release, incl. 9220 55 61 universal top
mounted toggle hinge with Quick Release
Omnia architectura Compact toilet seat in Wrap Over design
made of colour ingrained duroplast with hinge in stainless steel
and plastic
• incl. universal top mounted toggle hinge with Quick Release in
stainless steel
• centre distance: 135-215 mm
• load of ring seat: 240 kg
• 10 year guarantee
01 White (Alpin)
09 Pergamon
S3 Edelweiß
61 Stainless steel
A) 9220 55 61 Universal top mounted toggle hinge with Quick
Release
B) 9222 05 00 Spare part
C) 9218 96 00 Spare part for toggle hinge
D) 9222 92 00 Soft Closing
E) 9220 81 00 Buffers for seat and cover
Use a mild soap solution. Seat and hinge should not be left damp,
but be dried with a soft cloth. When using abrasive, corrosive
or chlorine based cleaners for the bowl, avoid contact with seat
and hinge as it may lead to damages or flash rust. Therefore,
when cleaning the bowl, make sure that seat and cover are in an
upright position until all the cleaner has been flushed away
135-215
391
E
A
B
M.VILLEROY-BOCH.COM // V 1.0 // 24.06.2019
208
270
345
D
C
