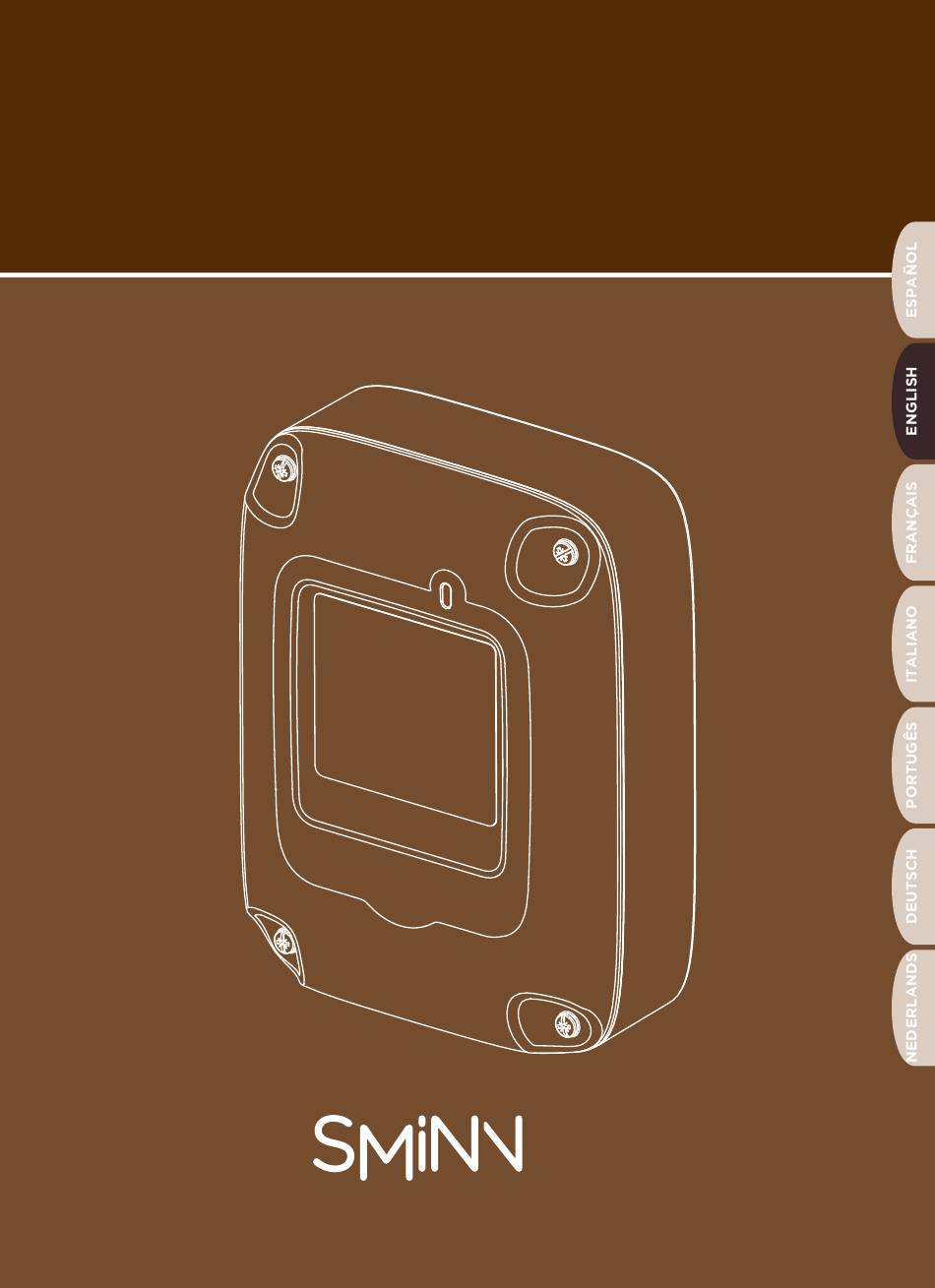

- Page 1 BOX L VF1D/EA UNIVERSAL CONTROL PANEL For gates with 1 three-phase 230VAC motor with frequency converter INSTRUCTION MANUAL innovative in electronics...
- Page 2 COMPONENTS SITUATION Fig.1 SMINN BOX L VF1D 1. LED connector panel cover 7. Auxiliary output relays 2. TRSH radio card socket 8. AC power input fuse 3. LCD display 9. High voltage zone 230VAC 4. Options selection keypad 10. Bus capacitors 5.
-
Page 3: Table Of Contents
INDEX Symbols Description ............2 Limitation of use of the panel ....2 Warnings .............. 2 ......Encoder pulses Installation ............3 Important safety instructions for installation ............3 Important safety instructions for use ..3 . Relay output (NO contact) Wiring .............. -
Page 4: Description
The manufacturer w Socket for SMINN radio card (6 pins). reserves the right to modify the contents w Independent inputs for two strips of this document or the product without (resistive or contact) and two photo- prior notice. -
Page 5: Installation
INSTALLATION The box is xed to the wall with only three in single-family dwellings and communal screws, all of them external (see Fig.3). and public facilities. The moving door must be prevented from making contact Drill three holes in the wall according to with any object or limiting the contact the cut-out template printed on the force (e.g. -
Page 6: Wiring
WIRING Terminals 14-15 provide 12W with 24VAC The panel is supplied with 230VAC 50Hz via a resettable fuse to power external via terminals 1 and 2. The earth connection devices such as lamps or an electric lock. is made at terminal 3. The control unit can control a three-phase At terminals 16 and 17, the panel has a 230VAC motor. - Page 7 Terminals 28 and 29 are used to connect the RS485 signals of the encoder. For correct operation it is necessary to The radio card socket allows a SMINN connect each terminal to the encoder radio card (6 pins) to be plugged in,...
-
Page 8: Con Guration
Force diagram of a value, and the BACK key is used to cancel the modi cation of a parameter Fd: Dynamic force and, in general, to go backwards. Fs: Static force SMINN BOX L VF1D BACK ENTER BACK ENTER... -
Page 9: Manoeuvre Programming
MANOEUVER PROG. The control panel has a con guration the panel will indicate that after pressing wizard that allows you to select the most ENTER again, the learning manoeuvre will important parameters and start up the begin. control panel quickly. From here you can carry out the following To start the wizard, with the door closed, steps using the ENTER key, the LL1 key... -
Page 10: Manoeuvre
MANOEUVER ACTIVATION OPEN/CLOSE The OPEN/CLOSE mode uses LL1 as the The key inputs (marked LL1, LL2 and LL3) opening command and LL2 as the closing and a radio card installed in the radio command. When the door is in motion the socket can be used to start a manoeuvre opposite direction input will cause a when the control panel is idle. -
Page 11: Phases
MANOEUVER PHASES MOVEMENT The movement phase comprises the SAFETY TESTS actual gate movement and management The safety tests phase is performed in the of the safety devices. First the red semap- beginning of every maneuver before hore light is activated if any relay is set as moving the gate. -
Page 12: Lock
MANOEUVER Soft stop ramp: If the SOFT STOP parameter for closing. When the maneu- parameter is set, when the gate reaches ver is inverted the controller calculates the the position set as a percentage of the needed time using the current gate OP SOFT STOP position as reference, If the gate does not gate limits (... -
Page 13: Safety
MANOEUVER TEST BEAM 1 SAFETIES To activate the safety test the TEST BEAM 2 parameter or the parameter The controller supports many safety must be used. Once set, the default testing devices that can affect the maneuver: strategy is to test both before opening STOP, light barriers, safety edges, current and closing. -
Page 14: Safety Edges
CURRENT SENSOR Overcurrent protection: If the contro- ller detects that the motor current draw The BOX L VF1D controller OC LIMIT rises above a limit set in the monitors the current draw on... -
Page 15: Encoder
MANOEUVER ENCODER MOTOR When the encoder is enabled it can be The BOX L VF1D allows independent used as a safety measure too. The contro- control of speed and power for a 230VAC ller monitors the time lapse between three-phase motor (delta wiring). Speed... -
Page 16: Electrical Connection Table
ELECTRICAL WIRING DIAGRAM Fig.2 230VAC phase 230VAC neutral Earth terminal U motor phase V motor phase W motor phase Motor earth terminal RL1 output relay RL2 output relay RL3 output relay 24VAC 12W power output Negative 15VDC power output for light barriers and others Positive Power negative for light barrier... -
Page 17: Accessories And Peripherals
ACCESORIES AND PERIPHERALS Radio card SMINN BOX L VF1D Transmitter-receiver light barrier set Beacon light and light barrier stand ust be connected to pin 18 of the terminal block... -
Page 18: Outputs
MANOEUVER OUTPUTS RELAY - SAFETY TEST SEC. TEST mode performs a safety The controller has three con gurable test on devices that are powered exter- outputs that support many different nally or that need a test signal. The contro- functions in order to adapt to different ller will activate the relay to perform the installations, Each output has its own test and deactivate it when the safety... -
Page 19: Display
The controller will still work normally even ABS ENC I POS ABS ENC F POS using the if there are logged errors. parameters. For more information on safety related encoder settigns check page 13. SMINN BXL-VF1D... -
Page 20: Options
OPTIONS VALOR TEXTO LCD PAGINAS POR DEFECTO AUTOMATIC CLOSING AUTO CLOSE 8, 10 Enables automatic closing after the pause phase FAST LIGHT BARRIER CLOSING The pause after a photocell reversal lasts for the FAST PHOTO CLS time set as photocell closure.Only visible if CLOSE ON BEAM is not NO OPTIONAL AUTO OPTIONAL AUTO... - Page 21 OPTIONS VALOR TEXTO LCD PAGINAS POR DEFECTO CLOSE ON BOOT CLOSE ON BOOT After a power failure it causes the door to close if it is not closed. PREFLASH MODE Establishes the behaviour of the light beacon during the PREFLASH MODE INTERMITTENCE 9,14 unlocking phase.
-
Page 22: Adjustments
TIMINGS DEFAULT LCD TEXT ADJUSTMENT PAGES VALUE OPEN TIME Opening time 15 sec. 0-1800 sec. 7,10 CLOSE TIME Closing time 15 sec. 0-1800 sec. 7,10 AUTO CLOSE T Automatic closing time 15 sec. 1-60000 sec. PEDEST LIM. End position of pedestrian maneuver 0-100 % AUTO C PED T Pedestrian automatic closing time... - Page 23 TIMINGS DEFAULT LCD TEXT ADJUSTMENT PAGES VALUES OP SOFT VEL Opening motor soft speed 25Hz 10-100Hz 9,10,13 CL SOFT VEL Closing motor soft speed 25Hz 10-100Hz 9,10,13 OP ACCEL RAMP Opening acceleration ramp time 1,5 sec. 0-100 sec. CL ACCEL RAMP Closing acceleration ramp time 1,5 sec.
-
Page 24: Maintenance
MAINTENANCE This menu allows checking maneuver MENU MODE counters, input status, setting a mainte- It allows changing the menu system to an nance password and loading default advanced version (explained later). values. MAINT. LIM. VERSION Allows setting a partial counter value from S h o w s t h e r m w a r e v e r s i o n o f t h e which the controller will blink the external... -
Page 25: Error Logging
ERROR LOG The BOX L VF1D controller stores while it LEARNING MISSING is powered the errors that occur during It is mandatory to perform a learning maneuvers. When there are errors to maneuver before operating the gte check the board will display an E in each normally. -
Page 26: Brake Connection
BRAKE CONNECTION When using a motor with an electrome- VAC is supplied, the brake is released and chanical brake, it is necessary to pay when it stops being supplied, it is blocked. attention to its connection; with frames To ensure that the brake is released when without a 400V inverter, neutral and one the motor moves, 230VAC must be of the motor phases are usually used to... -
Page 27: Absolute Encoder Connection
ABSOLUTE ENCODER WIRING The BOX L VF1EA allows the connection of as possible from the encoder in the motor GFA-ELEKTROMATEN, SOMMER, MFZ- junction box; be careful with the coloured O V I T O R a n d H O R M A N N m o t o r s t o cables that usually go under the encoder absolute encoders. -
Page 28: Warranty
WARRANTY This product has undergone a complete W A S T E O F E L E C T R I C A L A N D TEST during its manufacturing process ELECTRONIC DEVICES (WEEE) that guarantees its reliability and proper operation. -
Page 29: Technical Data
CE DECLARATION OF CONFORMITY The company ELSON ELECTRÓNICA, S. A. Pol. Torrelarragoiti, P6 – A3 48170 Zamudio – Vizcaya (SPAIN) Declares: The product BOX L VF1D motor controller Manufactured Under the trademark SMINN For use in Residential, Commercial or light industry environments. -
Page 30: Notes
NOTES... -
Page 31: Explosion Components
VF1D EXPLOSION Fig3 1. Captive screws 7. Radio card 2. Power status LED 8. Plug-in terminal blocks 3. Bus charging relays 9. Power relays 4. Vacuum rubber gasket 10. Display 5. External xing with just three screws 11. Frontal space for installer/revision 6. - Page 32 innovative in electronics...
