Morphy Richards 28009, 28022 - 2 Band Alarm Clock Radio Manual

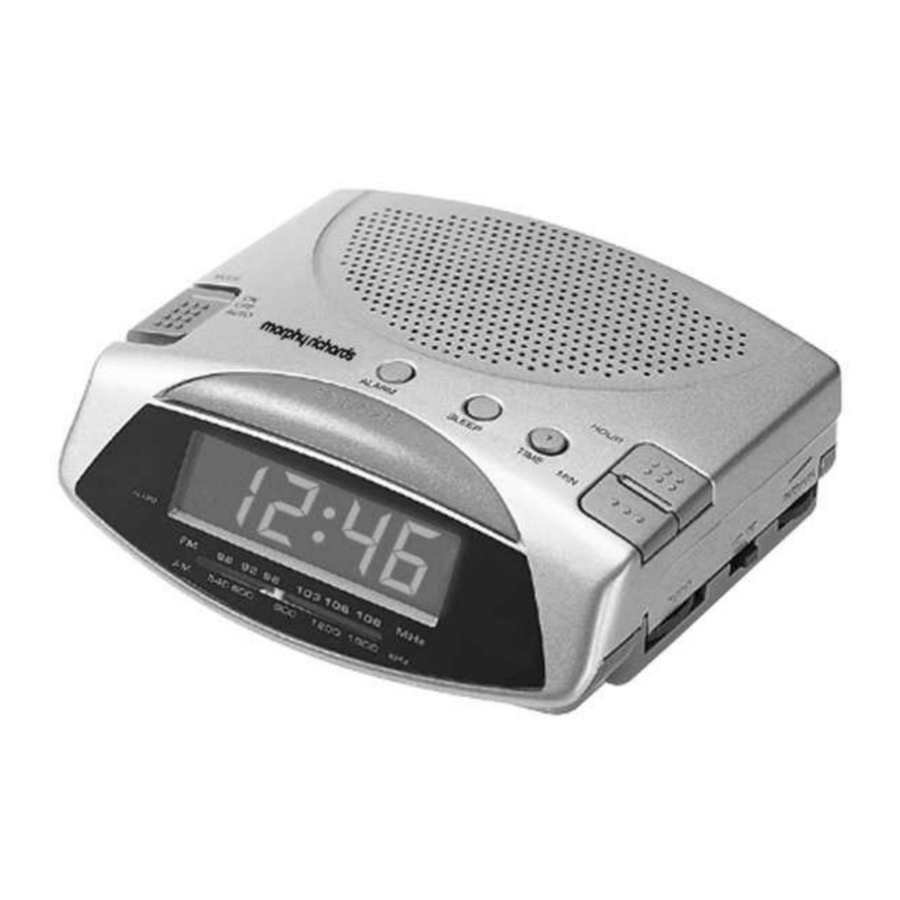

Illustration

Location of controls

Function selector switch
PM indicator
Alarm indicator
Dial scale and pointer
Tuning control
Band selector switch AM/FM
Buzzer/Volume control
Minute button
Hour button
FM wire aerial
Time button
Sleep button
Alarm button
Snooze button
Battery compartment (located underneath unit)

Electrical requirements

Check that the voltage on the rating plate of your clock radio corresponds with your house electricity supply which must be A.C. (Alternating current).

For clock radios with fitted plug.

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

THE PLUG REMOVED FROM THE MAINS LEAD, IF SEVERED, MUST BE DESTROYED AS A PLUG WITH A BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED INTO A LIVE SOCKET OUTLET.

Should the fuse in the 13 amp mains plug require changing a 3 amp BS1362 fuse must be fitted.

The socket outlet should be installed near the equipment and shall be easily accessible.

Battery back-up facility

(unit will work without a battery being fitted)

Your alarm clock radio is equipped with a battery back-up facility.

Remove the battery compartment cover (located underneath the unit) by pushing in the clip and lifting off.
Insert a battery size 9 volts PP3/6LR61 and connect to terminals (Ensure batteries are inserted correctly)
Replace the battery compartment cover.

Should a power interruption occur the clock will continue to run, however, time keeping will not be accurate. The display will be extinguished to conserve battery life but the memory will retain details of the clock time and alarm settings.

If the optional battery is not installed in case of the AC power failure the display will blink to indicate the power was interrupted. You will need to reset the clock and alarm.

Battery back-up is designed to operate for a short period only.
If the unit is not to be used for a prolonged period, remove the battery to avoid battery leakage.
In the interests of environmental safety: dispose of batteries safely.

Switching on and setting the clock time

Before any alarm functions can be used, you must set the clock to the correct time.

Place the unit on a flat surface. Plug the mains plug into the wall socket and switch on the wall socket
The LED clock display will flash.
Press and hold the TIME button (11) and simultaneously hold down the HOUR button (9) or the MINUTE button (8). The LED clock display will fast forward the minutes and hour segments. Release the TIME button (11) when your desired time is set.
The PM indicator (2) will illuminate to indicate 12.00 midday has been reached.

Radio operation

FM wire aerial
To obtain the maximum FM reception fully extend the wire FM aerial (10) (which is located at the rear of the unit) and alter the direction of the wire for best results.

The aerial for the AM waveband is located inside the unit. To obtain the maximum AM reception rotate the clock radio.

Slide the FUNCTION SELECTOR switch (1) to the 'ON' position.
Adjust the VOLUME control (7) to a suitable level.
Set the BAND SELECTOR switch (6) to either AM or FM as desired.
Slowly adjust the TUNING control (5) to select your desired station.
To switch off the radio, slide the FUNCTION SELECTOR switch (1) to the 'OFF' position.

Setting the alarm time

Press and hold the ALARM button (13) and simultaneously press the HOUR (9) or MINUTE button (8) to set the display to the desired alarm time. Release the ALARM button (13) when the desired alarm time is set.

Wake up to the radio alarm

Switch the FUNCTION SELECTOR switch (1) to the 'ON' position.
Set the BAND SELECTOR switch (6) to select either FM or AM wavebands as desired.
Adjust the VOLUME control (7) to a suitable level.
Slowly adjust the TUNING control (5) to the desired station.
To check that the alarm time has been set, slide the FUNCTION SELECTOR switch (1) to the 'AUTO' position. The ALARM ON indicator (3) will light. The radio station will wake you up at the set alarm time. The alarm will automatically turn off after 1 hour 59 minutes.

Ensure the station you select will be transmitting at the preset alarm time.

Wake up to the alarm buzzer

In order to check the correct alarm time has been set press the ALARM button (13). The display will indicate the alarm time set.

Turn the BUZZER/VOLUME control (7) to the 'Buzzer' position until you hear a click.
Slide the function selector switch (1) to the 'AUTO' position. The ALARM ON indicator (3) will light.

The buzzer alarm will activate at the set alarm time.
The buzzer will automatically turn off after 1 hour 59 minutes.

To stop the alarm tone

The alarm is programmed to run for 1 hour 59 minutes.

To stop the alarm, press the ALARM button (13). The alarm will stop and will operate again 24 hours later.
To stop the alarm temporarily, press the SNOOZE button (14). The alarm will sound again 9 minutes later.
To switch the alarm setting off permanently, slide the FUNCTION SELECTOR switch (1) to the 'Off' position.

Snooze function

The alarm can be interrupted for a 9 minute period.

Press the SNOOZE button (14), after 9 minutes the radio or alarm buzzer will sound again.

To set the sleep function

Your clock radio is equipped with a sleep function that will turn the radio on and switch it off automatically after a set period of time from between 59 minutes to 1 minute. Pressing the hour button (9) will extend the sleep time to 1 hour 59 minutes.

Press the SLEEP button (12) the LED display will show 0:59 sleep time at the same time the radio will come on and stay on for 59 minutes.
Press and hold the SLEEP button (12) whilst pressing the MINUTE button (8) or HOUR button (9) or press and hold the sleep button (12), the sleep time shown on the LED display will start descending.
Release all buttons when the desired sleep time is shown on the LED display.
After the set sleep time has elapsed, the radio will automatically switch off.
To switch off before the set sleep time has elapsed press the SNOOZE button (14).

Maintenance

Do not expose your clock radio to extremes of temperature. The product should be kept in a warm environment free from dust and damp. For external cleaning use only a soft, clean, damp cloth. Use of detergents may damage the finish.
