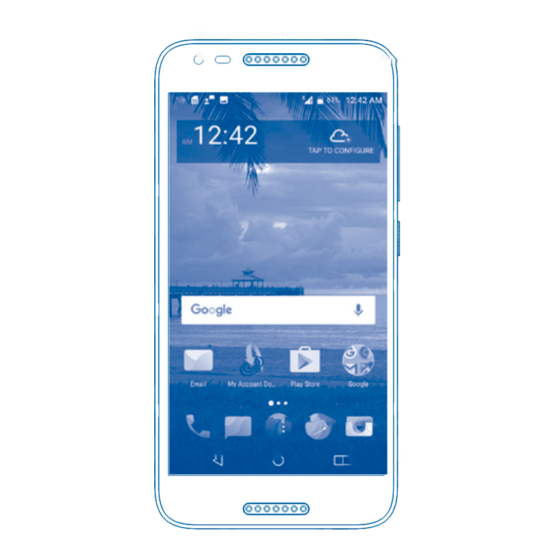

A576BL
Quick Start Guide
Thank you for choosing Alcatel. This booklet helps you get started with your new Alcatel Zip LTE.
For more information about how to use Alcatel Zip LTE, please go to www.alcatelonetouch.us for
complete user manual.
English - CJB1HEA01AAA
Made and Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIP LTE and is the answer not in the manual?

Questions and answers

Summary of Contents for Alcatel ZIP LTE

  • Page 1 A576BL Quick Start Guide Thank you for choosing Alcatel. This booklet helps you get started with your new Alcatel Zip LTE. For more information about how to use Alcatel Zip LTE, please go to www.alcatelonetouch.us for complete user manual. English - CJB1HEA01AAA...
  • Page 2: Table Of Contents

    Table of contents Your mobile ������������������������������������������������������������������������������������������������������������������������� 1 Text input��������������������������������������������������������������������������������������������������������������������������� 11 Call ������������������������������������������������������������������������������������������������������������������������������������� 12 Contacts ���������������������������������������������������������������������������������������������������������������������������� 14 Messaging ������������������������������������������������������������������������������������������������������������������������� 15 Email ���������������������������������������������������������������������������������������������������������������������������������� 16 Getting connected ������������������������������������������������������������������������������������������������������������� 17 Find my location using GPS satellites ����������������������������������������������������������������������������� 18 Data backup ���������������������������������������������������������������������������������������������������������������������� 19 Factory data reset ������������������������������������������������������������������������������������������������������������� 20 Applications &...
  • Page 3: Your Mobile

    Your mobile ���������������������������������������� 1�1 Keys and connectors Headset connector Front camera Receiver LED indicator Touch screen Back key Home key Menu Key Micro-USB/ Charger Connector...
  • Page 4 Camera Volume up key Volume down key Power key Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Home key • From any application or screen, touch to return to the Home screen. •...
  • Page 5 Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. In camera mode, press Volume up or down key to take a photo. •...
  • Page 6 Charging the battery It is advised that you fully charge your battery ( ). Connect the battery charger to your phone and main socket respectively, charging status is indicated by the percentage on screen while the phone is powered off. The percentage increases as the phone is charged. To reduce power consumption and energy waste when the battery is fully charged, disconnect your charger from the plug;...
  • Page 7 Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favorite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Touch to enter application list.
  • Page 8 Flick Similar to swiping, but flicking makes it moves quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the device sideways to have a better view.
  • Page 9 1�3�2 Status bar From the status bar, you can view both phone status and notification information. Status icons 3G connected Vibrate mode 3G in use Alarm is set 4G connected Connected to a Wi-Fi network 4G in use Speakerphone is on Signal strength No SIM card inserted Roaming...
  • Page 10 Notification icons New Gmail message Missed call New Email message Radio is on New text or multimedia message An open Wi-Fi network is available Problem with SMS or MMS delivery Uploading data Upcoming event Downloading data Screenshot error System update available Screenshot captured Touch and drag down the Status bar to open the Quick settings panel or Notification panel.
  • Page 11 Touch to switch to the Quick settings panel. Touch to clear all event–based notifications (other ongoing notifications will remain). Quick settings panel Touch and drag down the Notification panel to open the Quick settings panel, where you can enable or disable functions or change modes by touching the icons. Touch to access Settings, where you can set more items.
  • Page 12 1�3�3 Lock/Unlock your screen To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc. 1�3�4 Personalize your Home screen You can touch and hold a folder, an application or a widget to activate the Move mode, and drag the item to any Home screen as you prefer.
  • Page 13: Text Input

    Text input ������������������������������������������� 2�1 Using Onscreen Keyboard Onscreen Keyboard settings Touch the Application tab from the Home screen, select Settings\Language & input, touch the keyboard name to access a series of settings 2�1�1 Google Keyboard Touch to enter text or numbers. Touch to enter voice input.
  • Page 14: Call

    Call ������������������������������������������������ 3�1 Placing a call You can easily launch a call using Call. Touch the Application tab from the Home screen and select Call, or touch the icon on the home screen to access Call application Slide right to access Favorites;...
  • Page 15 Enter the desired number from the keyboard directly or select a contact from Contacts or Call log by sliding or touching tabs, then touch to place the call. The number you entered can be saved to Contacts by touching the Create new contact. If you make a mistake, you can delete the incorrect digits by touching or the Power key (when the Settings\Accessibility\Power button to To hang up a call, touch...
  • Page 16: Contacts

    Contacts ���������������������������������������� From Contacts app, you can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone. 4�1 Adding a contact Touch Application tab on the Home screen, select Contacts, then, you can touch to create a new contact.
  • Page 17: Messaging

    Messaging ������������������������������������ You can create, edit and receive SMS and MMS with this phone. To access this feature, touch the Application tab from the Home screen, then select Messaging. 5�1 Write message On the message list screen, touch the new message icon to write text/multimedia messages.
  • Page 18: Email

    Sending a multimedia message MMS enables you to send video clips, images, photos, animations and sounds to other compatible phones and e-mail addresses. An SMS will be converted to MMS automatically when media files (image, video, audio, etc.) are attached or Subject or email addresses are added. Email���������������������������������������������...
  • Page 19: Getting Connected

    Getting connected������������������������������ To connect to the Internet with this phone, you can use 4G networks or Wi-Fi, whichever is most convenient. 7�1 Connecting to the Internet 7�1�1 The first time you turn on your phone, it will automatically configure your network service: 4G. To check the network connection you are using, touch the Application tab from the Home screen, then touch Settings\More���\Cellular networks, and touch Network carriers.
  • Page 20: Find My Location Using Gps Satellites

    7�3 Connecting to a computer With a USB cable, you can transfer media files and other files between your microSD card/internal storage and the computer. To connect/disconnect your phone to the computer: To connect: • Use a USB cable to connect the phone to a USB port on your computer. You will receive a notification USB for file transfers.
  • Page 21: Data Backup

    Use your phone’s GPS satellite receiver to pinpoint your location with an accuracy as close as several meters (“street level”). The process of accessing the GPS satellite and setting your phone's precise location for the first time will require up to 5 minutes. You will need to stand in a place with a clear view of the sky and avoid moving.
  • Page 22: Factory Data Reset

    Factory data reset �������������������������� To activate factory data reset: • Touch the Application tab from the Home screen. Touch Settings\Backup & reset\Factory data reset. • Touch the RESET PHONE\RESET. • Resetting the phone will erase all of your personal data from internal phone storage, including information about your Google account, any other accounts, your system and application settings, and any downloaded applications.
  • Page 23 11�2 Internal storage Touch Settings\Storage to display the amount of internal phone storage used by the operating system, its components, applications (including those you downloaded), permanent and temporary data. If a warning message comes up saying that phone memory is limited, you are required to free up space by deleting some unwanted applications, downloaded files, etc.
  • Page 24: Safety And Use

    Safety and use ��������������������������������������������� Please read before using your phone THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded.
  • Page 25 Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 26 Take extra precautions  • Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. • Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation.
  • Page 27 Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode.
  • Page 28 If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so.
  • Page 29 Avoid applying excessive pressure to the device  Do not apply excessive pressure on the screen and the device to prevent damaging them and remove the device from your pants’ pocket before sitting down. It is also recommended that you store the device in a protective case and only use the device stylus or your finger when interacting with the touch screen.
  • Page 30 • The product does not operate normally when you follow the operating instructions. Avoid hot areas  The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Avoid wet areas ...
  • Page 31 Small children  Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the phone. Your phone contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard.
  • Page 32 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 33 The wireless telephone industry has developed ratings to assist hearing device users in finding wireless devices that may be compatible with their hearing devices. Not all wireless devices have been rated. Wireless devices that are rated will have the rating displayed on the box together with other relevant approval markings.
  • Page 34 Your wireless mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
  • Page 35 Council of 7 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments. Electronic Recycling (Within USA Only): For more information on Electronic Recycling, please: 1. Visit Alcatel Electronic Recycling Program website at http://www.alcatelonetouch.us/electronic- recycling-program, or 2. Call Alcatel US Customer Support at 1-855-368-0829.
  • Page 36 Battery Recycling (USA & Canada): Alcatel partners with Call2Recycle® to offer a safe and convenient battery recycling program. For more information on our Battery Recycling Program, please visit the USA and Canada website at www.alcatelonetouch.us/battery-recycling and www.alcatelonetouch.ca/battery-recycling...
