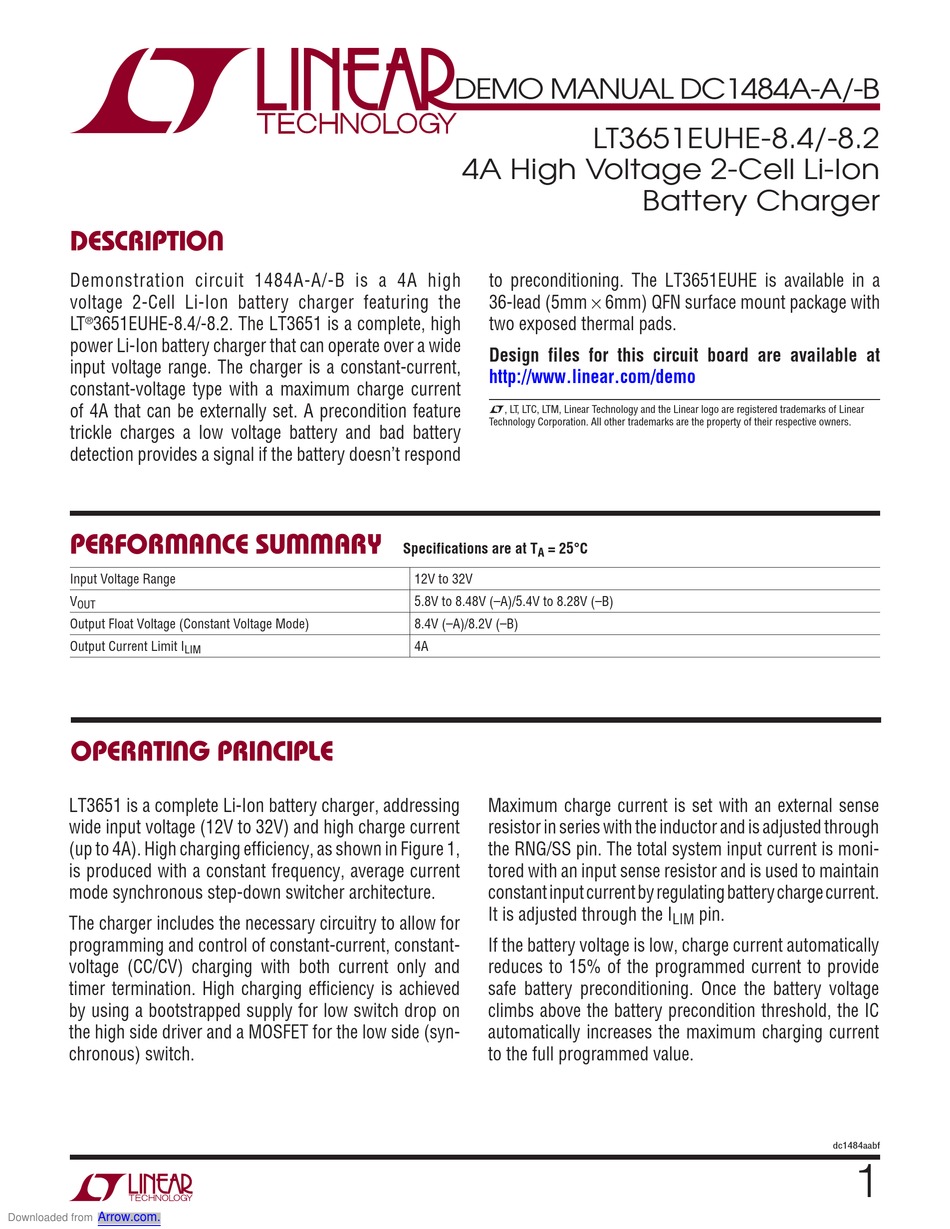

DESCRIPTION
Demonstration circuit 1484A-A/-B is a 4A high
voltage 2-Cell Li-Ion battery charger featuring the
LT
®
3651EUHE-8.4/-8.2. The LT3651 is a complete, high
power Li-Ion battery charger that can operate over a wide
input voltage range. The charger is a constant-current,
constant-voltage type with a maximum charge current
of 4A that can be externally set. A precondition feature
trickle charges a low voltage battery and bad battery
detection provides a signal if the battery doesn't respond
PERFORMANCE SUMMARY
Input Voltage Range
V
OUT
Output Float Voltage (Constant Voltage Mode)
Output Current Limit I
LIM
OPERATING PRINCIPLE
LT3651 is a complete Li-Ion battery charger, addressing
wide input voltage (12V to 32V) and high charge current
(up to 4A). High charging efficiency, as shown in Figure 1,
is produced with a constant frequency, average current
mode synchronous step-down switcher architecture.
The charger includes the necessary circuitry to allow for
programming and control of constant-current, constant-
voltage (CC/CV) charging with both current only and
timer termination. High charging efficiency is achieved
by using a bootstrapped supply for low switch drop on
the high side driver and a MOSFET for the low side (syn-
chronous) switch.
Arrow.com.
Downloaded from
DEMO MANUAL DC1484A-A/-B
4A High Voltage 2-Cell Li-Ion
to preconditioning. The LT3651EUHE is available in a
36-lead (5mm × 6mm) QFN surface mount package with
two exposed thermal pads.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Specifications are at T
= 25°C
A
12V to 32V
5.8V to 8.48V (–A)/5.4V to 8.28V (–B)
8.4V (–A)/8.2V (–B)
4A
Maximum charge current is set with an external sense
resistor in series with the inductor and is adjusted through
the RNG/SS pin. The total system input current is moni-
tored with an input sense resistor and is used to maintain
constant input current by regulating battery charge current.
It is adjusted through the I
If the battery voltage is low, charge current automatically
reduces to 15% of the programmed current to provide
safe battery preconditioning. Once the battery voltage
climbs above the battery precondition threshold, the IC
automatically increases the maximum charging current
to the full programmed value.
LT3651EUHE-8.4/-8.2
Battery Charger
pin.
LIM
dc1484aabf
1
