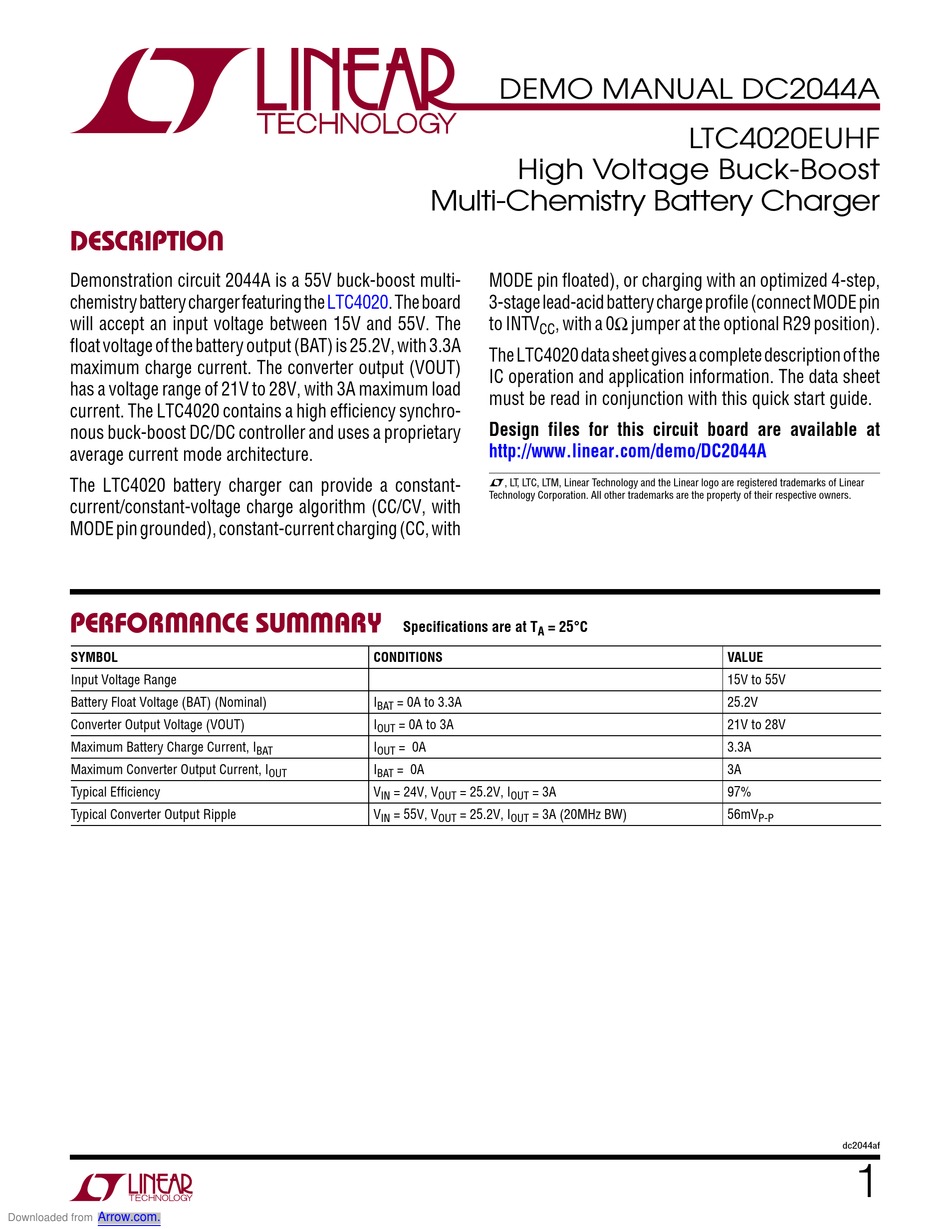

Linear Technology LTC4020EUHF Demo Manual

High voltage buck-boost multi-chemistry battery charger
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Description
Demonstration circuit 2044A is a 55V buck-boost multi-
chemistry battery charger featuring the LTC4020. The board
will accept an input voltage between 15V and 55V. The
float voltage of the battery output (BAT) is 25.2V, with 3.3A
maximum charge current. The converter output (VOUT)
has a voltage range of 21V to 28V, with 3A maximum load
current. The LTC4020 contains a high efficiency synchro-
nous buck-boost DC/DC controller and uses a proprietary
average current mode architecture.
The LTC4020 battery charger can provide a constant-
current/constant-voltage charge algorithm (CC/CV, with
MODE pin grounded), constant-current charging (CC, with
performance summary
SYMBOL
Input Voltage Range
Battery Float Voltage (BAT) (Nominal)
Converter Output Voltage (VOUT)
Maximum Battery Charge Current, I
Maximum Converter Output Current, I
Typical Efficiency
Typical Converter Output Ripple
Arrow.com.
Downloaded from
Multi-Chemistry Battery Charger
Specifications are at T
CONDITIONS
I
= 0A to 3.3A
BAT
I
= 0A to 3A
OUT
I
= 0A
BAT
OUT
I
= 0A
OUT
BAT
V
= 24V, V
IN
V
= 55V, V
IN
DEMO MANUAL DC2044A
High Voltage Buck-Boost
MODE pin floated), or charging with an optimized 4-step,
3-stage lead-acid battery charge profile (connect MODE pin
to INTV
, with a 0Ω jumper at the optional R29 position).
CC
The LTC4020 data sheet gives a complete description of the
IC operation and application information. The data sheet
must be read in conjunction with this quick start guide.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2044A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
= 25°C
A
= 25.2V, I
= 3A
OUT
OUT
= 25.2V, I
= 3A (20MHz BW)
OUT
OUT
LTC4020EUHF
VALUE
15V to 55V
25.2V
21V to 28V
3.3A
3A
97%
56mV
P-P
dc2044af
1
