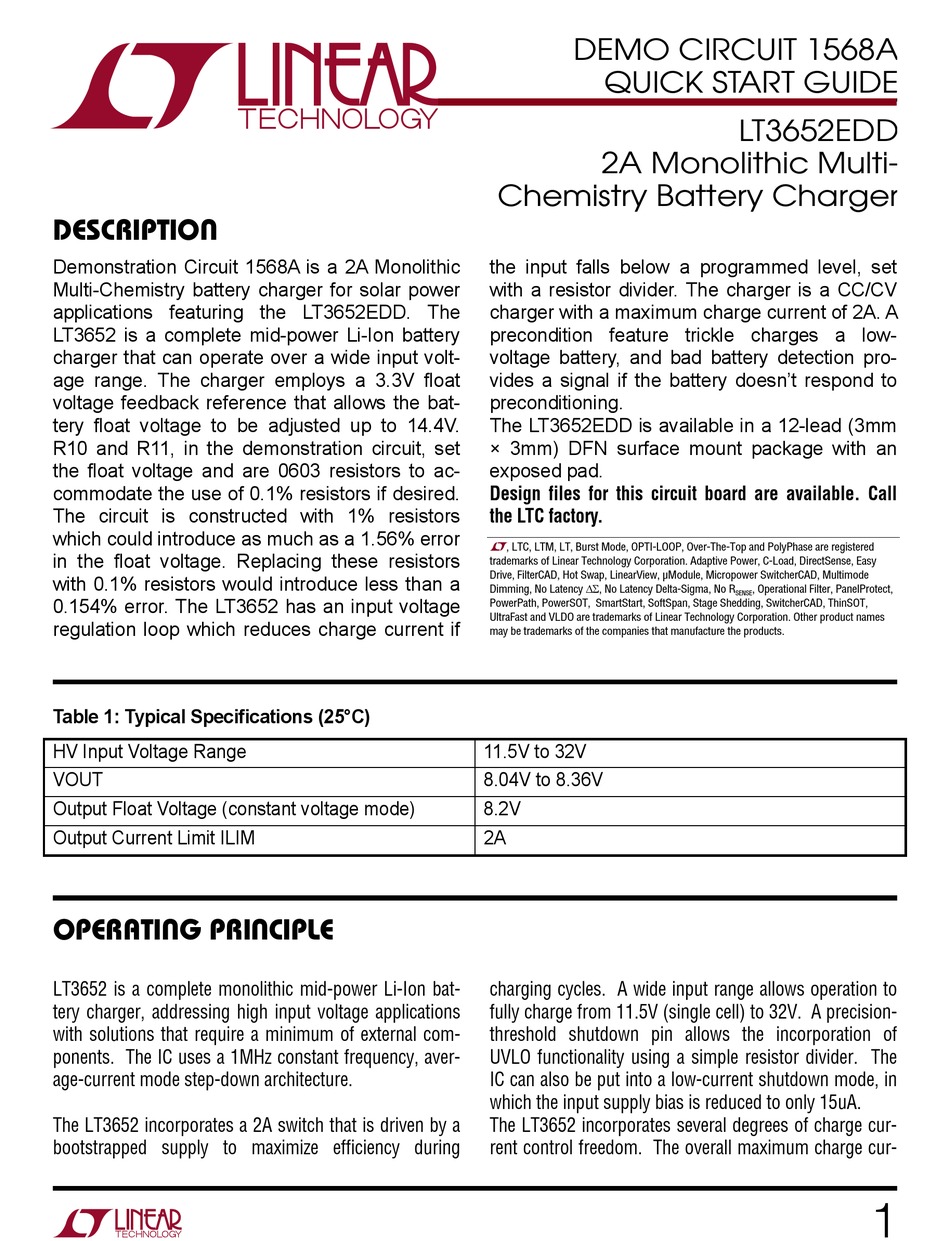

DESCRIPTION
Demonstration Circuit 1568A is a 2A Monolithic
Multi-Chemistry battery charger for solar power
applications featuring the LT3652EDD. The
LT3652 is a complete mid-power Li-Ion battery
charger that can operate over a wide input volt-
age range. The charger employs a 3.3V float
voltage feedback reference that allows the bat-
tery float voltage to be adjusted up to 14.4V.
R10 and R11, in the demonstration circuit, set
the float voltage and are 0603 resistors to ac-
commodate the use of 0.1% resistors if desired.
The circuit is constructed with 1% resistors
which could introduce as much as a 1.56% error
in the float voltage. Replacing these resistors
with 0.1% resistors would introduce less than a
0.154% error. The LT3652 has an input voltage
regulation loop which reduces charge current if
Table 1: Typical Specifications (25°C)
HV Input Voltage Range
VOUT
Output Float Voltage (constant voltage mode)
Output Current Limit ILIM
OPERATING PRINCIPLE
LT3652 is a complete monolithic mid-power Li-Ion bat-
tery charger, addressing high input voltage applications
with solutions that require a minimum of external com-
ponents. The IC uses a 1MHz constant frequency, aver-
age-current mode step-down architecture.
The LT3652 incorporates a 2A switch that is driven by a
bootstrapped supply to maximize efficiency during
DEMO CIRCUIT 1568A
QUICK START GUIDE
2A Monolithic Multi-
Chemistry Battery Charger
the input falls below a programmed level, set
with a resistor divider. The charger is a CC/CV
charger with a maximum charge current of 2A. A
precondition feature trickle charges a low-
voltage battery, and bad battery detection pro-
vides a signal if the battery doesn't respond to
preconditioning.
The LT3652EDD is available in a 12-lead (3mm
× 3mm) DFN surface mount package with an
exposed pad.
Design files for this circuit board are available. Call
the LTC factory.
L
, LTC, LTM, LT, Burst Mode, OPTI-LOOP, Over-The-Top and PolyPhase are registered
trademarks of Linear Technology Corporation. Adaptive Power, C-Load, DirectSense, Easy
Drive, FilterCAD, Hot Swap, LinearView, μModule, Micropower SwitcherCAD, Multimode
Dimming, No Latency ΔΣ, No Latency Delta-Sigma, No R
PowerPath, PowerSOT, SmartStart, SoftSpan, Stage Shedding, SwitcherCAD, ThinSOT,
UltraFast and VLDO are trademarks of Linear Technology Corporation. Other product names
may be trademarks of the companies that manufacture the products.
11.5V to 32V
8.04V to 8.36V
8.2V
2A
charging cycles. A wide input range allows operation to
fully charge from 11.5V (single cell) to 32V. A precision-
threshold shutdown pin allows the incorporation of
UVLO functionality using a simple resistor divider. The
IC can also be put into a low-current shutdown mode, in
which the input supply bias is reduced to only 15uA.
The LT3652 incorporates several degrees of charge cur-
rent control freedom. The overall maximum charge cur-
LT3652EDD
LT3652EDD
, Operational Filter, PanelProtect,
SENSE
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LT3652EDD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Linear Technology LT3652EDD

  • Page 1 0.154% error. The LT3652 has an input voltage PowerPath, PowerSOT, SmartStart, SoftSpan, Stage Shedding, SwitcherCAD, ThinSOT, UltraFast and VLDO are trademarks of Linear Technology Corporation. Other product names regulation loop which reduces charge current if may be trademarks of the companies that manufacture the products.
  • Page 2: Quick Start Procedure

    Demonstration circuit 1568A is easy to set up to evaluate 2. Turn on PS2 and slowly increase the voltage to the performance of the LT3652EDD. 5.4V while monitoring the current into the BAT pin. If the current is less than 5mA, turn on PS1.
  • Page 3 LT3652EDD 5. Increase PS2 until VBAT is 8.5V. Verify the battery 10. Turn on LOAD1 and set to 1A. Verify the voltage, charging current, IBAT, is less than 5mA and that Vsystem, on the System Load turret is approxi- the CHRG LED is off.
  • Page 4 LT3652EDD Note: All connections from equipment should be Kelvin connected directly to the Board PINS which they are connected to on this diagram and any input, or output, leads should be twisted pair. Figure 1. Proper Measurement Equipment Setup for DC1568A...
  • Page 5 LT3652EDD Figure 2: Schematic diagram...
  • Page 6 LT3652EDD Bill of Materials...
