- Page 1 Round Fan Range Installation and Wiring Instructions Code:- MON-DMEVR100 Code:- MON-DMEVR100HT Code:- MON-DMEVR125 220-240V~50Hz Code:- MON-DMEVR125HT PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS. IPX5...
-
Page 2: Safety And Guidance Notes

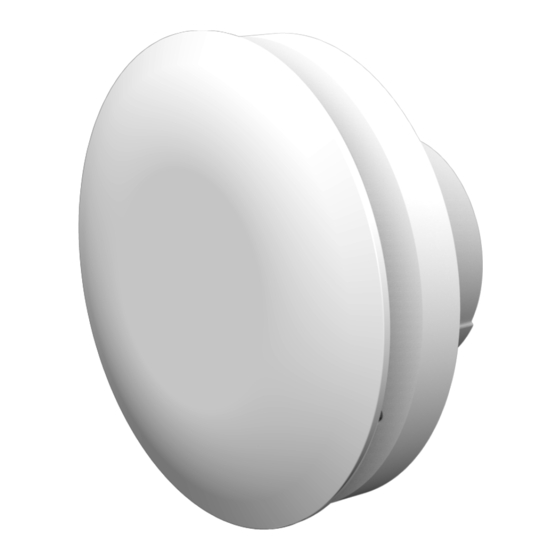

C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Monsoon products. E. The fan should only be used in conjunction with fixed wiring. - Page 3 DESCRIPTION The Monsoon dMEV round fan is a continuously running extract fan for kitchens, utility rooms, bathrooms and toilets. The incorporated speed control dial allows the fan to be configured to suit the installation airflow requirements. All models include a fixed Overrun Timer with Comfort Mode and external wind pressure detection as standard.
-
Page 4: Exterior Wall Mounting
A. INSTALLATION PANEL/CEILING/ INTERIOR WALL MOUNTING Cut a 107mm diameter hole for 100mm fans or a 130mm hole for 125mm fans. Note: The 100mm and 125mm fans have outer product diameters of 190mm and 220mm respectively, when positioning the fan, please provide at least 10cm between any adjacent walls or ceilings and the fan. - Page 5 B. WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING INSTALLATION OR MAINTENANCE. IMPORTANT • The cross - sectional area of supply cord used should be ranged from 0.75 -1.5mm • This is a fixed wired product; flexible cord must not be used. •...
- Page 6 Speed Selection The fan speed is only adjustable within the first 5 minutes of mains power. The trickle flow rate can be quickly adjusted via the dial as shown – either with the inner grille on or off (see below images). The 10-100% scale relates to a flow rate of between 5-24l/s and 5-26l/s for the 100mm and 125mm models respectively.
-
Page 7: Servicing And Maintenance
*To enable comfort mode: 1. Power cycle the fan. Wait 30 seconds. 2. Switch LS on and off 5 times within 20 seconds (leaving a minimum of 1 second between each consecutive toggle). 3. Comfort mode is now enabled. 4. The Comfort mode setting persists between power cycles. To disable, repeat instructions 1 and 2. - Page 8 Fig.1 Continuous trickle (no manual boost). (The fan is internally fused) 220-240V ~ 50Hz Switched Spur Fig.2 Continuous boost with no trickle facility. (The fan is internally fused) 220-240V ~ 50Hz Switched Spur Fit Link wire Between L & LS...
- Page 9 1. Rotate grille counter-clockwise 2. Remove tile cover 3. Loosen 3 grille screws (do not fully remove) 4. Pull the inner grille forward off the fan Wiring terminals (220-240VAC ~ 50Hz) Mounting fixing Mounting fixing Rear cable entry Speed Adjustment Side cable entry Dial (cut plastic side...
- Page 10 Quick Setup 1) Ensure fan is isolated from mains. Trickle 2) Set the installation type – wall or ducted Speed Dial (SW1) 3) Set trickle flow rate – Dial as shown in the table below. SW1 / SW2 Humidity models: The humidity sensor is fully automatic and does not require setting.
- Page 11 PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: National Ventilation National Ventilation National Ventilation National Ventilation Model ID (Stock Ref.) : MON-DMEVR100 MON-DMEVR100HT MON-DMEVR125 MON-DMEVR125HT SEC Class SEC Value ('Average') -14.90 -25.85 -14.31 -25.57 SEC Value ('Warm') -6.29...
- Page 12 Disposal This product should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority for recycling advice. National Ventilation, Stathe Road, Burrowbridge, Somerset, TA7 0RY EU Authorised Representative: National Ventilation Sigarenmaker 5 - 5521DJ Eersel Nederland authorisedrep@nationalventilation.nl Website: www.nationalventilation.co.uk email: info@nvagroup.co.uk Sales and technical hotline: 01823 690290...
