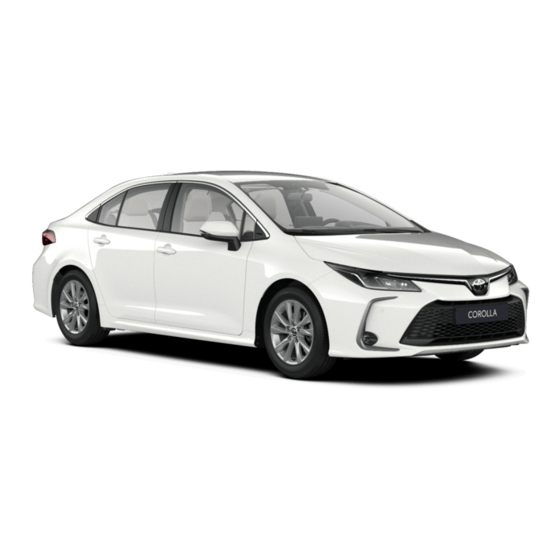

Corolla
2022
Owner's Manual Excerpt for
Driving Support Systems
Toyota Safety Sense 2.0 ...................................... 192
LTA (Lane Tracing Assist) ................................... 206
This document contains excerpts from the vehicle's Owner's Manual
for certain driving support systems.
Refer to the full Owner's Manual for detail on all vehicle systems.
All page numbers refer to the page of the Owner's Manual.
Advertisement
Related Manuals for Toyota Corolla 2022
Summary of Contents for Toyota Corolla 2022
- Page 1 Corolla 2022 Owner’s Manual Excerpt for Driving Support Systems Toyota Safety Sense 2.0 ........192 LTA (Lane Tracing Assist) ........206 This document contains excerpts from the vehicle’s Owner’s Manual for certain driving support systems. Refer to the full Owner’s Manual for detail on all vehicle systems.
- Page 2 4-5.Using the driving support systems WARNING Toyota Safety Sense 2.0 ■ The Toyota Safety Sense 2.0 The Toyota Safety Sense 2.0 is consists of the following designed to operate under the assumption that the driver will drive assist systems and...
- Page 3 Do not modify or paint the radar ● sensor or radar sensor cover. In the following cases, the radar ● sensor must be recalibrated. Contact your Toyota dealer for details. • When the radar sensor or front grille are removed and installed, or replaced...
- Page 4 Do not attach window tint to the ● windshield. Replace the windshield if it is ● damaged or cracked. After replacing the windshield, the front camera must be recali- brated. Contact your Toyota dealer for details. Do not allow liquids to contact ● the front camera.
- Page 5 In the following situations, perform the actions specified in the table. When ● the normal operating conditions are detected, the message will disappear and the system will become operational. If the message does not disappear, contact your Toyota dealer.
- Page 6 If the message does not disappear, contact your Toyota dealer. • When the temperature around the radar sensor is outside of the opera- tional range, such as when the vehicle is in the sun or in an extremely cold environment •...
- Page 7 4-5. Using the driving support systems LTA (Lane Tracing WARNING Assist) Before using LTA system ■ Do not rely solely upon the LTA ● : If equipped system. The LTA system does not automatically drive the vehi- While driving on a road with cle or reduce the amount of clear white (yellow) lane attention that must be paid to...
- Page 8 When the follow-up cruising dis- ● If your windshield needs ● play is displayed ( P.212) and repairs, contact your Toyota the preceding vehicle is being dealer. driven extremely close to the left/right lane line. (Your vehicle Conditions in which functions ■...
- Page 9 4-5. Using the driving support systems The vehicle is driven in an area WARNING ● without white (yellow) lines, Objects or patterns that could such as in front of a tollgate or ● be mistaken for white (yellow) checkpoint, or at an intersec- lines are present on the side of tion, etc.
- Page 10 4-5. Using the driving support systems that the vehicle might depart WARNING from its lane or course , a warn- The traffic lane is excessively ● ing is displayed on the narrow or wide. multi-information display, and a The vehicle is extremely tilted ●...
- Page 11 4-5. Using the driving support systems that the vehicle might depart from its lane or course , the sys- tem provides assistance as nec- essary by operating the steering wheel in small amounts for a short period of time to keep the vehicle in its lane.
- Page 12 4-5. Using the driving support systems the multi-information display and the function is temporarily canceled. Lane centering function ■ This function is linked with dynamic radar cruise control with full-speed range and pro- Turning LTA system on vides the required assistance by operating the steering wheel to Press the LTA switch to turn the keep the vehicle in its current...
- Page 13 4-5. Using the driving support systems or lane centering function is operat- ing. Both outer sides of the lane are dis- played: Indicates that steering wheel assist of the lane centering function is operating. One outer side of the lane is dis- played: Indicates that steering wheel assist of the steering assist function is operating.
- Page 14 4-5. Using the driving support systems Inside of displayed lines is • Vehicle speed is approximately 32 mph (50 km/h) or more. black • System recognizes white (yellow) lane lines or a course . (When a white [yellow] line or course recognized on only one side, the system will operate only for the recognized side.)
- Page 15 4-5. Using the driving support systems the following conditions are met. Temporary cancelation of func- ■ tions • Setting for “Sway Warning” in When operation conditions are no ● of the multi-information display is longer met, a function may be set to “ON”.
- Page 16 Also, if the system The system may not be operating determines that the vehicle is driv- properly. Have the vehicle inspected ing around a curve, warnings will by your Toyota dealer. occur earlier than during “LTA Unavailable” ● straight-lane driving.
- Page 17 4-5. Using the driving support systems “LTA Unavailable at Current ● Speed” The function cannot be used as the vehicle speed exceeds the LTA operation range. Drive slower. Customization ■ Function settings can be changed. (P.574)
