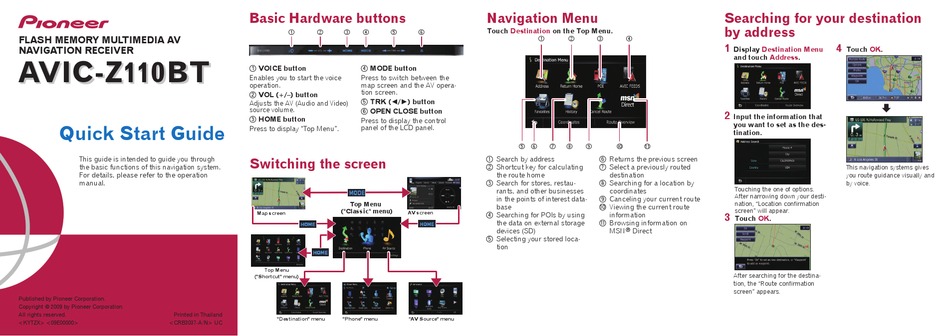

FLASH MEMORY MULTIMEDIA AV
NAVIGATION RECEIVER
AVIC-Z110BT
Quick Start Guide
This guide is intended to guide you through
the basic functions of this navigation system.
For details, please refer to the operation
manual.
Published by Pioneer Corporation.
Copyright © 2009 by Pioneer Corporation.
All rights reserved. Printed in Thailand
<KYTZX> <09E00000> <CRB3037-A/N> UC
Basic Hardware buttons
1 2 3 4 5 6
1 VOICE button 4 MODE button
Enables you to start the voice Press to switch between the
operation. map screen and the AV opera-
tion screen.
2 VOL (+/–) button
5 TRK (◄/►) button
Adjusts the AV (Audio and Video)
source volume.
6 OPEN CLOSE button
3 HOME button
Press to display the control
panel of the LCD panel.
Press to display "Top Menu".
Switching the screen
Top Menu
("Classic" menu)
AV screen
Map screen
Top Menu
("Shortcut" menu)
"Destination" menu "Phone" menu "AV Source" menu

Navigation Menu

Touch Destination on the Top Menu.
1 2 3 4
5 6 7 8 9 a b
1 Search by address 6 Returns the previous screen
2 Shortcut key for calculating 7 Select a previously routed
the route home destination
3 Search for stores, restau- 8 Searching for a location by
rants, and other businesses coordinates
in the points of interest data- 9 Canceling your current route
base a Viewing the current route
4 Searching for POIs by using information
the data on external storage b Browsing information on
®
devices (SD) MSN Direct
5 Selecting your stored loca-
tion
Searching for your destination
by address
1 4
Display Destination Menu Touch OK.
and touch Address.
2
Input the information that
you want to set as the des-
tination.
This navigation systems gives
you route guidance visually and
by voice.
Touching the one of options.
After narrowing down your desti-
nation, "Location confirmation
screen" will appear.
3
Touch OK.
After searching for the destina-
tion, the "Route confirmation
screen" appears.
