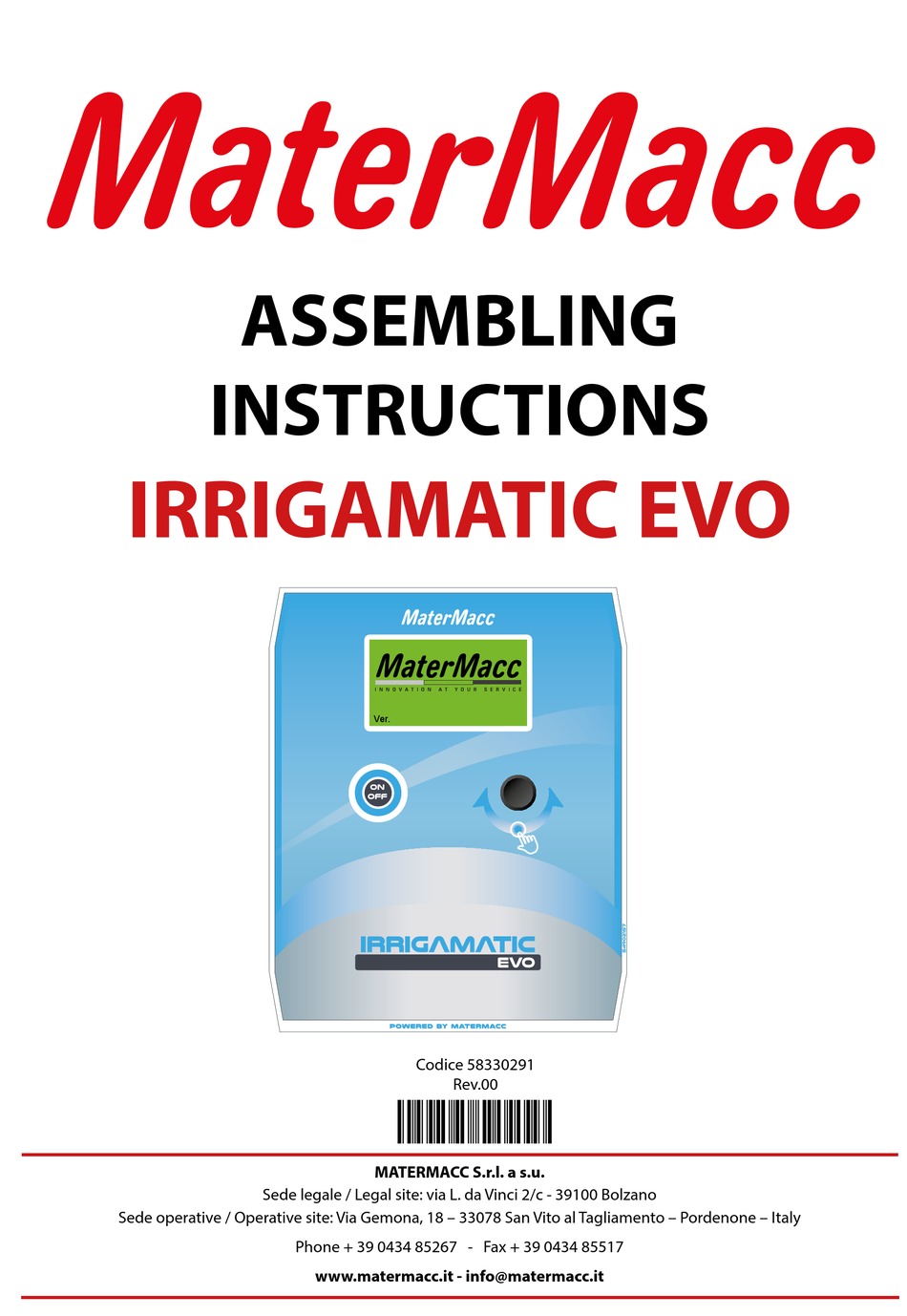

  • Page 1 Codice 58330291 Rev.00 58330291 MATERMACC S.r.l. a s.u. Sede legale / Legal site: via L. da Vinci 2/c - 39100 Bolzano Sede operative / Operative site: Via Gemona, 18 – 33078 San Vito al Tagliamento – Pordenone – Italy Phone + 39 0434 85267 - Fax + 39 0434 85517...
  • Page 2 Use and maintenace handbook...

  • Page 3: Table Of Contents

    Use and maintenace handbook Index E L E C T R O N I C C O N S O L E I N S T A L L A T I O N INSTALLATION OF THE SPEED SENSOR 2.1. INSTALLING AN INDUCTIVE SPEED SENSOR ON THE PINION 2.2.
  • Page 4 Use and maintenace handbook...
  • Page 5 Use and maintenace handbook INTRODUCTION WARRANTY This manual guide contains a description of the work and the • Verify on delivery that the equipment has not been da- necessary instructions for performing basic operations and maged during the transport and that the accessories are regular maintenance of the device.
  • Page 6 Use and maintenace handbook NOTES ON SAFETY OPERATIONAL SAFETY For the safe operation of the device first read carefully these Do not perform maintenance procedures, if they are not de- notes. scribed in the documentation, or no training was provided to the operator by the authorized regional dealer.

  • Page 7: E L E C T R O N I C C O N S O L E I N S T A L L A T I O

    Use and maintenace handbook INSTALLATION OF THE SPEED E L E C T R O N I C C O N S O L E SENSOR I N S T A L L A T I O N The eletronic console must be installed on the irrigator frame 2.1.

  • Page 8: Installation Of The Magnetic Speed Sensor With Roller

    Use and maintenace handbook 2.2. INSTALLATION OF THE MAGNETIC SPEED Should it be necessary to posi- SENSOR WITH ROLLER tion the sensor on the crown, and should the crown not be perfectly circular, keep at higher distance. 2.2.1. ROLLERINSTALLATION Then install a sensor with a wi- der reading range (optional up to The roller shall roll over the irrigation hose and shall be able 8mm).

  • Page 9: Installation Of The Adjusting Valve

    Use and maintenace handbook INSTALLATION OF THE ADJUSTING 3.1.3. MOTOR REDUCTION GEAR INSTALLATION VALVE Insert the motor reduction gear in the valve shaft in such a way as to position the shaft plug in the motor reduction gear seat. Insert the locking pin of the motor reduction gear in the 3.1.

  • Page 10: Installation Of A Ball Valve For Piston Irrigators

    Use and maintenace handbook 3.2. INSTALLATION OF A BALL VALVE FOR PISTON IRRIGATORS The rewinding speed adjustment for piston irrigators is obtained by means of a ball valve (¾”) with a female to fema- le threading on which the motor reduction gear is applied. The ball head valve is preferably installed in the delivery hose taking water to the piston, but it can be installed in the water drain as well.

  • Page 11: Installation Of The End-Of-Work Valve

    Use and maintenace handbook INSTALLATION OF THE END-OF- 4.2. SLOW- CLOSING VALVE WORK VALVE The slow-closing valve consists of a motor-driven butterfly valve. It can be mounted on the inlet (closing in approx. 4 minutes) to close the water delivery to the irrigator or on the 4.1.
  • Page 12 Use and maintenace handbook Pag. 08...

  • Page 13: Installation Of The End-Of-Rewinding Sensor

    Use and maintenace handbook INSTALLATION OF THE END-OF-RE- OPTIONS WINDING SENSOR 6.1. PRESSURE SWITCH INSTALLATION The end-of-rewinding sensor is used to give the gearcase The Irrigamatic machines are preset for direct connection to consent to start the procedures of end-ofwork once the who- the electronic gearcase of a pressure switch used to inform le hose has been rewound.

  • Page 14: How To Calibrate The Pressure Switch

    Use and maintenace handbook 6.1.1. HOW TO CALIBRATE THE PRESSURE SWITCH 6.2. OUTER ALARM In EVO1 - EVO4 models (preset appliances) an outer alarm Upon supply, pressure switch calibration is random. (beeper, flashing light or other) the power supply of which is obtained directly from the battery.

  • Page 15: Scheme

    Use and maintenace handbook SCHEME 7.1. IRRIGAMATIC EVO1 - EVO4 CONNECTION DIAGRAM Alim 12V cc IN AUX 3° Motor End rewinding Motor Wind/Rain Sensor Flowmeter Motor Pressostato End unwinding MAGNETIC SPEED SENSOR MAGNETIC SPEED SENSOR CONNECTOR WIRING CONNECTOR WIRING Ground (BROWN*) Ground (BLUE)
  • Page 16 Use and maintenace handbook Pag. 12...

  • Page 17: User Interface

    Use and maintenace handbook USER INTERFACE The user interface is made up of a panel comprising: 1. A graphic LCDl with backlight. 2. Push button to switch ON/OFF the console 3. Incremental encoder with switch setting and command operation. During an irrigation cycle the display shows actual speed, end job time, remaining unwounded hose, remaining pause time In case of anomalies appropriate messages are shown,.

  • Page 18: Instructions For Use

    Use and maintenace handbook 9.2. HOW TO ACCESS MENU INSTRUCTIONS FOR USE (General Procedure) 9.1. START UP AND MAIN MENU To access menu and parameters to set-up the console • Connect power supply cables of electronic console to a you ave to perform only three actions: 12V d.c.

  • Page 19: Configuration

    This access password is personalized for every manufac- until the value is hi- INLET turer. It is entered by Matermacc and communicated only ghlighted and press the knob. to the interested parties.

  • Page 20: Parameters Reserved To The Manufacturer

    Use and maintenace handbook 10.2. PARAMETERS RESERVED TO THE MANUFACTURER Configuration parameters are described by the table below. Description Range Default Position flux valve - Inlet inlet Flag Visible also to the end user (password 1111). - discharge Timeout (opening phase) flux valve if inlet. [30...360] Timeout (closing phase) flux valve if inlet.
  • Page 21 Use and maintenace handbook Description Range Default [5...250] Conversion factor in case of “on roller speed” sensor (mm/pulse). mm / pulse 0 = EU Measuring units Visible also to the end user (password 1111). 1 = UK EU (m, m/h, mm, mc/h,bar); UK (ft, ft/h, mil, UK gal/min,psi); US (ft, ft/h, mil, US gal/ 2 = US min,psi) Language...
  • Page 22 Use and maintenace handbook Description Range Default Excludes flow valve movement in case of low pressure. 0 = DEV moved Flag Parameter can also be viewed by the end user (password 1111). 1 = DEV not moved moved To select the type of flowmeter 0 = analogue [5...1000] l/pulses Visible only if #59 = 0 and if #19 = mm H2O.

  • Page 23: Calibration

    Use and maintenace handbook CALIBRATION - TYPE OF CALIBRATION E’ accessibile solo se si è selezionato nella CONFIGURAZIO- (MATHEMATIC) NE una macchina con rullo su pignone (parametro #14). Il • The control unit automatically menu di CALIBRAZIONE è protetto da password. E’ accessibile calculates the (m) and (mm/i) solo con le password riservate al costruttore dell’irrigatore.
  • Page 24 Use and maintenace handbook TABLES OF PARAMETERS OF CALIBRATION Maker Model ..............................Number Date ............................. □ □ Model IRRIGAMATIC EVO 1 EVO 4 NUMBER PARAMETER LENGHT PARAMETER CONVERSION LENGHT LAYER LAYER (m) mm/PULSE READING THE TUBE (m)
  • Page 25 Use and maintenace handbook...
  • Page 26 MATERMACC S.r.l. a s.u. Sede legale / Legal site: via L. da Vinci 2/c - 39100 Bolzano Sede operative / Operative site: Via Gemona, 18 – 33078 San Vito al Tagliamento – Pordenone – Italy Phone + 39 0434 85267 - Fax + 39 0434 85517...
