JVC LT-43C888 Quick Start Manual

Quick Start Guide

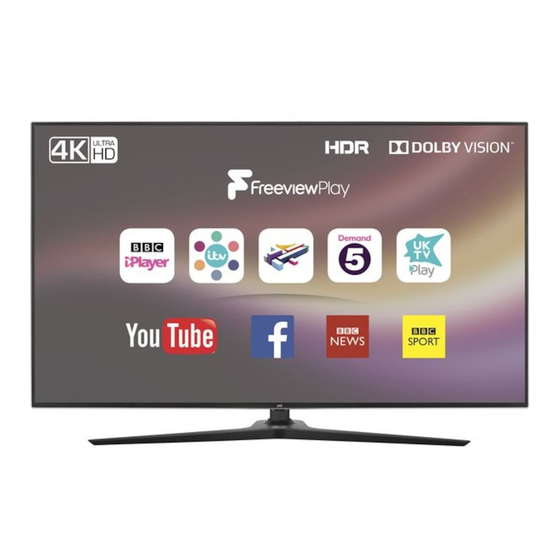

43" LED Smart 4K HDR TV
LT-43C888
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off the TV if
it is left on and idle for 4 hours. Please refer to "Auto Standby" under the
"Time Settings" section of the instruction manual for more detail.
1
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to any local regulations.
TV TV Stand Base
TV Stand Neck Remote Control/
AAA Batteries x2
TV Stand Neck cover
Screws (A) x 5
Please inspect your TV for damage after unpacking. If you do notice any damage please consult your dealer.
2
Operating Your Remote Control
1. Slide open the battery compartment on the back of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - )
ends of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Slide the battery compartment cover back into place. Make sure it clicks
into place.
JVC 43' LED Smart 4K HDR TV LT-43C888 Quick Start.indd 1
Screws (B) x 6
Instruction Manual
Quick Start Guide
3
Installing the Base Stand
Fitting the Neck and Neck
Cover Together
1. Fit the neck cover over the neck.
2. Using 2 of the supplied screws (A),
screw the neck and neck cover
together.
Fitting the Neck and Stand to the TV
3. Ensure the TV is switched off and not connected to
the mains power supply.
4. Lay the TV down on a flat surface ideally on the
edge of a table so the base of the TV slightly
overhangs the edge of the table, with the back side
facing up. Please make sure a soft cushioned
material (such as a dry bath towel or thick piece of
foam) is placed beneath the screen. You can leave
the protective bag on to protect the TV at this point.
5. Slide the Neck and Neck cover under the lip, the
neck will fit snugly over the screw holes. Then screw
the Neck to the TV using the 6 screws (B) supplied.
6. Once the Neck is secure screw the base to the neck
using the 3 screws (A) supplied. Be careful not the
drop the base, its heavy.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object,
or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because
the screen could crack.
4
Connecting the Aerial and Turning on the TV
1. Connect one end of the RF coaxial cable
Optional
to the aerial socket on the wall and the
other end of the cable to the ANT socket
If you want to connect to the internet via a wired connection then
on the back of your TV.
connect your ethernet cable to the LAN socket.
2. Plug the TV into a mains socket and
switch on at the mains.
3. In standby mode, press the button on
the remote control to turn the TV on. The
LED indicator will flash for a few seconds
then the TV will switch on.
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power.
To completely disconnect the mains power, please remove the mains plug from the mains socket.
A
A
Protective
Bag
B
A
Table Cushioned
material
RF coaxial cable
(not included)
20/02/2018 12:47
