7. Connect the fault relay contact of the charger to the required Router contact; see Figure 8.
Check the system design documentation for connection details.

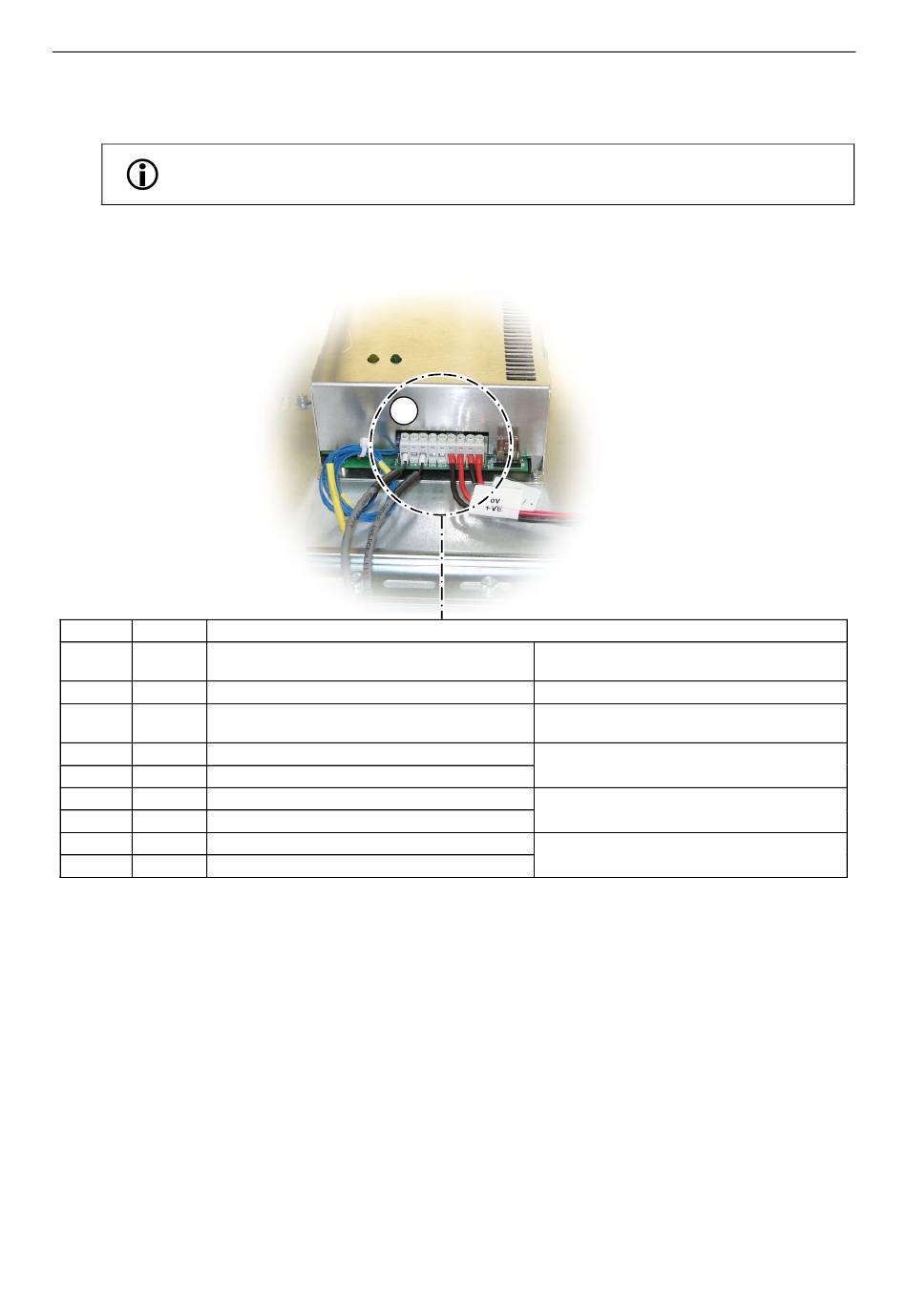

Figure 8 Fault relay contacts (rear of rack)
Terminal Signal Description
1 FLTNO Fault relay N/O contact
2 FLTNC Fault relay N/C contact
3 FLTCOM Fault relay COM contact
4 OSNO DC power available relay N/O contact
5 OSCOM DC power available relay COM contact
6 0V Auxiliary DC power supply output: 0V wiring (black)
7 +V Auxiliary DC power supply output: +VE wiring (red)
8 -BT Battery connection –BATT wiring (black)
9 +BT Battery connection +BATT wiring (red)
BPC65 / BDIST / MDIST – Installation Guide
CHARGER
1
U-0456-0142.doc – Issue: 03 complete, approved
Page 10 of 20
REAR OF RACK
Volt-free relay contact (for connection to any
available Router contact)
Not used
Volt-free relay contact (for connection to 0 V from
the Router)
Volt-free relay contact (not used)
Wired at manufacture to +BATT&-BATT lead pair
Wired at manufacture to +VE&0V lead pair
