PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional
use and low-volume applications. A wide selection of powered application equipment is available for extended-use production operations.
The SDE-SA hand tool is a commercial-grade tool. Product crimped with this tool meets the wire barrel crimp height requirement for hand
tools in the appropriate 114 application specification, but might not comply with other feature parameters of the specification.

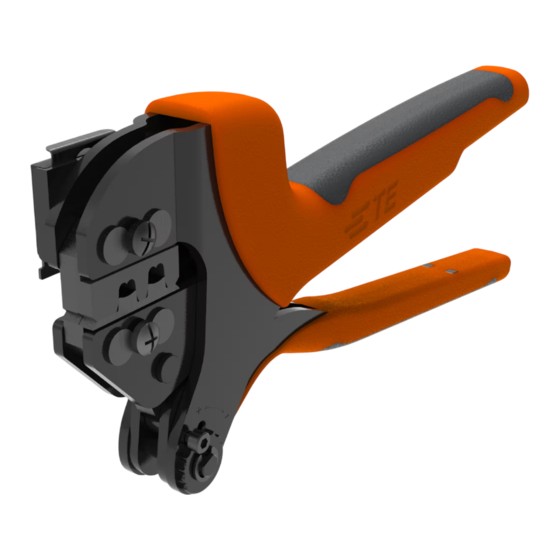

Figure 1: SDE-SA Commercial Hand Tool Assembly 2063429-1 with Die Assembly 2063429-2
Insulation crimper (upper die)
1
Wire crimper (upper die)
2
Die set 2063429-2
3
Wire anvil (lower die)
4
Insulation anvil (lower die)
5
© 2021 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
SDE-SA Commercial Hand Tool
Assembly; PN 2063429-1 with
Die Assembly PN 2063429-2
Moving jaw
6
Stationary jaw
7
Nut
8
Locator
9
Emergency ratchet release
10
PRODUCT INFORMATION 1-800-522-6752
408-35163
Handle
11
Die retention screws (2)
12
Die retention pins (4)
13
Ratchet adjustment wheel
14
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
Rev A
7 MAY 2021
1 of 8
