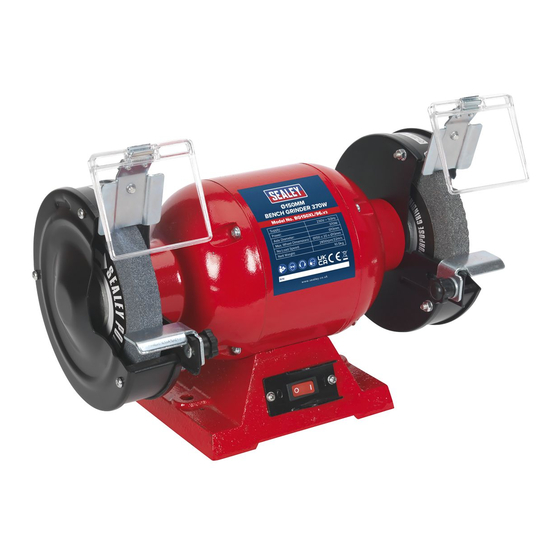

Sealey BG150XL/96 Instructions
Sealey BG150XL/96 Instructions

Sealey BG150XL/96 Instructions

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPorTAnT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1.
ELECTRICAL SAFETY. p WARNING! It is the user's responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads,
plugs and all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of
appropriate safety devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We
also recommend that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to use an RCD
together with portable products that are plugged into an electrical supply not protected by an RCCB. If in doubt consult a professional
electrician. You may obtain a Residual Current Device by contacting your Sealey dealer. You must also read and understand the
following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on a business premises, to be tested by
a qualified Electrician at least once a year by using a Portable Appliance Tester (PAT).
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power supply. See 1.1.1. & 1.1.2.
above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply, leads, plugs and all electrical connections for wear and
damage, especially power connections, to ensure that none are loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical
power supply to be used, and check that plugs are fitted with the correct capacity fuse.
A 13A plug may require a fuse smaller than 13A for certain products (subject to 1.1.10.
below) see fuse rating at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately replace or
have repaired by a qualified Electrician. A U.K. 3 pin plug with ASTA/BS approval is
fitted. In case of damage, cut off and fit a new plug according to the following
instructions (discard old plug safely). (UK only - see diagram at right). Ensure the unit
is correctly earthed via a three-pin plug.
a) Connect the grEEn/YElloW earth wire to the earth terminal 'E'.
b) Connect the broWn live wire to live terminal 'l'.
c) Connect the bluE neutral wire to the neutral terminal 'n'.
After wiring, check there are no bare wires, that all wires have been correctly
connected and that the wire restraint is tight.
Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always
marked with this symbol
to the earth terminal.
1.1.10. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cable on the cable
reel is important. We recommend that at least 1.5mm² section cable but to be absolutely sure that the capacity of the cable reel is
suitable for this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm² section cable.
1.2 GENERAL SAFETY
WARNING! Disconnect the grinder from the mains power, and ensure the grinding wheels are at a standstill before attempting to change
p
accessories, service or perform any maintenance.
Note: With the exception of "Abrasive Wheels Regulations"' safety instructions will also apply to use of a wire brush on appropriate models.
3 Maintain the grinder in good condition and check moving parts alignment regularly.
3 Replace or repair damaged parts. Use recommended parts only. Non authorised parts may be dangerous and will invalidate the warranty.
DANGER! DO NOT use a damaged stone as it is dangerous and may cause damage or serious personal injury.
s
p WArnIng! only persons qualified under the "Abrasive Wheels regulations" and holding a current grinding wheel
certificate are to change or dress grinding stones. unplug grinder from mains power and refer to chapter 4 "grinding Stones" for details.
WARNING! Keep all guards and holding screws in place, tight and in good working order. Check regularly for damaged parts.
p
A guard or any other part that is damaged should be repaired or replaced before tool is used. The safety guard is a mandatory fitting where
grinder is used in premises covered by the Health & Safety at Work Act.
3 Locate grinder in an adequate working area for its function, keep area clean, tidy and free from unrelated materials. Ensure adequate
lighting.
3 Before each use check grinding wheel for condition. If worn or damaged replace immediately.
p WARNING! Always wear approved eye or face protection when operating the grinder.
3 Use breathing protection in accordance with COSHH regulations if fumes or dust pose a hazard. Wear ear defenders and gloves if necessary.
3 Keep hands and body clear of the workpiece when operating the grinder.
3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
3 Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
3 Keep children and unauthorised persons away from the working area.
7 DO NOT force the grinder to achieve a task it was not designed to perform.
7 DO NOT operate the grinder if any parts are damaged or missing as this may cause failure or possible personal injury.
© Jack Sealey Limited
INSTRUCTIONS fOR:
BEN CH G RI ND ER S
M ODE L N o' s:
. To re-wire, connect the brown & blue wires as indicated above. Do noT connect the brown or blue
Original Language Version
B G1 50 X L / 9 6, BG 15 0X LW / 9 8
Recommended Fuse
Rating: 3A
BG150XL/96, BG150XLW/98
Issue:4(L)- 03/03/14

Advertisement

loading

Summary of Contents for Sealey BG150XL/96

  • Page 1 B G1 50 X L / 9 6, BG 15 0X LW / 9 8 M ODE L N o' s: Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance.
  • Page 2 Install a new stone as in 4.2. Once mounted on the grinder test the stone before use by facing the grinder in a safe direction (point away from yourself, others and vulnerable items) and run for a short time. Dress the stone if necessary. Original Language Version © Jack Sealey Limited BG150XL/96, BG150XLW/98 Issue:4(L)- 03/03/14...
  • Page 3 WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim. INFORMATION: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode. Sole UK Distributor, Sealey Group, www.sealey.co.uk...
