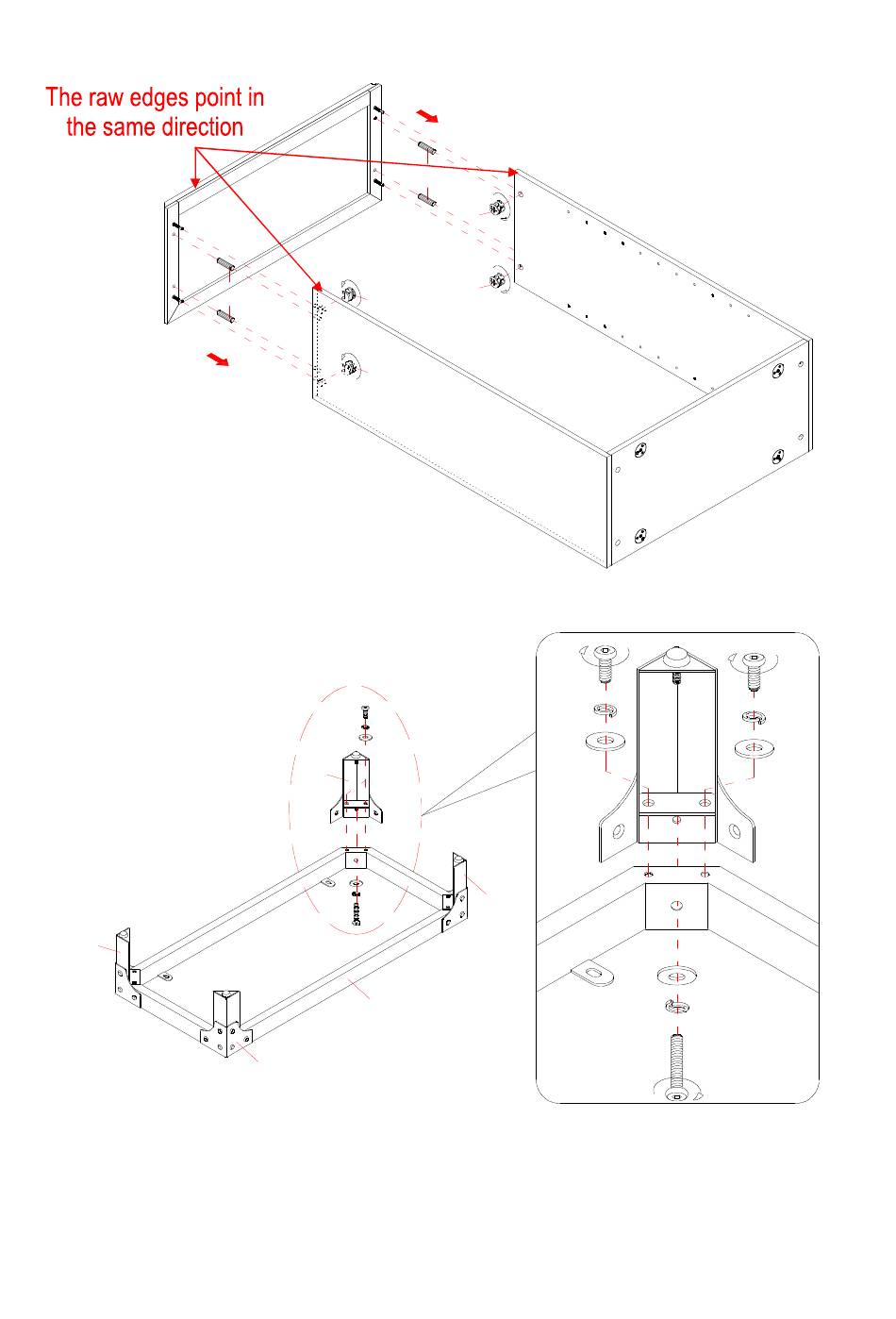

4. Attach the Top Panel (A) to the Side Panels (B and C) with four 30 mm Wood Dowels (3) and four Cam
Locks (1).
H
5. Attach the Legs (H) to the corner of the Bottom Frame (G) with four 1-3/8" Bolts (5) and four Washers
(6 and 7).
6. Fasten the Legs (H) in place with eight 5/8" Bolts (4) and eight Washers (6 and 7).
