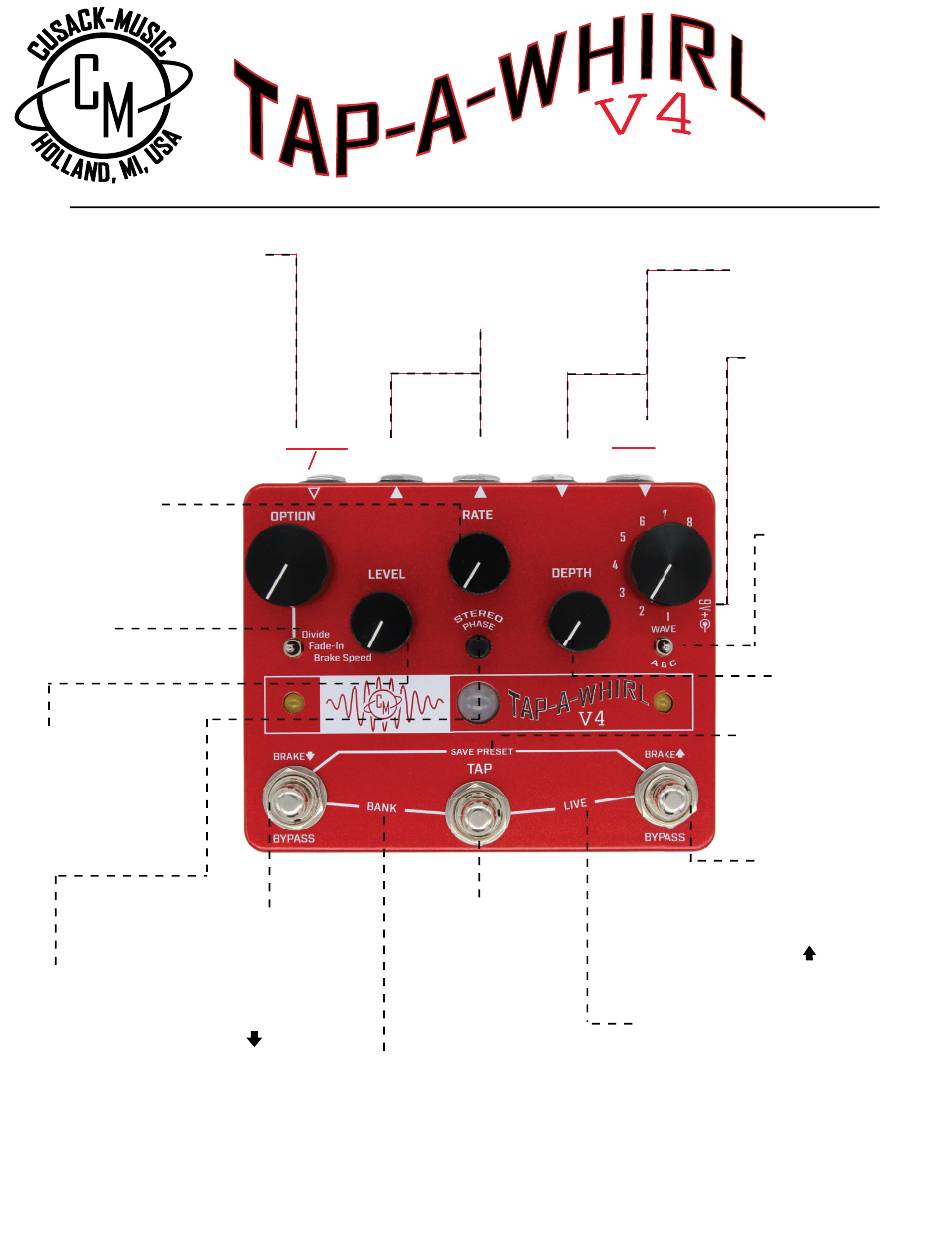

Cusack-Music TAP-A-WHIRL V4 Quick Start Manual

Connect to EXP/TAP/SYNC for:
-EXPression pedals with TRS plug. This
can be set for any one parameter per
preset. To configure, see next page.
-External TAP tempo switches (normally
off/open) with a TS plug.
-SYNC analog clock signal (2-5v square
wave) with TS plug.
RATE controls the speed of
the LFO. Using TAP tempo
overrides this control.
Use OPTION to adjust Divide (tap
tempo subdivisions), Fade-In
time, and Brake Speed. See next
page for details.
LEVEL adjusts the output
volume. Use this to add
make-up volume for the
perceived volume loss at
high DEPTH settings.
STEREO PHASE adjusts
the phase offset of [R]
OUT in stereo. Adjustable
between 0 and 360
degrees. The knob
straight up is 180 degrees
for symmetrical left and
right panning.
For a mono output signal, use [L] OUT. For a
stereo output signal use both [R] and
[L] OUT. Stereo output can be utilized with
a mono or stereo input signal.
EXP
[R] OUT
TAP SYNC
BYPASS
Tap to
engage/disengage the
effect. In Preset (start-
up) mode, this engages
the left preset. Hold for
Brake
to decrease
RATE.
To cycle through preset banks, tap
BYPASS-left and TAP. There are four
banks: red, green, blue, and pink.
Each BANK can store a preset for
the left and right footswitches, for a
total of eight possible presets.
[L] OUT [R] IN
TAP tempo. Interactive
with Divide. Overrides
where RATE knob is set.
For a mono input signal,
use [L] IN. For a stereo
signal, use [L] and [R] IN.
Power with a standard 9V DC
center-negative power supply.
Current draw ~22mA
[L] IN
MONO Use the WAVE switch and
knob to select the LFO
wave shape. See next
page for wave shapes.
DEPTH
amplitude of the LFO, or
how deep the tremolo is.
SAVE
To
BYPASS-left and BYPASS-right.
See next page for details.
Tap
engage/disengage
effect. In Preset (startup)
mode, this engages the
right preset.
Brake
To enter LIVE mode, hold TAP and
BYPASS-right for two seconds. LIVE
mode disables preset mode, all
knobs function in their physically set
positions. Center LED will alternate
white.
Cusack Music
514 Lincoln Ave
Holland, MI 49423
CUSACKMUSIC.COM
Manufactured in
Holland, Michigan, USA
controls the
PRESET,
hold
BYPASS
to
the
Hold for
to increase RATE.
