Summary of Contents for Kettler PLD33

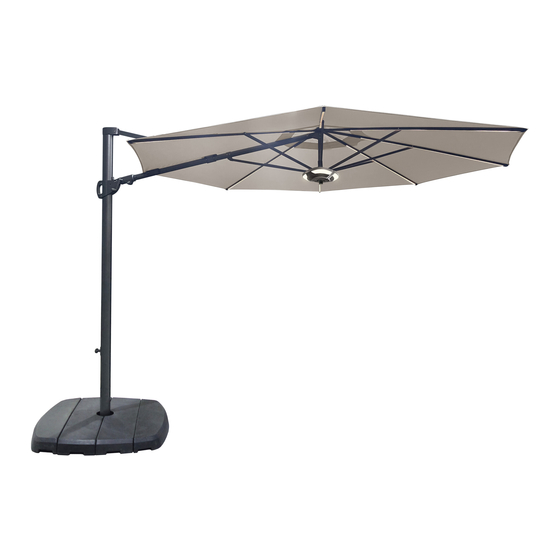

- Page 1 Assembly Instructions 3.3 m LED Free Arm Parasol PLD33 IMPORTANT PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE. THIS IS IMPORTANT INFORMATION REGARDING THE MINUTES USE AND CARE OF YOUR GARDEN FURNITURE. ASSEMBLY PERSONS TIME REQUIRED Dec 2022...
-
Page 2: Parts List
6. Do not use any other tools other than those recommended to build this product. 7. Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler. 8. In the unlikely event that this product has missing or damaged parts, please visit our website www. - Page 3 Assembly Each section of the base requires 20kg of sand and then needs Sand to be topped up with Water water. Water alone will not support the parasol. Open Tip: use kiln dried sand for easier filling. Close...
- Page 4 Assembly...
- Page 5 Operating Instructions The parasol will rotate 360 degrees by pulling out the knob and turning the knob 180 degrees.
- Page 6 Operating Instructions power indicator light light switch power indicator light switch USB port Power base USB Cable USB output Removable Battery pack The power base and battery pack are connected by magnet.
- Page 7 Operating Instructions Spoke end cap Plastic strip LED strip Assembly Spoke end cap Plastic strip LED strip Changing an LED light strip Disassembly...
- Page 8 Operating Instructions The parasol should be closed and the night cover fitted in windy conditions and when not in use. Failure to do this may result in damage to the parasol. The night cover fits over the canopy and frame. Protective cover assembly: Fiberglass supporting...
- Page 9 • To turn on, hold down the wireless switch for 3 seconds. • Turn on your device’s Wireless function and search for “Kettler”. • The run time is approx. 6-10 hours. • To turn the light on/off press the “LIGHT”...
- Page 10 Information This parasol has UV50+ protection. What does that mean? For example, a fabric with a UPF rating of 50 only allows 1/50th of the sun’s UV radiation to pass through it. This means that this fabric will reduce your skin’s UV radiation exposure by 50 times (98% UV block).
-
Page 11: For Your Safety
• Damaged components may endanger your safety or shorten the life of the product. Replace all damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop •...
