Summary of Contents for LUTEC 7635402012

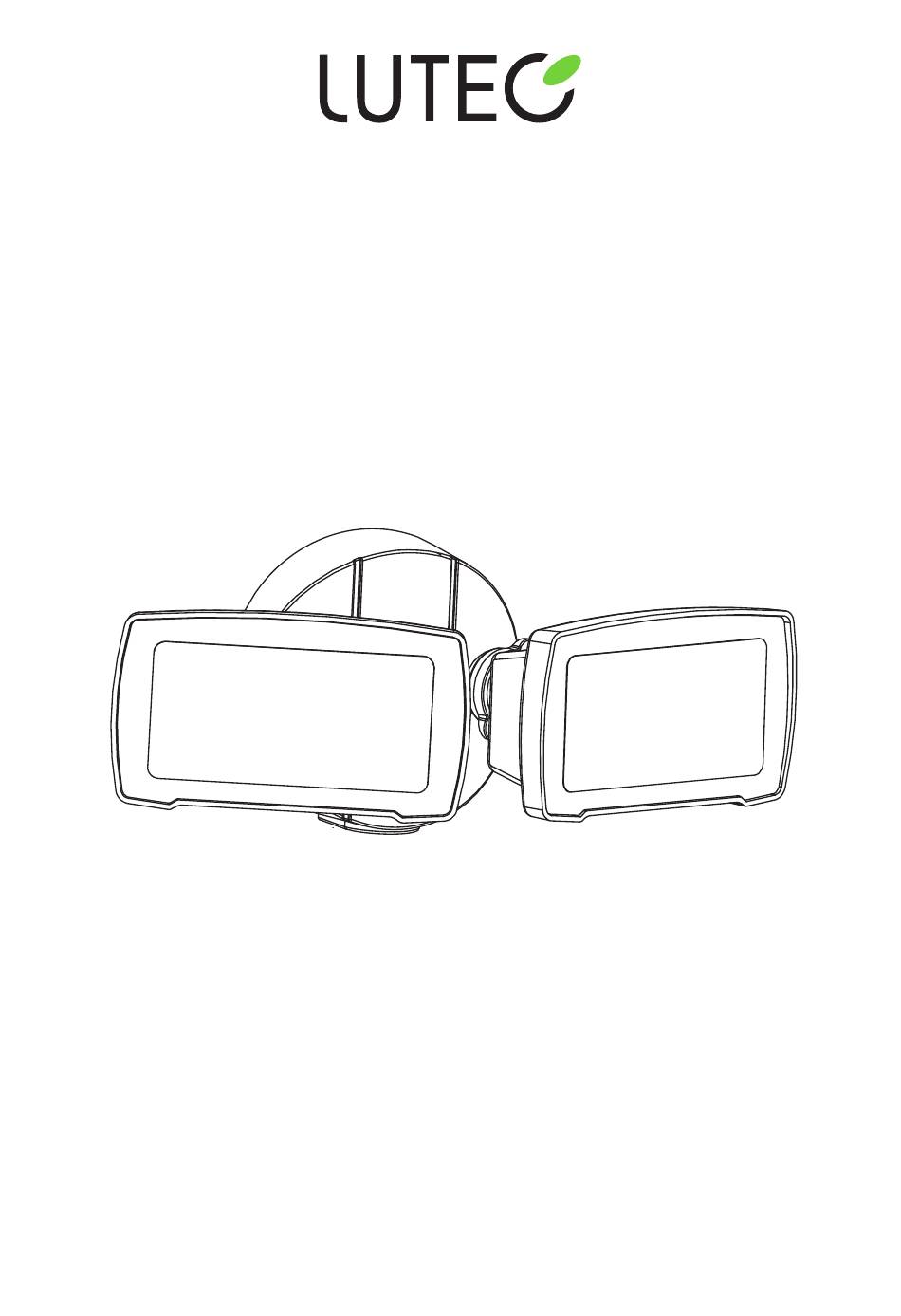

- Page 1 LED FLOODLIGHT Owners Manual MODEL #7635402012/7635402053 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fixture HARDWARE CONTENTS (not shown actual size) Screw Wire Nut Mounting Rubber Foam Plate Plug Qty. 3 Qty. 1 Qty. 1 Qty. 1 Qty. 2...
- Page 3 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING: • Consult a qualified electrician if you are not certain about the installation process. Always install wiring connections in accordance with local code, ordinances and the National Electric Code. •...
- Page 4 2. Remove the screw pre-assembled in the mounting plate (CC). Put the screw a side as they will be used later. 3. Attach the mounting plate to the junction box (not included) using the two screws (AA). Then attach the foam pad (EE) to the mounting plate.
- Page 5 5. Attach the light fixture (A) to the mounting plate using the screw previously removed in step 2. Then insert the rubber plug (DD). 6. After mounting the fixture, apply silicone caulking compound completely around the perimeter of the cover plate where the back of the cover plate meets the mounting surface.
- Page 6 PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. LUTEC USA LLC: 149B Houston Rd Troutman NC 28166 Ningbo UTEC Electric Co.,LTD CN8, Far East Industry Park, Yuyao, China www.lutec.com...
