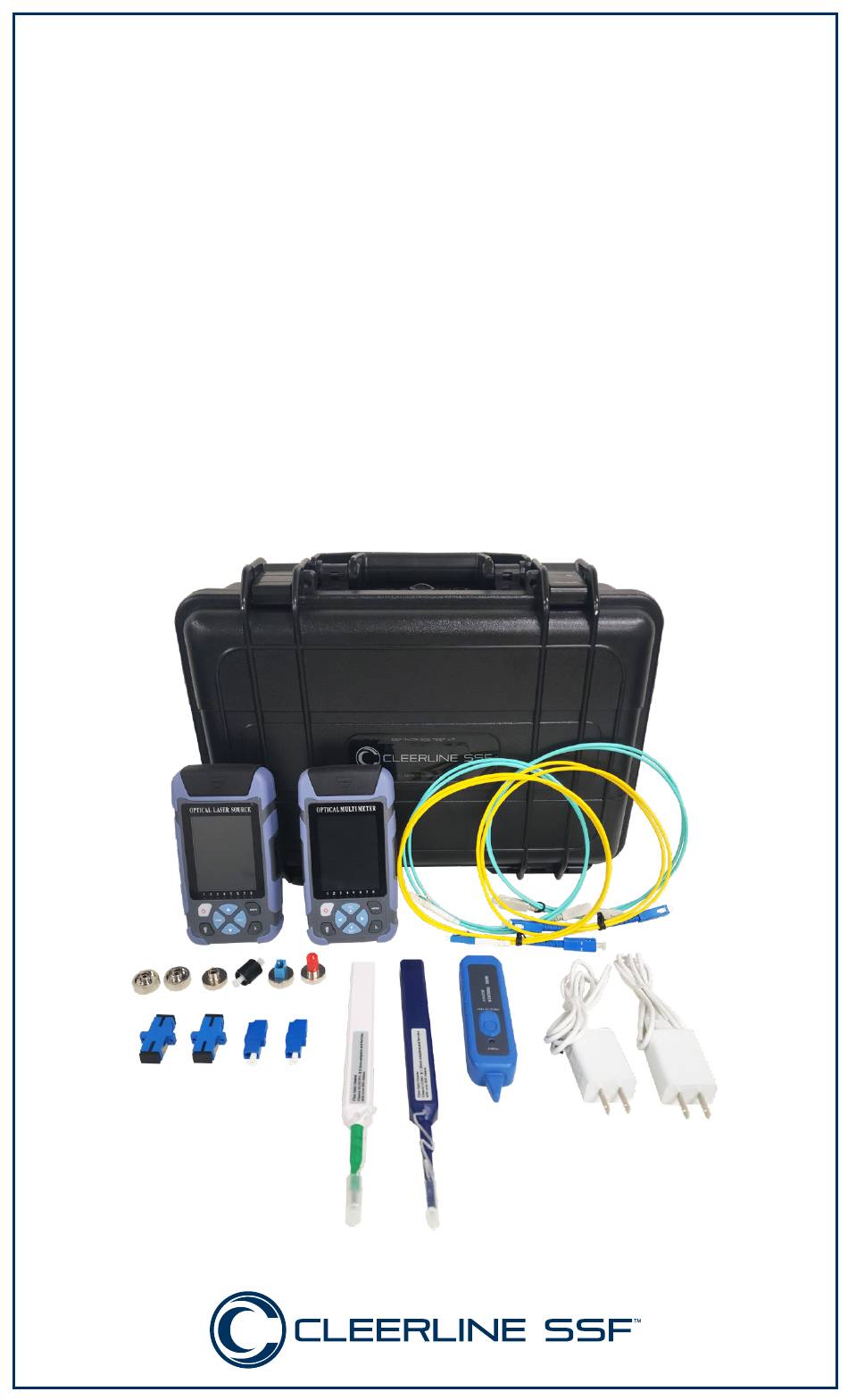

- Page 1 SSF-TKITP-500 SSF™ Pro Fiber Test Kit Manual...
- Page 2 OPTICAL FIBER TEST KIT WARNING To avoid the risk of serious eye damage, do not look into the laser at any time.
-
Page 3: Table Of Contents
OPTICAL FIBER TEST KIT CONTENTS Handheld Light Source Overview Features Accessories Specifications Ports Function Keys Screen Icons Light Source Sequencing and Tracking RJ45 Sequencing RJ45 Cable Tracking System Settings Maintenance and Troubleshooting Troubleshooting Warranty Handheld Power Meter Overview Features Accessories Specifications Ports Function Keys... -
Page 4: Overview
OPTICAL FIBER TEST KIT Handheld Optical Light Source HANDHELD OPTICAL LIGHT SOURCE This handheld optical light source is controlled by a chip microprocessor and displayed by 2.8 inches color LCD. Constructed using advanced thermoplastic molding technology for improved durability. It supports both SM/MM light source output wave ID and TWINS mode output. -
Page 5: Specifications
OPTICAL FIBER TEST KIT Handheld Optical Light Source Specifications Model Optical Light Source Operating wavelength (nm) 850/1300±20 nm 1310/1490/1550±20 nm Applicable fiber SM, MM Laser type FP-LD Maximum output power (dBm) ≤-5 dBm Adjustable step size (dBm) 0.1 dB/1 dB ±0.2 dB/15min Stability (dB, 15min, 20°C) ( After preheating for 15 minutes ) -
Page 6: Ports
OPTICAL FIBER TEST KIT Handheld Optical Light Source Ports (SM or MM) Left Panel LEFT RIGHT BOTTOM... - Page 7 OPTICAL FIBER TEST KIT Handheld Optical Light Source Ports LEFT Charging indicator TypeC port RJ45 sequencer port LCD screen Sequence indicators Function keys BOTTOM RJ45 Remote Sequence Module Dust Cover LED Flashlight MM laser source port SM laser source port...
-
Page 8: Function Keys
OPTICAL FIBER TEST KIT Handheld Optical Light Source Function Keys Power On/Off: Short press to turn the unit on or off. Auto Shut-Off Selection: After power is on, short press this key to turn the auto shut-off function on or off. Flashlight: Short press to turn the flashlight on or off. -
Page 9: Screen Icons
OPTICAL FIBER TEST KIT Handheld Optical Light Source Icons According to different functions and specific operations, the corresponding icon will appear on the screen. When an icon appears, it means that the corresponding function has been opened or the corresponding operation has been completed. The main icons of the instrument are as follows: Automatic Shutdown: in the set time without any operation the instrument will automatically shut down... -
Page 10: Light Source
OPTICAL FIBER TEST KIT Handheld Optical Light Source Light Source Light source: used for telecommunication, CATV, LAN cable parameter test; The insertion loss, isolation and return loss of optical passive components are tested; Wavelength responsivity test of detector. Press this button to switch the output wavelength. When the wavelength is selected the laser source is turned on by default. -
Page 11: Sequencing And Tracking
OPTICAL FIBER TEST KIT Handheld Optical Light Source RJ45Sequence&Tracking RJ45Sequence: When testing, please use the remote module at the bottom of the instrument RJ45CableTracking: Once this function is turned on, touch the tested cable with the cable finder. You will then hear a continuous beeping sound which indicates the target cable. -
Page 12: System Settings
OPTICAL FIBER TEST KIT Handheld Optical Light Source System Settings System Settings: set the relevant information of this machine Up and down keys: Select the item to be set Left and right keys: Adjust the value of the item set Auto-Off: set the automatic shutdown time;... -
Page 13: Maintenance And Troubleshooting
OPTICAL FIBER TEST KIT Handheld Optical Light Source Maintenance and Troubleshooting Connectors The optical output interfaces must be kept clean during use and you should alwasy clean connectors prior to testing. Small amounts of dust on the connector will affect the accuracy of the measurement. -
Page 14: Warranty
OPTICAL FIBER TEST KIT Handheld Optical Light Source Warranty Caution: Do not attempt to repair as doing so will void warranty. This Optical Power Meter is covered by an 18 month warranty. 1. We warrant that this power meter will be free from defects in material and workmanship for 18 months. -
Page 16: Handheld Power Meter
Handheld Optical Power Meter HANDHELD OPTICAL POWER METER The SSF-TKITP-500 Power Meter adopts a 1mm large photosensitive surface detector. It’s 2.8-inch color LCD screen allows for ease of use. The design and layout both provide functionality and durability for use in the field. -
Page 17: Specifications
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Specifications Optical Power Meter Wave Range 800 ~ 1700 nm 800 ~ 1700 nm Connector Universal joint FC/SC/ST Detector Type InGaAs Power Range -70~+10 dBm -50~+26 dBm Uncertainty ±5% Standard Wave 850/980/1300/1310/1490/1550/1625/1650 nm Custom Wave Linear Display: 0.1% Display Resolution... -
Page 18: Ports
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Ports Left Panel LEFT RIGHT BOTTOM... - Page 19 OPTICAL FIBER TEST KIT Handheld Optical Power Meter Ports LEFT Charging indicator USB-C port RJ45 tracking port LCD screen BOTTOM RJ45 tracking remote module LED Flashlight VFL port OPM port Dust cover RIGHT RJ45 sequencing indicator Function keys...
-
Page 20: Function Keys
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Function Keys Power On/Off: Short press to turn the unit on or off. Auto Shut-Off Selection: After power is on, short press this key to turn the auto shut-off function on or off. Flashlight: Short press to turn the flashlight on or off Selection keys (up &... -
Page 21: Screen Icons
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Screen Icons According to different functions and specific operations, the corresponding icon will appear on the screen. When an icon appears, it means that the corresponding function has been opened or the corresponding operation has been completed. - Page 22 OPTICAL FIBER TEST KIT Handheld Optical Power Meter Operating the Optical Power Meter OPM: It is used for power test and optical insertion loss testing of all kinds of equipment and optoelectronic components. The test results can be saved and viewed. Set the current power as the reference value.
-
Page 23: Operating The Optical Power Meter
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Operating the Optical Power Meter UserDefinedWavelength: In OPM interface, long press λ to enter the user defined wavelength interface. Press the up and down keys to adjust the items, up to 50; Short press λ... -
Page 24: Sequencing And Tracking
OPTICAL FIBER TEST KIT Handheld Optical Power Meter RJ45Sequence&Tracking RJ45Sequence: When testing, please use the RJ45 remote module at the bottom of the OMP. RJ45CableTracking: After this function is started, touch the cable under test with the cable finder, a continuous “didi” sound, identifies the target cable. This equipment can withstand voltage and can be used for line searching directly on items such as Ethernet switches, routers and other weak current equipment with DC voltage less than 60V. -
Page 25: SystemSettings
OPTICAL FIBER TEST KIT Handheld Optical Power Meter System Settings System Settings: set the relevant information of this machine Up and down keys: Select the item to be set Left and right keys: Adjust the value of the item set Auto-Off: set the automatic shutdown time;... -
Page 26: Maintenance And Troubleshooting
OPTICAL FIBER TEST KIT Handheld Optical Power Meter Maintenance and Trouble Shooting Connectors The optical interfaces must be kept clean during use; not cleaning invalidates any test readings. Small amounts of dust on any connector or this equipment will affect the accuracy of the measurement. Clean connectors prior to mating with this equipment with included one- click type cleaners. -
Page 27: Warranty
This warranty only applies to the unit under normal operation without any damage or misuse/abuse. 3. The shipping costs incurred by repair or replacement for the unit under warranty will be shared by both parties. Scan for Software or go to https://cleerline.com/document/ software/...
