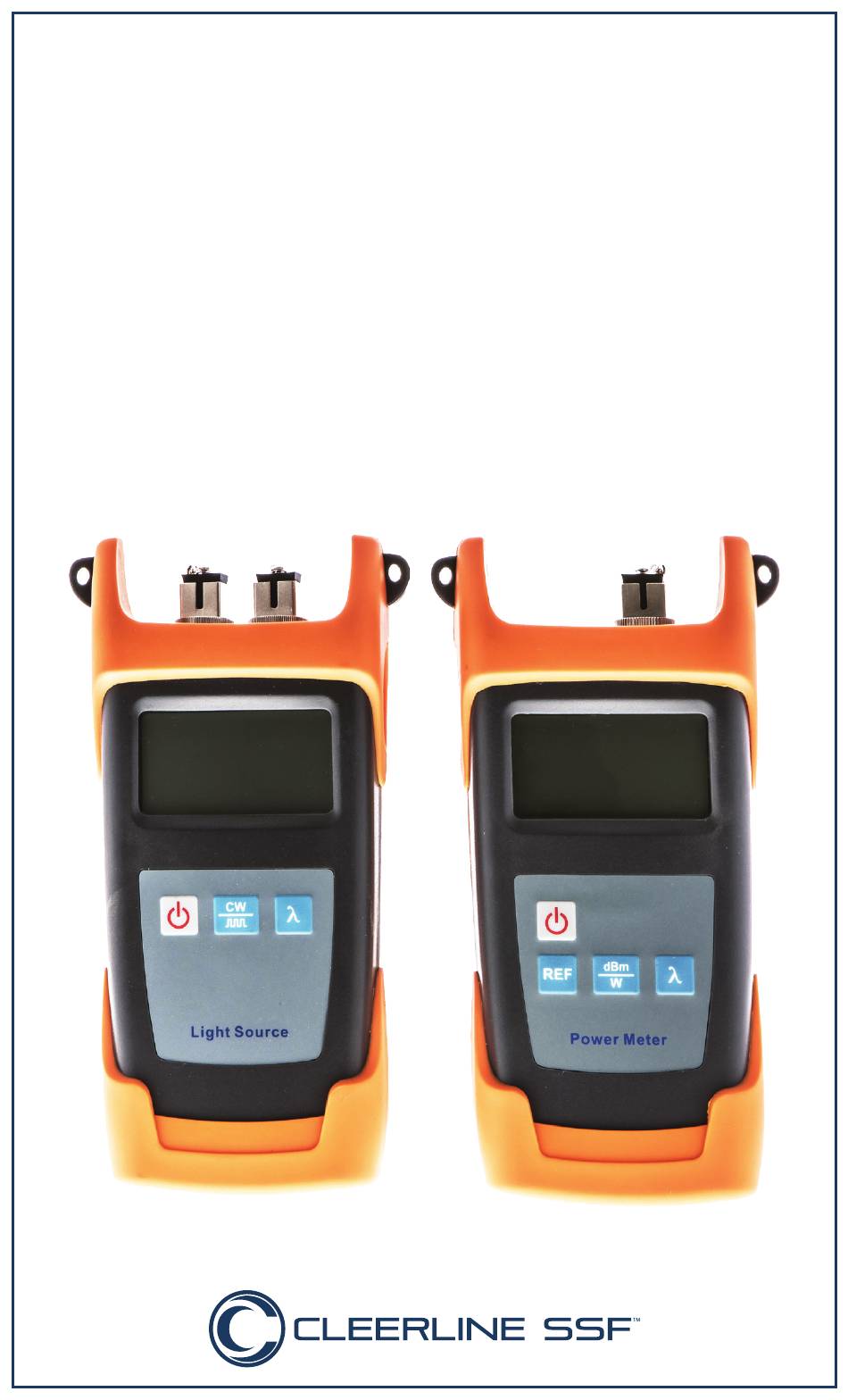

- Page 1 SSF-TKITE-300 SSF™ Basic Fiber Test Kit Manual...
- Page 2 Warning To avoid risk of eye damage, do not look into the laser beam when unit is on.
-
Page 3: Table Of Contents
Contents Handheld Optical Light Source Overview Functions Maintenance and Troubleshooting Warranty Handheld Optical Power Meter Overview Specifications Functions Maintenance and Troubleshooting Warranty... -
Page 4: Handheld Optical Light Source
Handheld Optical Light Source... -
Page 5: Overview
Handheld Optical Light Source Overview The SSF-FLS-300 optical light source provides single to quad wavelength output, including 850/1300nm wavelengths for multimode fiber and 1310/1550nm wavelengths for single mode fiber. Together with the SSF-FPM-300 power meter, this optical light source provides an accurate test solution for optical fiber networks. Features •... -
Page 6: Functions
Handheld Optical Light Source Functions Power On/Off: Press to turn the unit on or off. Auto Shut-Off Selection: Press this key quickly to turn the auto shut-off function on or off. When auto shut- off is active the unit will automatically shut off after ten minutes idle. - Page 7 Handheld Optical Light Source Battery Indicator: displays when battery power in use. The capacity shown will decrease with battery power. Replace batteries as needed. AC Adapter Indicator: displays when AC power in use Auto-off: the light source will automatically shut off when idle for ten minutes.
-
Page 8: Maintenance And Troubleshooting
Handheld Optical Light Source Maintenance and Troubleshooting 1. Always keep the connector ports of the power meter clean. 2. Use the regulated optical connector for testing. 3. Shut off the power and cover laser with dust-proof cap after use. 4. When using AC adapter, ensure power supply is within the required voltage range. -
Page 9: Warranty
Handheld Optical Light Source Warranty Caution: Do not attempt to repair as doing so will void warranty. This Optical Power Meter is covered by an 18 month warranty 1. We warrant that this power meter will be free from defects in material and workmanship for 18 months. -
Page 10: Handheld Optical Power Meter
Handheld Optical Power Meter SSF-TKITE-300 Optical Power Meter... -
Page 11: Overview
Handheld Optical Power Meter Overview The SSF-FPM-300 is a handheld optical power meter which can be used for absolute optical power measurements and relative loss measurements on both SM and MM fibers. Its Ø1.0mm photosensitive area photodiode significantly improves stability and provides accurate measurements. -
Page 12: Specifications
Handheld Optical Power Meter Specifications Wavelength (nm) 800 - 1700nm Detector Type InGaAs Detector Size Ø 1.0mm Measurement Range (dBm) -70 - +10 -50 - +30 Uncertainty ±5% Calibrated Wavelength (nm) 850, 1300, 1310, 1490, 1550, 1625 Resolution (dB) 0.01 FC (interchangeable SC,ST) as well as Optical Connector 2.5mm universal... -
Page 13: Functions
Handheld Optical Power Meter Functions Power On/Off: Press to turn the unit on or off. Auto Shut-Off Selection: Press this key quickly to turn the auto shut-off function on or off. When auto shut- off is active the unit will automatically shut off after ten minutes idle. - Page 14 Handheld Optical Power Meter Battery Indicator: displays when battery power in use. The capacity shown will decrease with battery power. Replace batteries as needed. AC Adapter Indicator: displays when AC power in use Auto-off: the power meter will automatically shut off when idle for ten minutes.
-
Page 15: Maintenance And Troubleshooting
Handheld Optical Power Meter Maintenance and Troubleshooting 1. Always keep the connector ports of the power meter clean. 2. Use the regulated optical connector for testing. 3. Shut off the power and cover laser with dust-proof cap after use. 4. When using AC adapter, ensure power supply is within the required voltage range. -
Page 16: Warranty
Handheld Optical Power Meter Warranty Caution: Do not attempt to repair as doing so will void warranty. This Optical Power Meter is covered by an 18 month warranty 1. We warrant that this power meter will be free from defects in material and workmanship for 18 months. - Page 17 Handheld Optical Power Meter...
