TGW420_(en-en)_QG.fm 1 ページ ２０１９年１２月１２日 木曜日 午後５時３９分

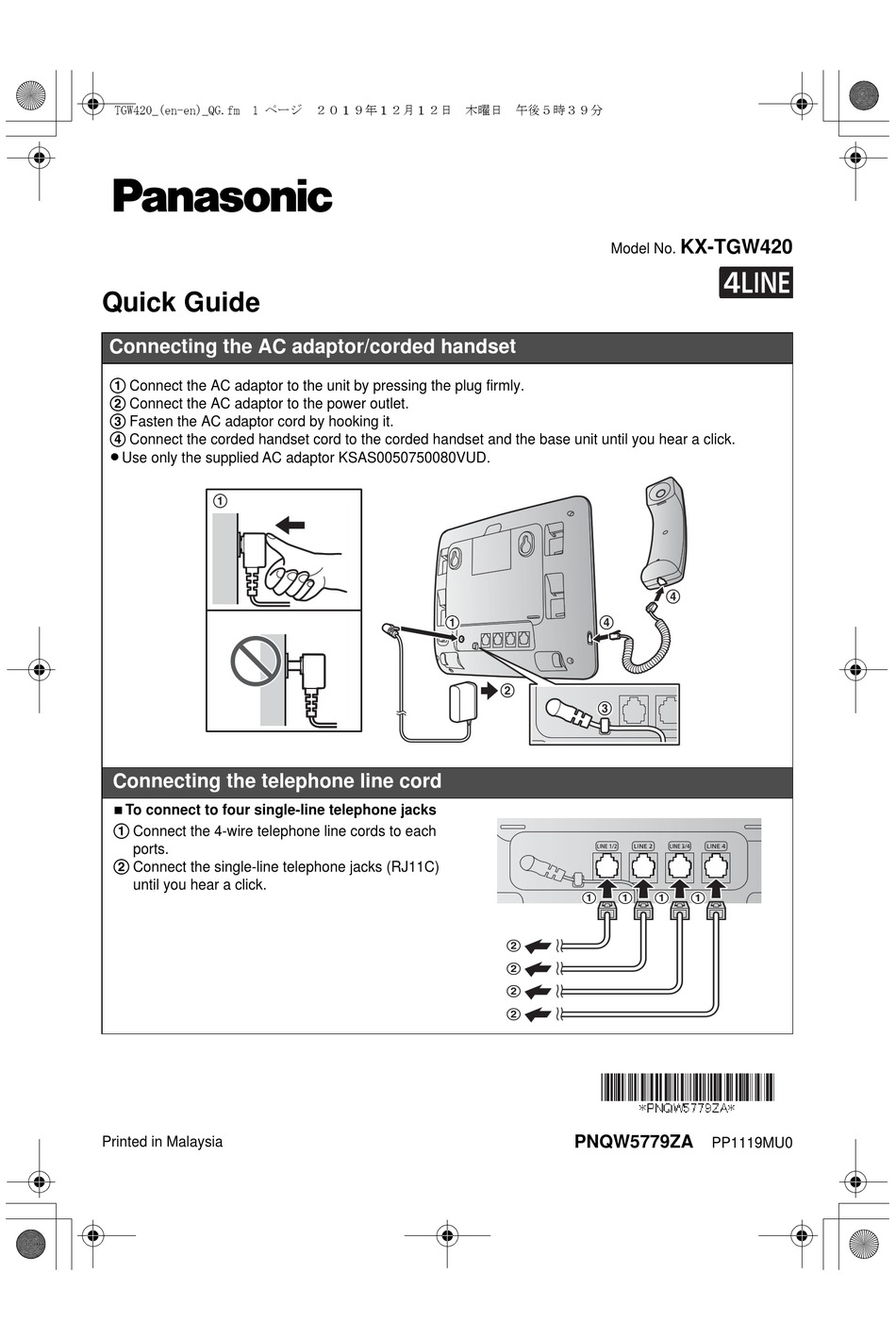

Quick Guide
Connecting the AC adaptor/corded handset
1
Connect the AC adaptor to the unit by pressing the plug firmly.
2
Connect the AC adaptor to the power outlet.
3
Fasten the AC adaptor cord by hooking it.
4
Connect the corded handset cord to the corded handset and the base unit until you hear a click.
L Use only the supplied AC adaptor KSAS0050750080VUD.
1
Connecting the telephone line cord
N To connect to four single-line telephone jacks
1
Connect the 4-wire telephone line cords to each
ports.
2
Connect the single-line telephone jacks (RJ11C)
until you hear a click.
Printed in Malaysia
Model No.
1
4
2
3
1
2
2
2
2
PNQW5779ZA
KX-TGW420
4
1
1
1
PP1119MU0
Advertisement
Related Manuals for Panasonic KX-TGW420
Summary of Contents for Panasonic KX-TGW420
- Page 1 TGW420_(en-en)_QG.fm 1 ページ ２０１９年１２月１２日 木曜日 午後５時３９分 KX-TGW420 Model No. Quick Guide Connecting the AC adaptor/corded handset Connect the AC adaptor to the unit by pressing the plug firmly. Connect the AC adaptor to the power outlet. Fasten the AC adaptor cord by hooking it.
- Page 2 TGW420_(en-en)_QG.fm 2 ページ ２０１９年１２月１２日 木曜日 午後５時３９分 Connecting the telephone line cord N To connect to two 2-line telephone jacks Connect the 4-wire telephone line cords to LINE1/2 and LINE 3/4 port. Connect the 2-line telephone jacks (RJ14C) until you hear a click. If you subscribe to a DSL/ADSL service, attach a DSL/ADSL filter to the telephone line between the base unit and each telephone line jack.
- Page 3 TGW420_(en-en)_QG.fm 3 ページ ２０１９年１２月１２日 木曜日 午後５時３９分 Recording your greeting message of the answering system You can record your own greeting message instead of using a pre-recorded greeting message. {Menu} {r}: “Answering System” s {Select} {r}: “General Greeting” or “Announce Only” s {Select} {r}: “Record Greeting”...
- Page 4 L To purchase additional accessory unit(s) (KX-TGWA40/KX- TGWA41), please visit: http://shop.panasonic.com/support TTY users (hearing or speech impaired users) can call 1-877-833- 8855. How can I answer a call waiting call L Press {Flash} when you hear the call waiting tone.
