Integrated Filter Installation - Polaris PG10/GHX Instruction Manual

Nominal Pipe Flue Outlet
Diameter Adapter
2" 2PPS-AD
3" 3PPS-AD
Nominal Pipe Flue Outlet
Diameter Adapter
ISAGL
2"
0202
ISAGL
3"
0303
Table 6A. Elevations up to 2000 Ft.
Table 6B. Elevations from 2000 Ft. to 7,700 Ft.
1. Determine termination type and pipe size.
2. Determine number of elbows in exhaust pipe. Do not include the
elbows in the termination or the condensate trap. Corresponding
number in Table 6 indicates the maximum length of exhaust pipe.
3. Determine number of elbows in inlet pipe. Do not include the
elbows in the termination. The corresponding number in Table 6
indicates the maximum length of inlet pipe.
NOTE: Use Table 6A at elevations up to 2000 ft (610 m) and use
Table 6B at elevations from 2000 ft (610 m) to 7,700 ft (2,347 m).
IMPORTANT: Do not use vent elbows in this vent pipe installation.
See Figure 11.
Table 4.
Adapter Ring 90 Degree
Connector Connector Elbow
PPS-PAC 2PPS-LB 2PPS-E90
PPS-PAC 3PPS-LB 3PPS-E90
Table 5.
Centrotherm InnoFlue SW
Adapter Ring 90 Degree
Connector Connector
IAFC02 IANS02 ISELL0287
IAFC03 IANS03 ISELL0387
M & G Duravent PolyPro
Vent Material
2PPS
2PPS-E90 & 2PPS-BG for Intake (Direct Vent only)
3PPS
3PPS-E90 & 3PPS-BG for Intake (Direct Vent only)
Vent Material
Elbow
ISVL02
ISELL0287 & IASPP02 for Intake (Direct Vent only)
ISVL03
ISELL0387 & IASPP03 for Intake (Direct Vent only)
Correct Fittings
90° Long Sweep
Elbow
45° Sweep Elbow
Figure 11. Correct and Incorrect Pipe Fittings

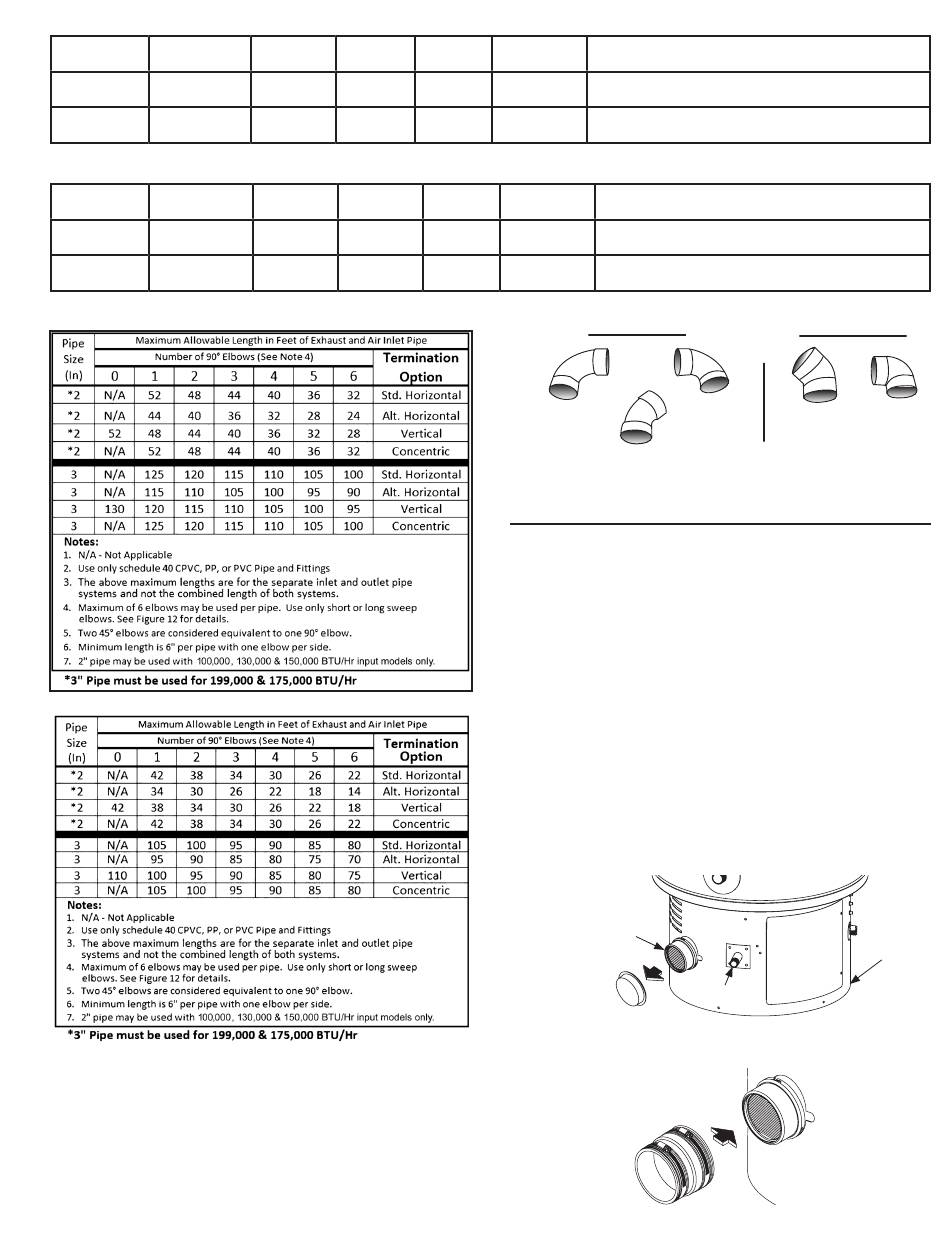

INTEGRATED FILTER INSTALLATION

The air intake filter included with the unit must be installed
according to the installation instructions supplied with the filter.
Installation steps are shown in Figures 12-15.
When installing the adaptor rubber boot, note the following:
• Remove and discard the plastic cap from the outer clamshell
housing. See Figure 12.
• To connect heater to the air inlet, use the vent adaptor
rubber boot provided in the base skirt. The adaptor rubber
boot is designed for 3" venting (Figure 13).
NOTE: if there is a need for 2" venting, then use plastic pipe
fittings to transition down.
• Loosen the hose clamp at the adaptor rubber boot and slide
the plastic piping into the adaptor rubber boot. With piping in
place, tighten the hose clamp. Install a 3" x 3" x 2" drain/waste/
vent fitting to trap airborne particulates. See Figure 14.
NOTE: If piping has been previously cut with a saw, be sure to
remove all burrs and plastic shavings from the piping before installing.
NOTE: The heater must never be operated without the filter
media installed.
Outer Clamshell
Housing With Filter
Remove
Plastic Cap
Figure 12. Remove Plastic Cap
Adaptor Rubber
Figure 13. Adapter Rubber Boot
23
Terminal(s)
2PPS & 2PPS-BG for Exhaust;
3PPS & 3PPS-BG for Exhaust;
Terminal(s)
ISVL02 & IASPP02 for Exhaust;
ISVL03 & IASPP03 for Exhaust;
Incorrect Fittings
90° Short
45° Vent
Sweep
Elbow
Elbow
Gas Piping
Push On &
Tighten Clamp
Boot
Outer Clamshell
Housing
90° Vent
Elbow
Base Skirt
