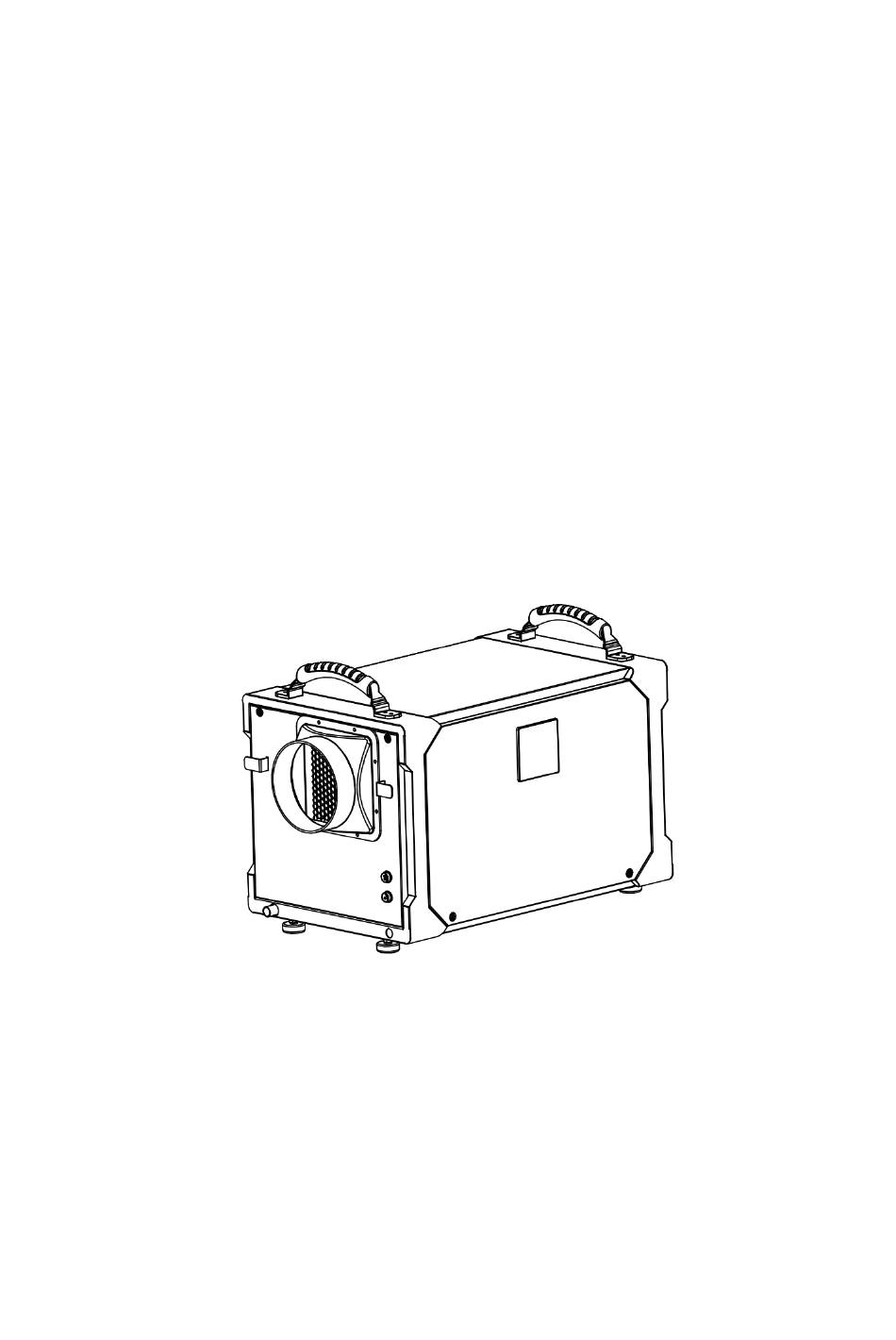

MOISWELL Dehumidifier
User Manual
Model No.: Defender X145
Please read this user manual before operating and save for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Defender X145 and is the answer not in the manual?

Questions and answers

Summary of Contents for MOISWELL Defender X145

  • Page 1 MOISWELL Dehumidifier User Manual Model No.: Defender X145 Please read this user manual before operating and save for future reference.
  • Page 2 Welcome Thanks for choosing MOISWELL dehumidifier! Moiswell is offering high-quality commercial and industrial dehumidifier for sales including in both vertical and horizontal orientations. These commercial dehumidifiers reduce humidity levels quickly, being particularly ideal for excess water removal, high-speed construction drying, water damage restoration tasks. With an onboard...
  • Page 3 BEFORE FIRST USE Please leave the dehumidifier sitting outside the box for 24 HOURS before plugging it in. The dehumidifiers may have been tilted or placed upside down during shipping. Leave the dehumidifier sitting for 24 hours so the oil in the compressor can settle from the move, not doing so can affect the performance or lifespan of the dehumidifier.
  • Page 4: Table Of Contents

    CONTENTS SAFETY INFORMATION ..................................1 PARTS IDENTIFICATION ..................................2 OPERATION INSTRUACTIONS ................................3 1. Position Your Dehumidifier .................................... 3 2. Connect the Drain Hose ....................................3 3. Plug in ............................................4 4. Understand the Control Panel..................................4 What is on thn LCD Screen? ..................................5 Understand the Control Buttons................................
  • Page 5: Safety Information

    SAFETY INFORMATION To prevent injury and property damage, the following instructions must be followed when using the dehumidifier. ·Install the dehumidifier properly on a floor, table, or shelf that is level and strong enough to support it. ·Do not place or use the dehumidifier near a heater, flammable gas or combustibles, such as gasoline, benzene, thinner;...
  • Page 6: Parts Identification

    PARTS IDENTIFICATION NOTE: DO NOT OBSTRUCT THE AIR INLET OR OUTLET.
  • Page 7: Operation Instruactions

    OPERATION INSTRUACTIONS 1. Position Your Dehumidifier ·Install the dehumidifier horizontally to minimize vibration and or noise. ·You can adjust the feet to level the dehumidifier. To adjust the feet, ·Turn the nut in a clockwise direction to get the nut loosen; ·Turn the foot in a clockwise direction to get the foot down or turn the foot in a counterclockwise direction to get the foot up;...
  • Page 8: Plug In

    (Ensure there are no kinks or other obstructions that will stop the water to flow.) 3. Plug in IMPORTANT Please let the dehumidifier sit outside the box for hours before initial plugging in. ·Uncoil the power cord and plug it firmly into a properly grounded 110-120 volt AC outlet.
  • Page 9: What Is On Thn Lcd Screen

    What is on the LCD Screen? Big Font Digital Number (43 on the above illustration) is humidity percentage reading of the inlet air that the dehumidifier detects which is similar to the room humidity level. When you are pressing the ▲ or ▼ button to set a desired humidity percentage value, the big font digital number will turn to display the setting value and flash.
  • Page 10: Understand The Control Buttons

    (inlet humidity reading) is 3% lower than the set humidity. When you see the "wet controller" icon illuminating while setting up, it typically means the set humidity level is not 3% lower than the inlet humidity reading. Please make sure the set humidity value is at least 3% (10% recommended) lower than the inlet humidity reading.
  • Page 11: General Operation Instructions

    seconds to enter Timer setting system. General Operation Instructions (1) Turn the Dehumidifier On Press the ON/OFF button to turn the dehumidifier on. Typically, the dehumidifier will run in the default setting with set humidity 30%. (2) Set a Desired Humidity Percentage Value Press ▲...
  • Page 12: Water Drainage

    To protect the compressor, the fan will continue to operate for 5 seconds after the dehumidifier has shut off. So please do not disconnect the power cord to force the dehumidifier to stop. Always use the power button. (4) Water Drainage During normal operation, this dehumidifier will automatically drain by the force of gravity.
  • Page 13: Connect The Dehumidifier To An External Pump To Drain

    Note: ·Before entering the AUTO ON TIMER setting, make sure power is being supplied to the dehumidifier. ·For the AUTO ON setting, please turn on the dehumidifier to select a desired humidity level. Otherwise, the humidity maintained will be the same as the previous setting. ·...
  • Page 14: Smart Functions

    external pump starts to drain the water out. After the pump drained, the dehumidifier will automatically restart. When the dehumidifier displays an E5 error after confirming the compatibility with the pump signal, it typically because the drain hose or the water pump is blocked. Please turn off the dehumidifier and troubleshoot, and then restart the dehumidifier after troubleshooting.
  • Page 15: Auto Defrost

    LOW-TEMPERATURE PROTECTION SYSTEM where the LCD screen displays an "LL" message and the dehumidifier stops working. Note: When you see HH or LL message under normal circumstances, please contact the customer service at service@moiswell.com to get technical support.
  • Page 16: Maintenance

    MAINTENANCE To avoid possible electric shock, ensure to turn the dehumidifier off and disconnect the plug from the power source before performing any cleaning or maintenance. 1. Cleaning the Dehumidifier Clean the dehumidifier housing with a soft damp cloth. Do not submerge or place water on the dehumidifier or control panel.
  • Page 17: Troubleshooting

    ·Press any button on the control panel to eliminate the alarm. ·Turn off the dehumidifier and unplug it to check if any obstructions. ·Restart the dehumidifier 10 minutes later. If the ERROR code does not disappear after the restart, immediately contact MOISWELL customer service at service@moiswell.com...
  • Page 18: Trouble Shooting

    The below chart will help you solve common problems that may occur. If the problem you come across can not be fixed after troubleshooting or the problem is not listed in the below troubleshooting chart, please contact MOISWELL customer service to obtain professional support.
  • Page 19: Parts List

    Parts List 1. Parts List Picture Description Quantity Air Outlet Duct Collar (Pack behind the Access 1 pcs Door) External Pump Signal 1 pcs Cable Drain Hose 1 pcs M4 Screws (to install 4 pcs outlet duct collar) 2. Install the Outlet Duct Collar Make sure your dehumidifier is turned off and unplugged before the following operations:...
  • Page 20: Warranty

    WARRANTY MOISWELL warrants to the original purchaser that this MOISWELL product is free from manufacturing defects in material or workmanship for the limited warranty period of: 2 Years Full Warranty (1 year standard + 1 year with registration) This warranty starts from the date of purchase and covers all parts and labor to repair or replace any part of the product that proves to be defective in materials or workmanship.
